Some vans arrive needing help. Others arrive needing saving. This Mazda Bongo was one of the most challenging projects we have taken on recently, a van so weakened by corrosion that it struggled to hold itself together. But the owner loved it and refused to let it be scrapped. They wanted their Bongo back on the road where it belonged. That determination set the tone for one of the most dramatic transformations we have done this year.

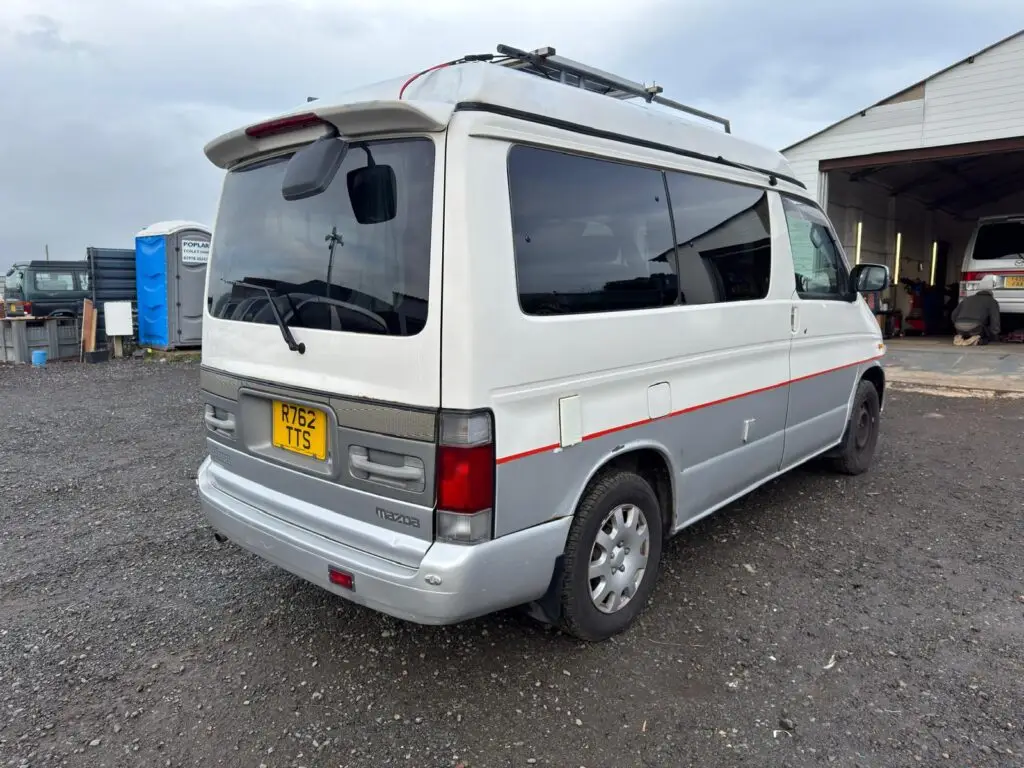

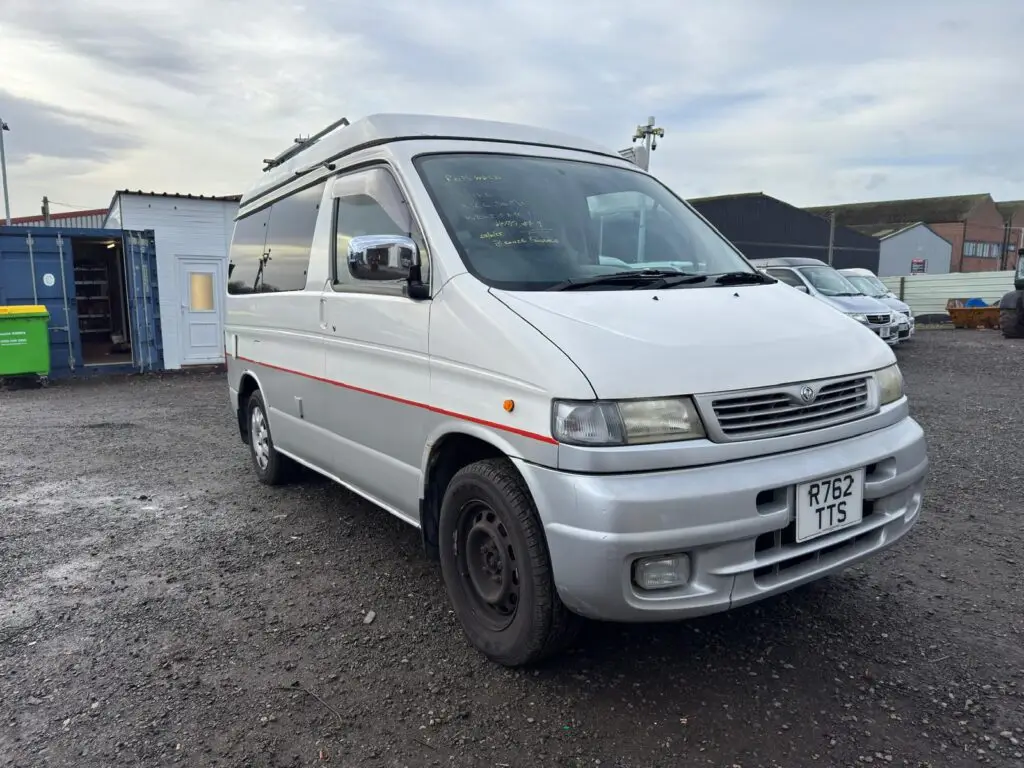

When It First Rolled In

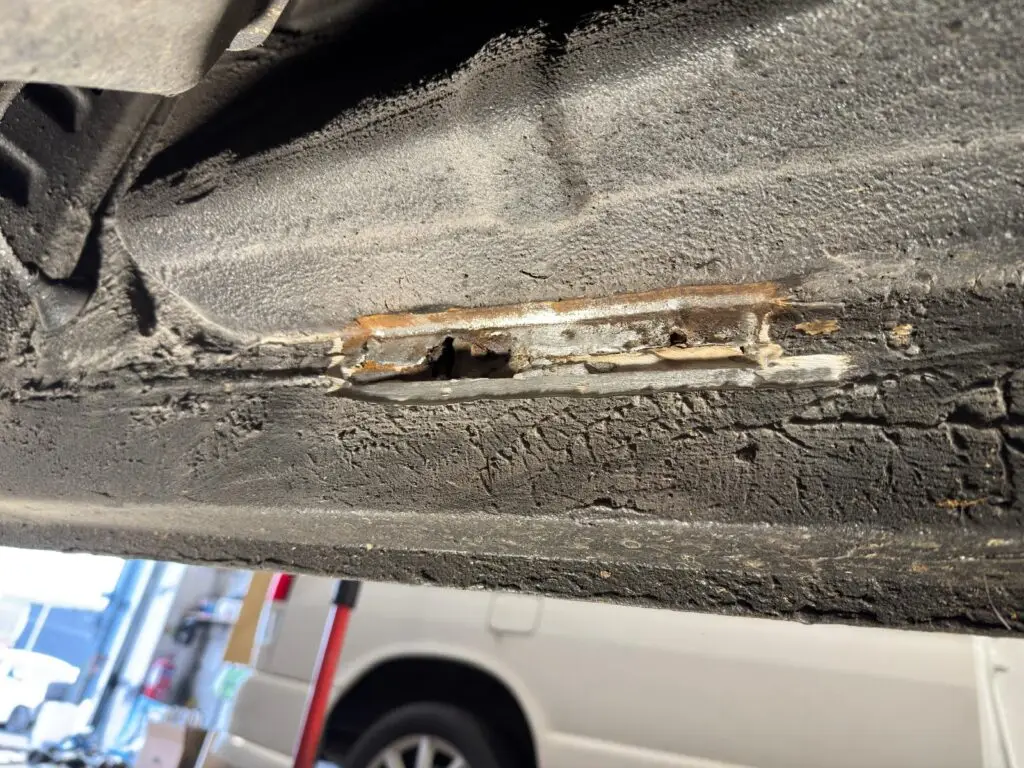

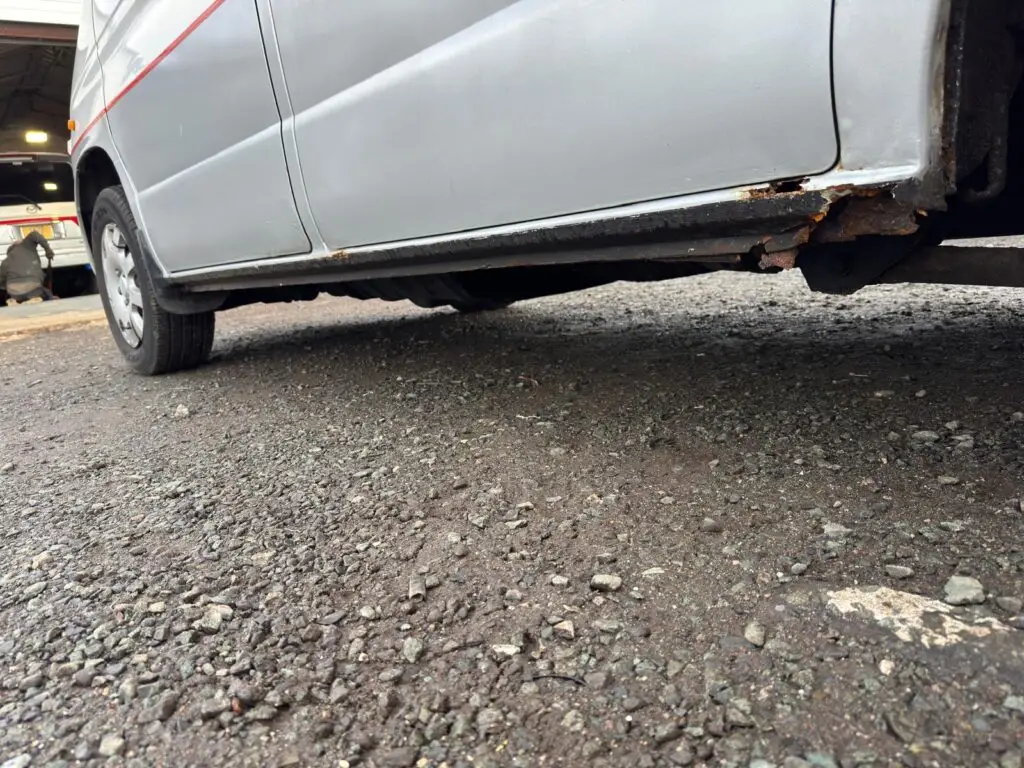

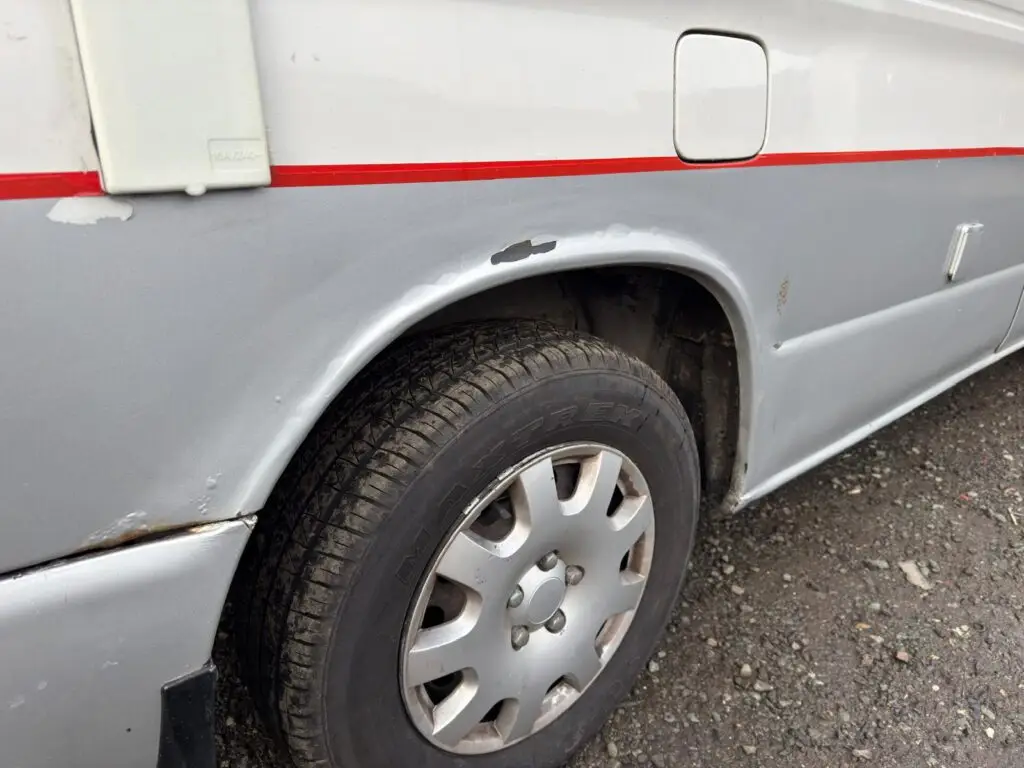

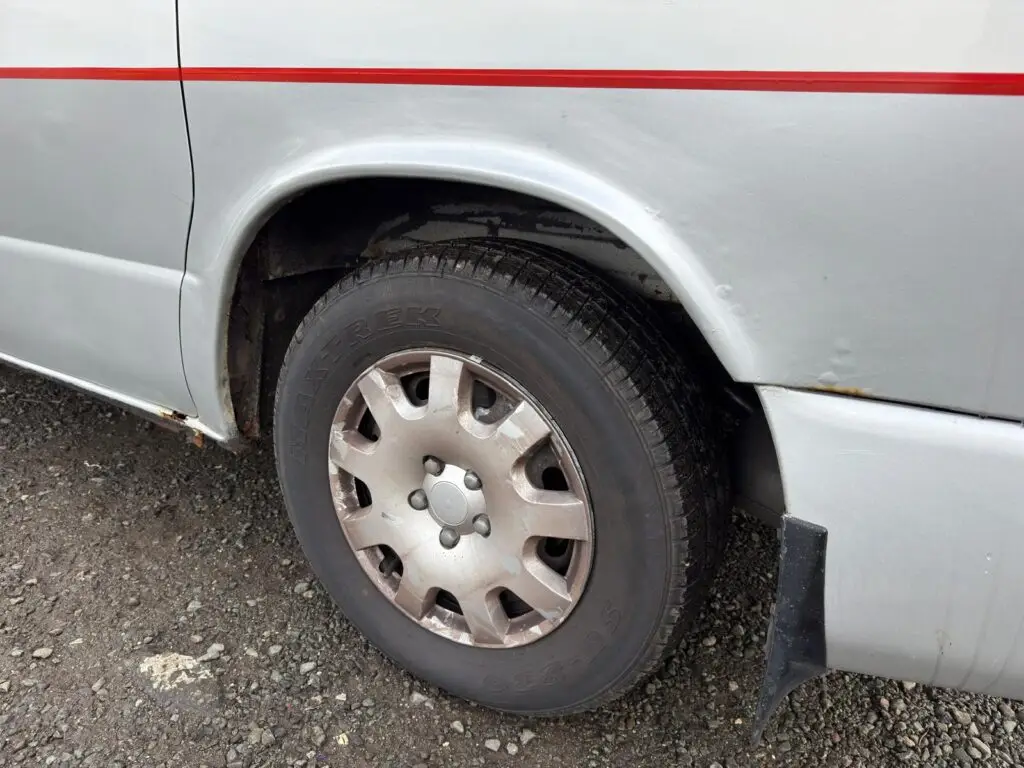

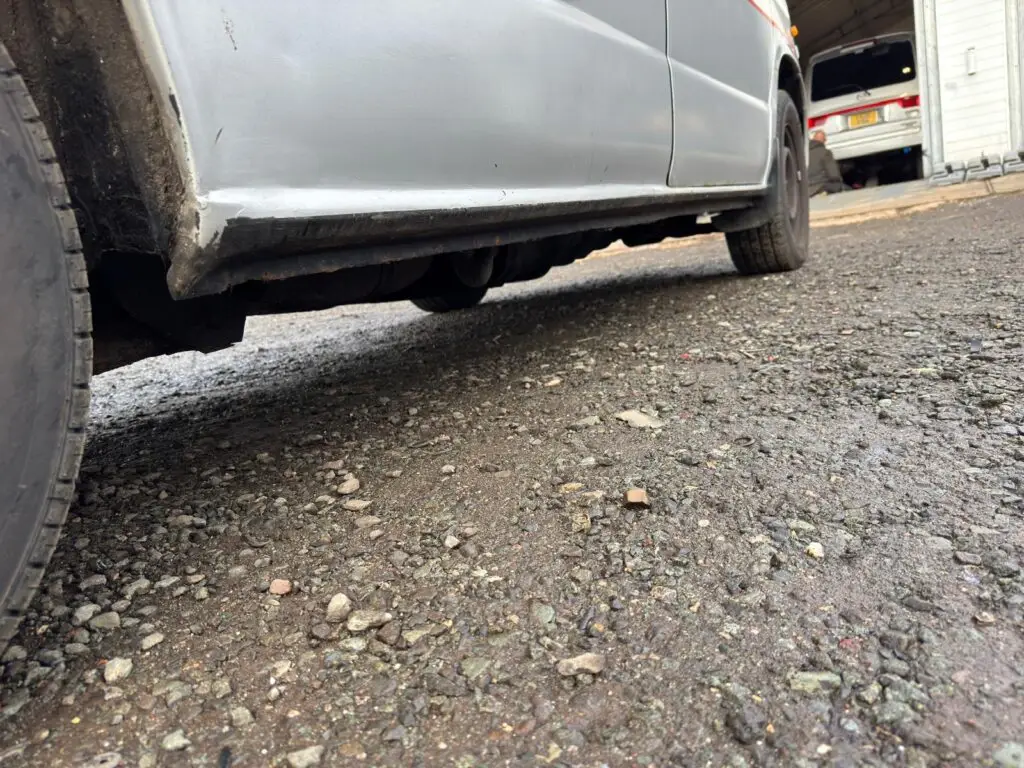

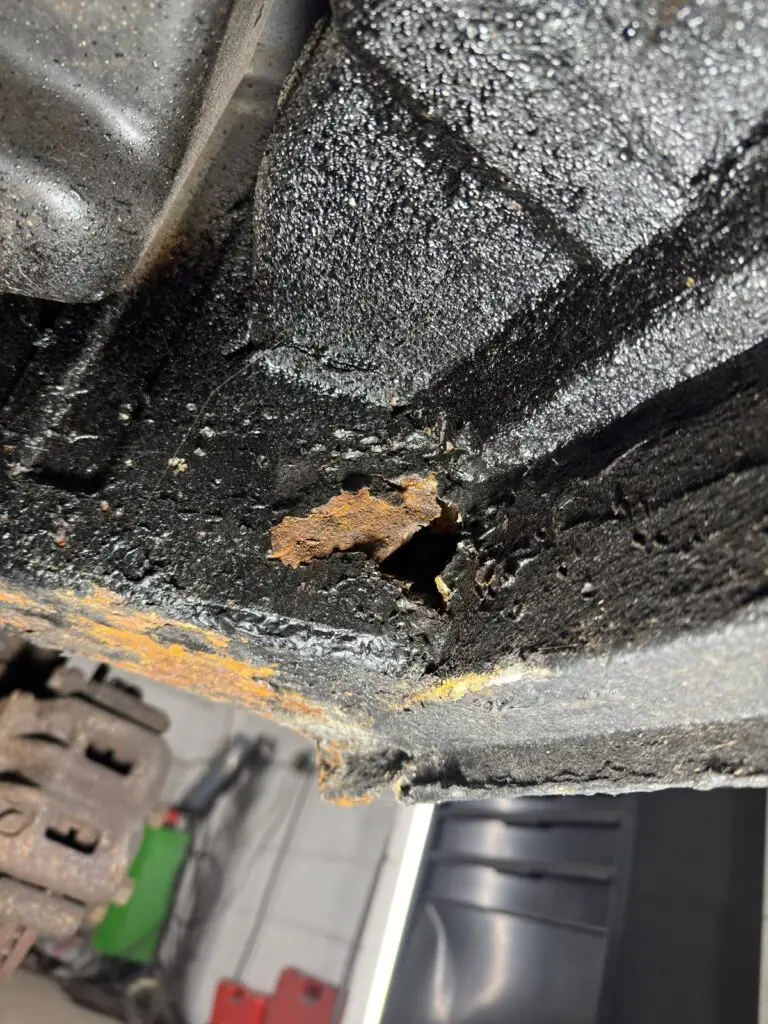

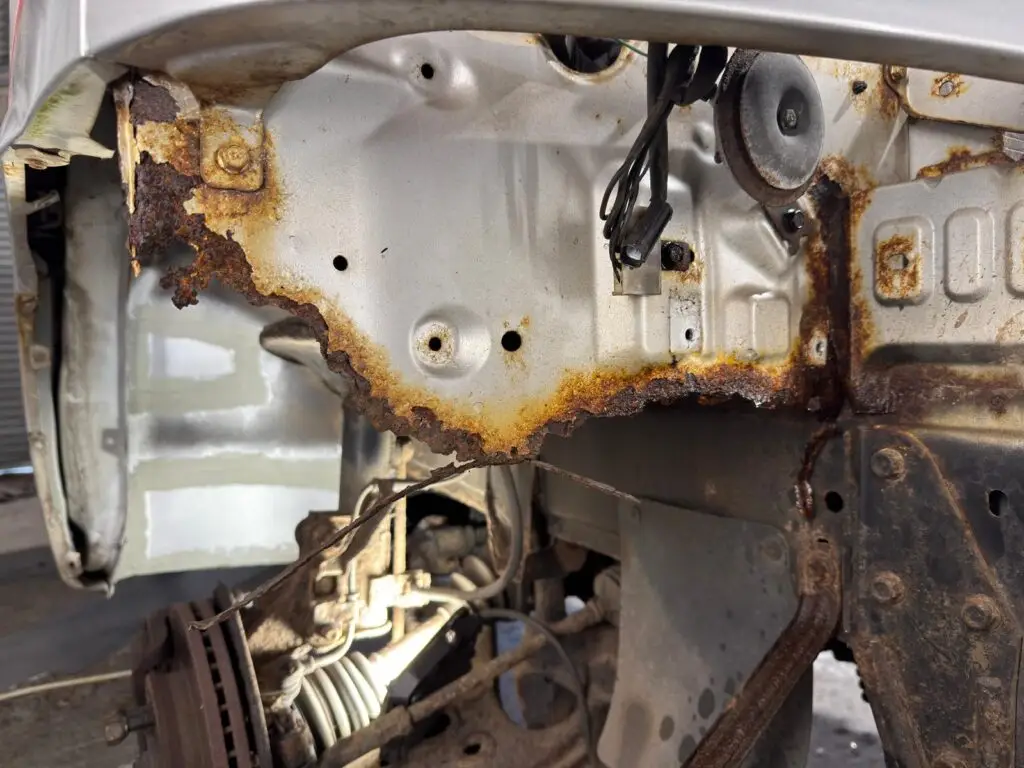

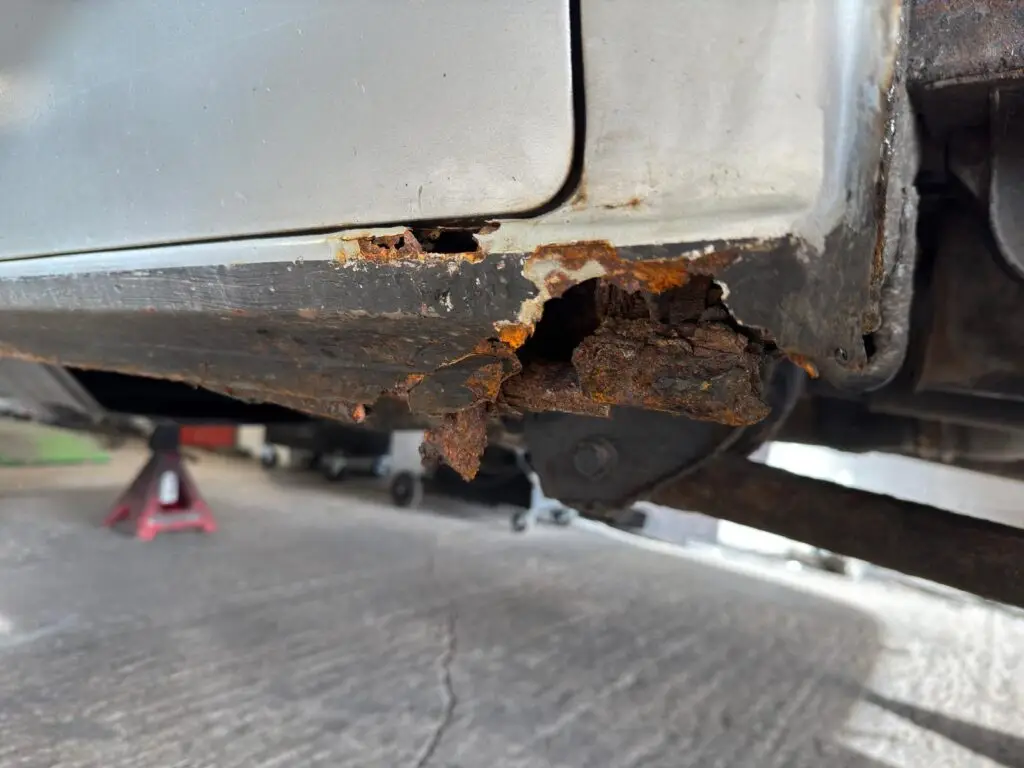

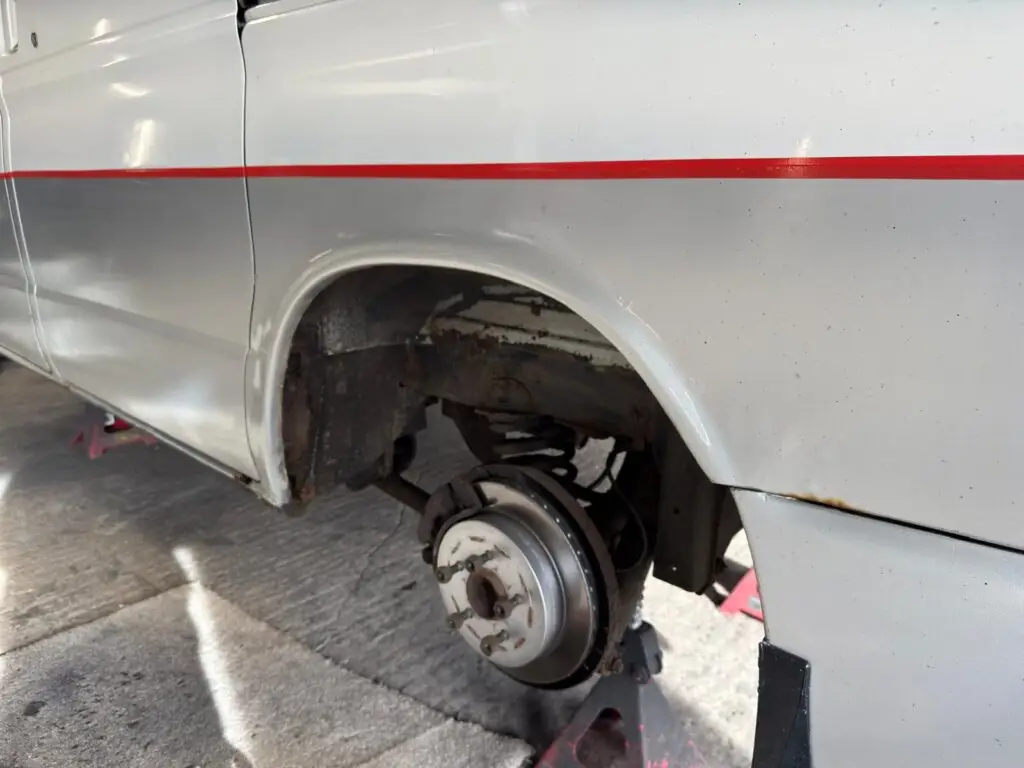

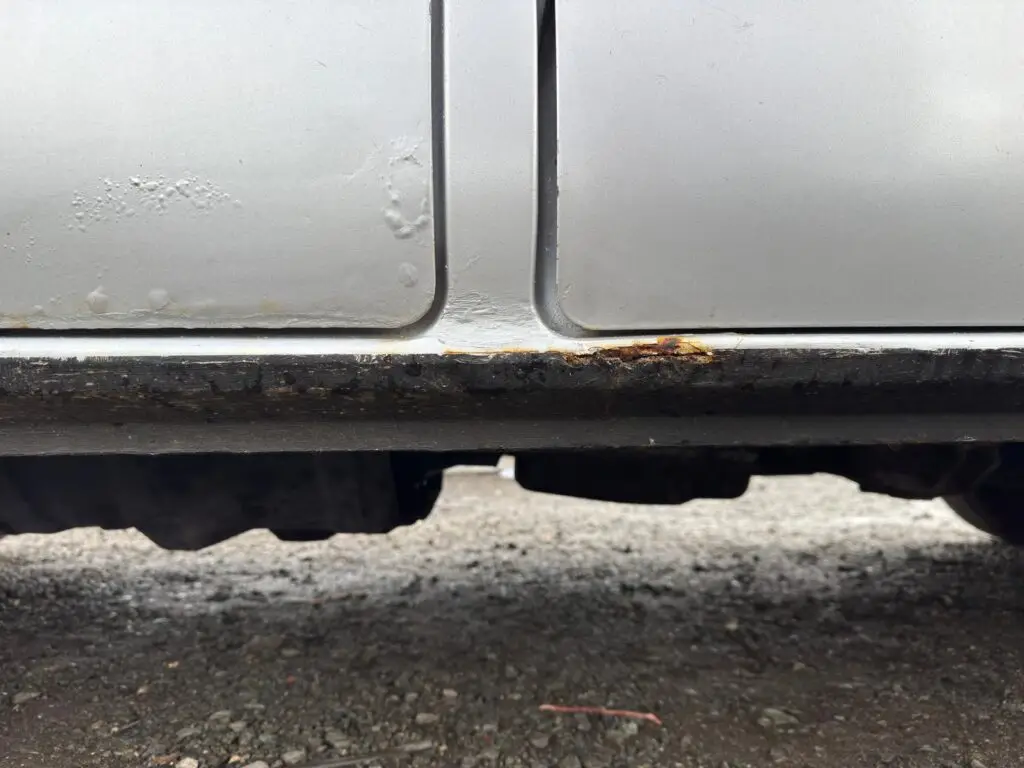

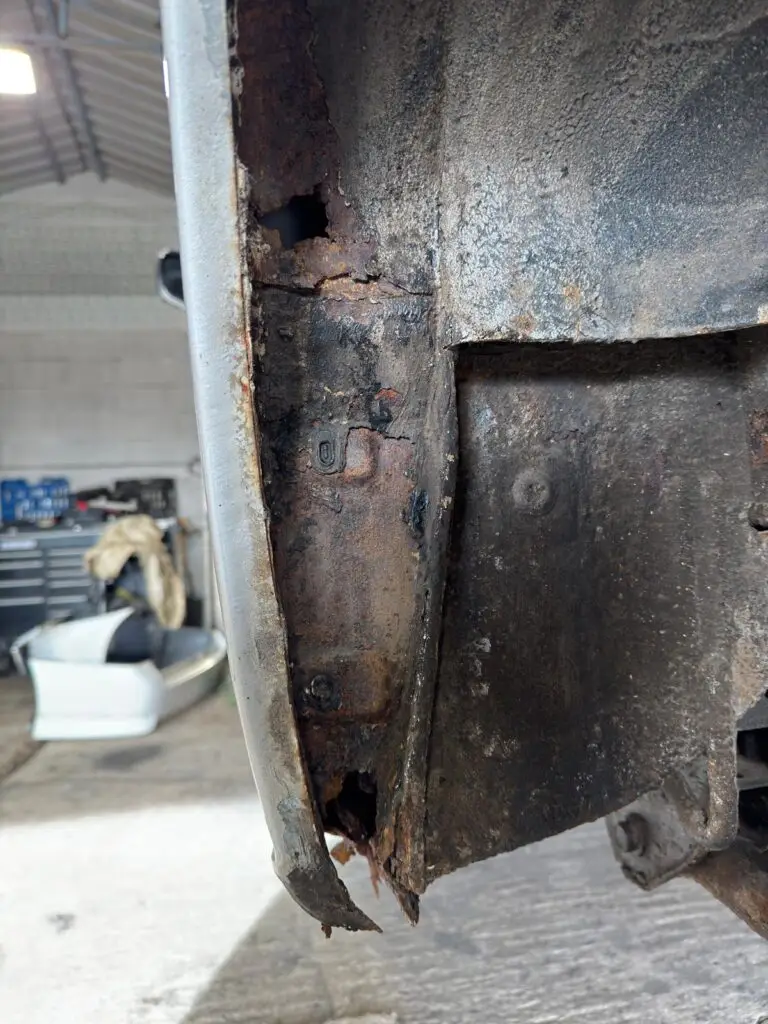

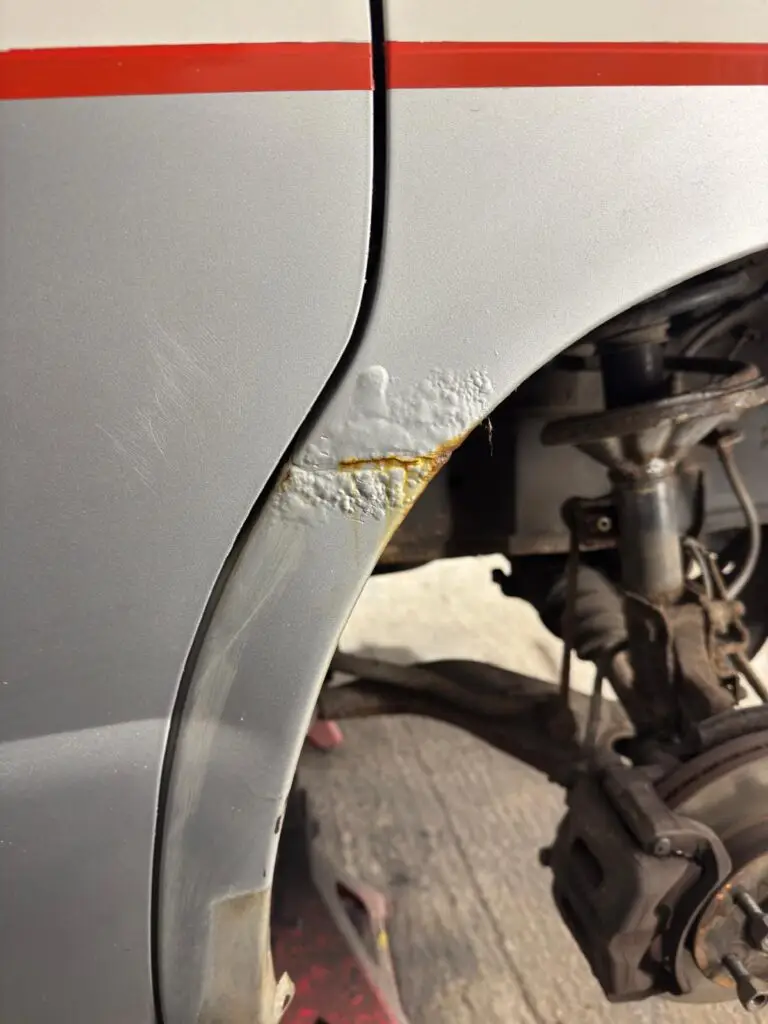

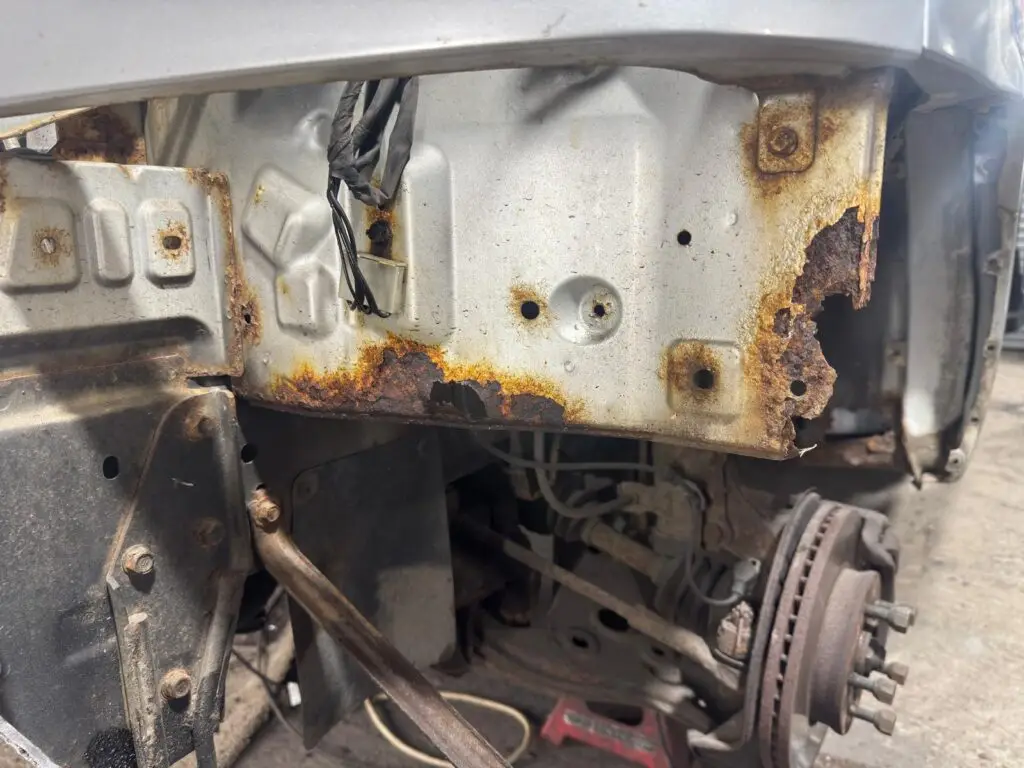

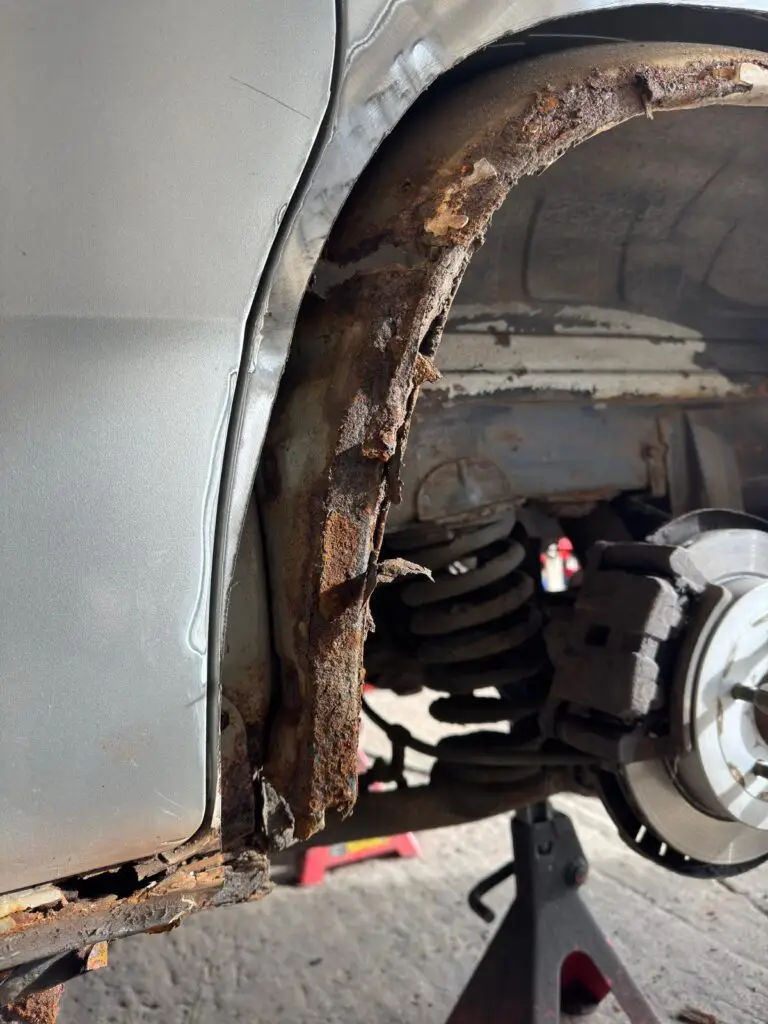

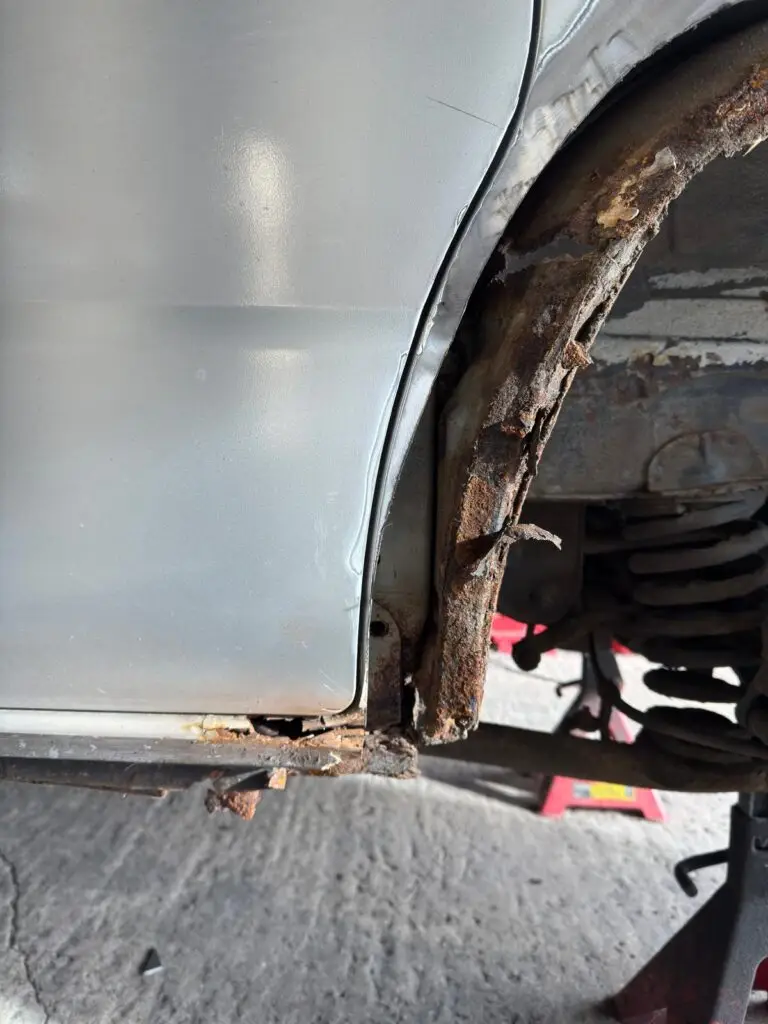

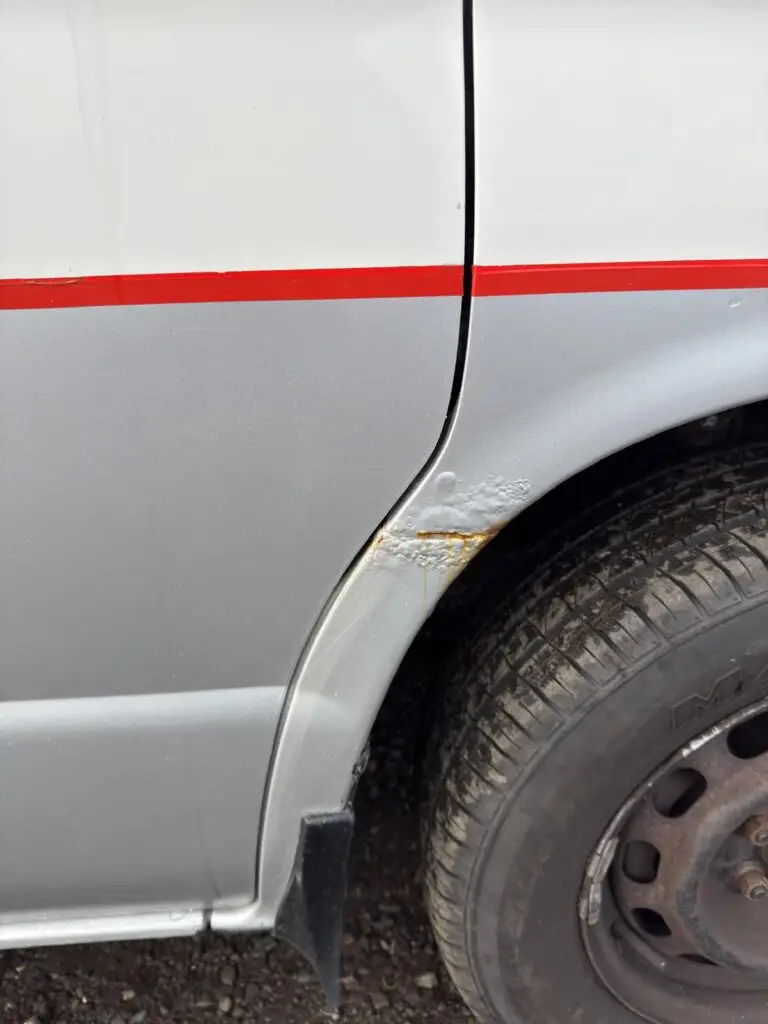

The moment the Bongo came through the gate, we could see the scale of the problem. Rust had taken hold of every major structural area. Suspension mounts were weak. Arches had rotted through. The sills were crumbling. Cross members were flaky and soft. Even the headlamp panels were splitting away from their supports.
It was the kind of corrosion that does not happen overnight. It creeps in over the years, hiding behind trims and underseal until it finally becomes impossible to ignore. By the time it reached us, this van had no chance of passing an MOT without a complete rebuild.
This was not a tidy restoration. This was a rescue mission.
Mazda Bongo severe corrosion restoration

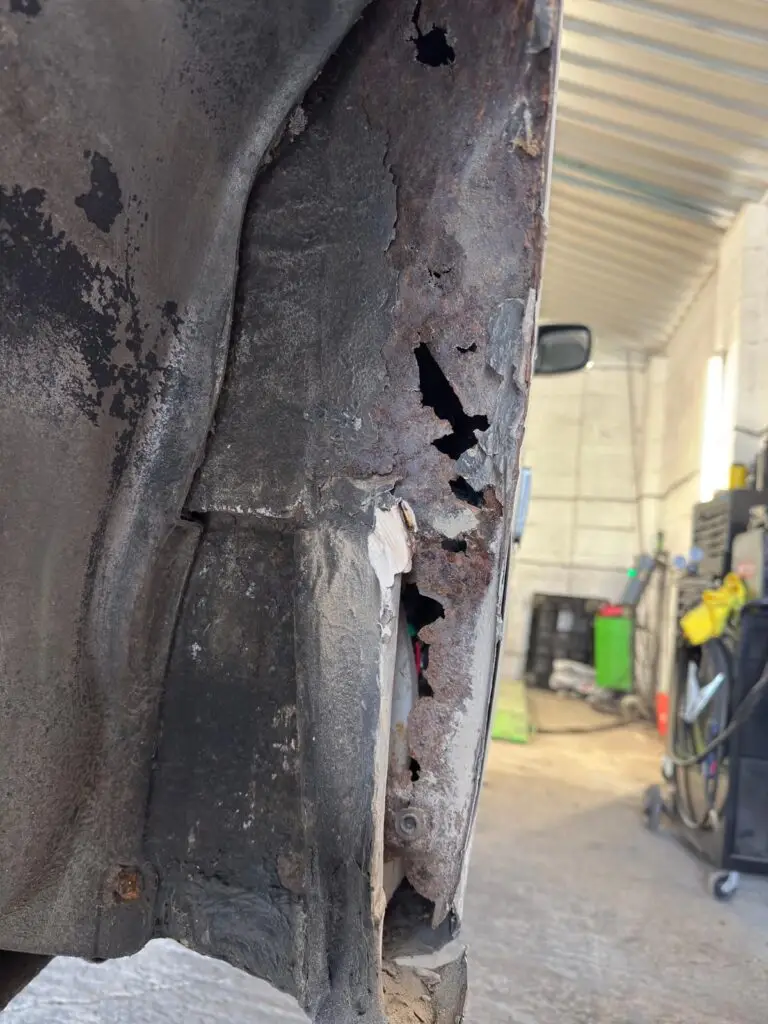

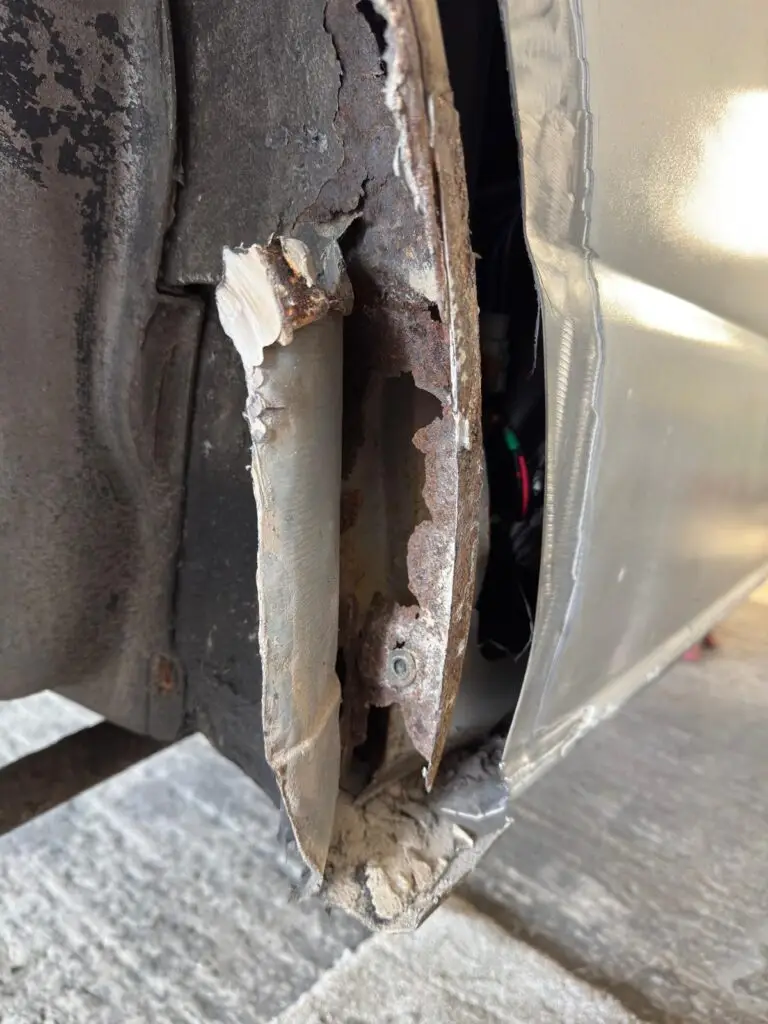

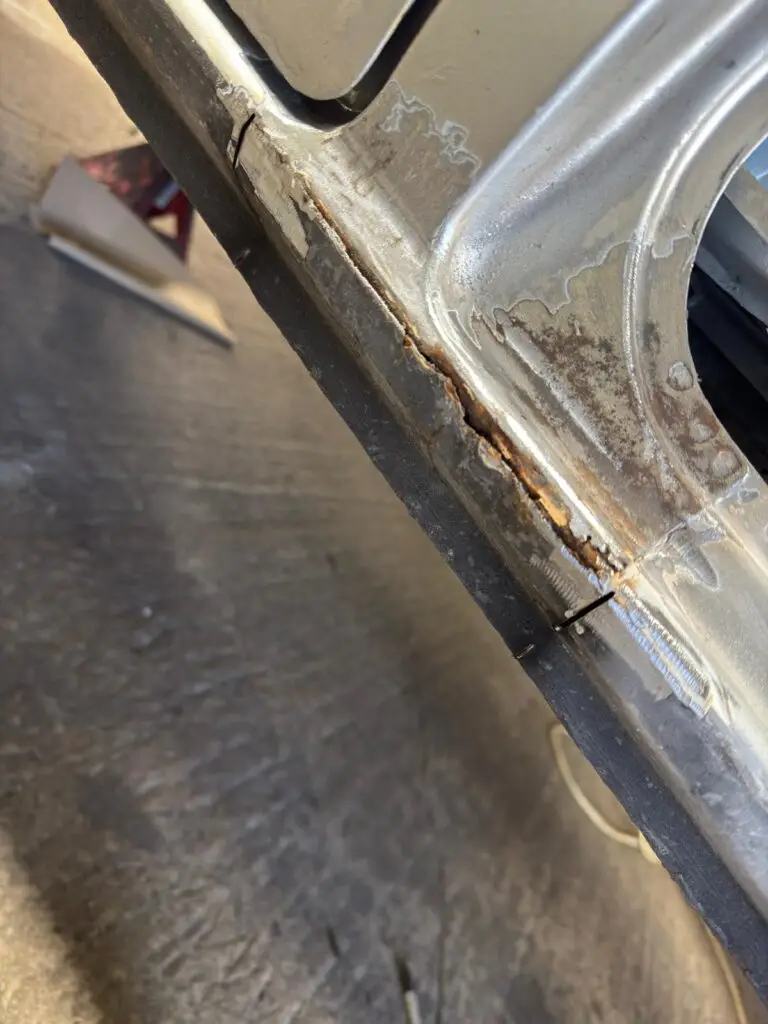

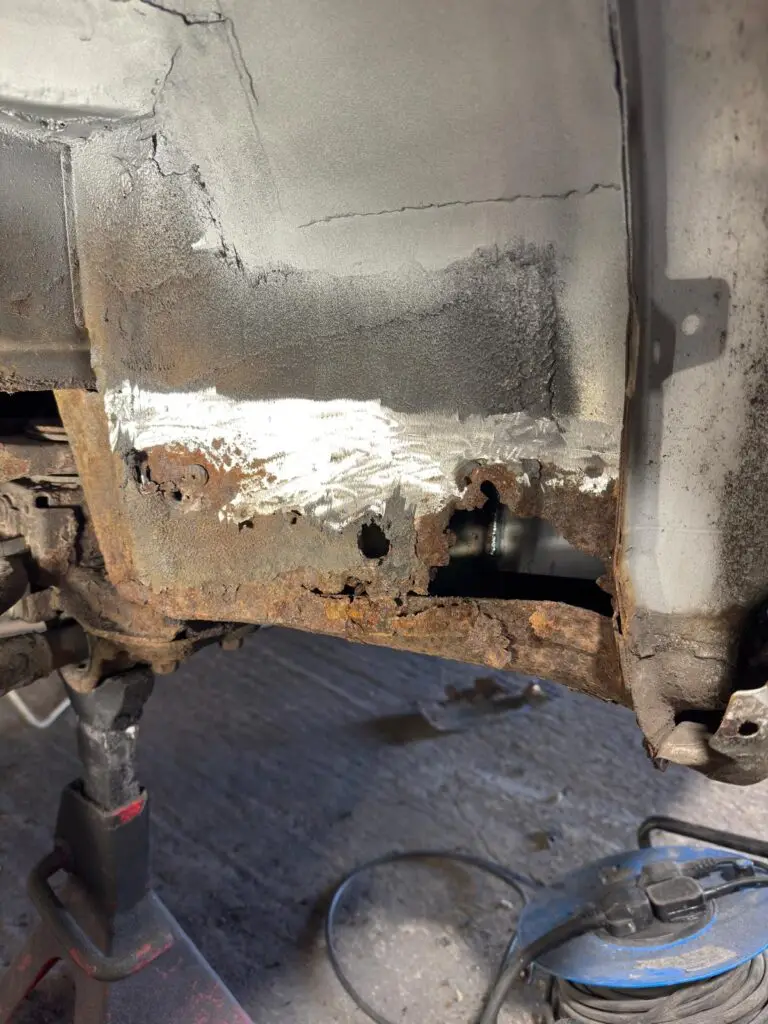

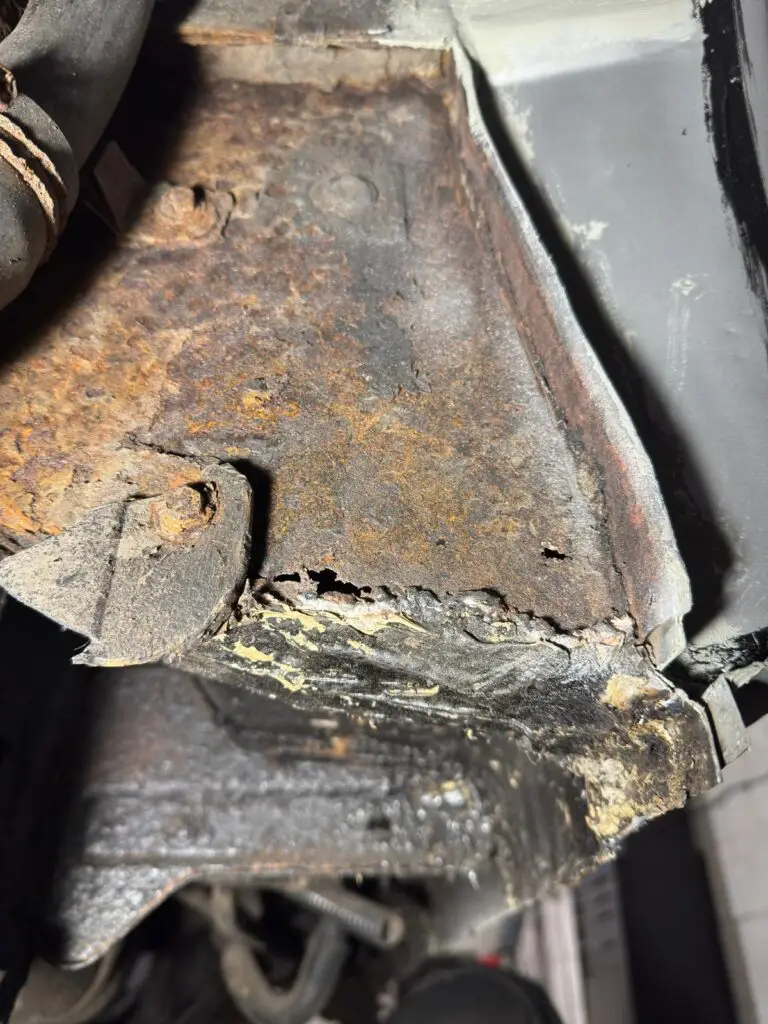

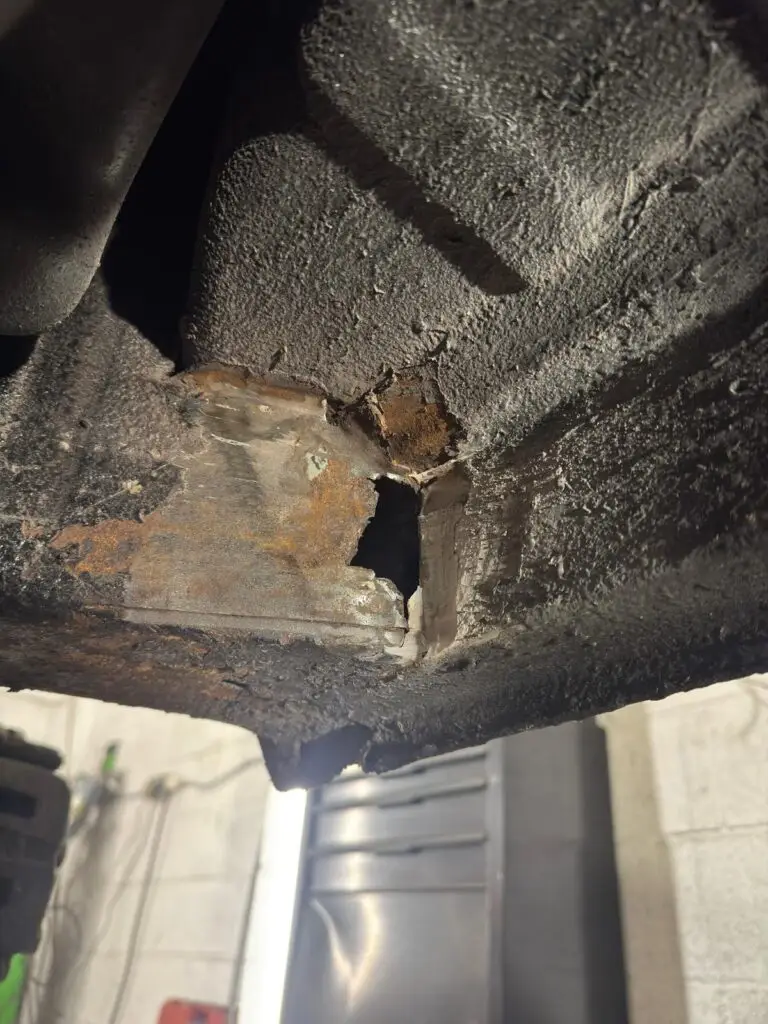

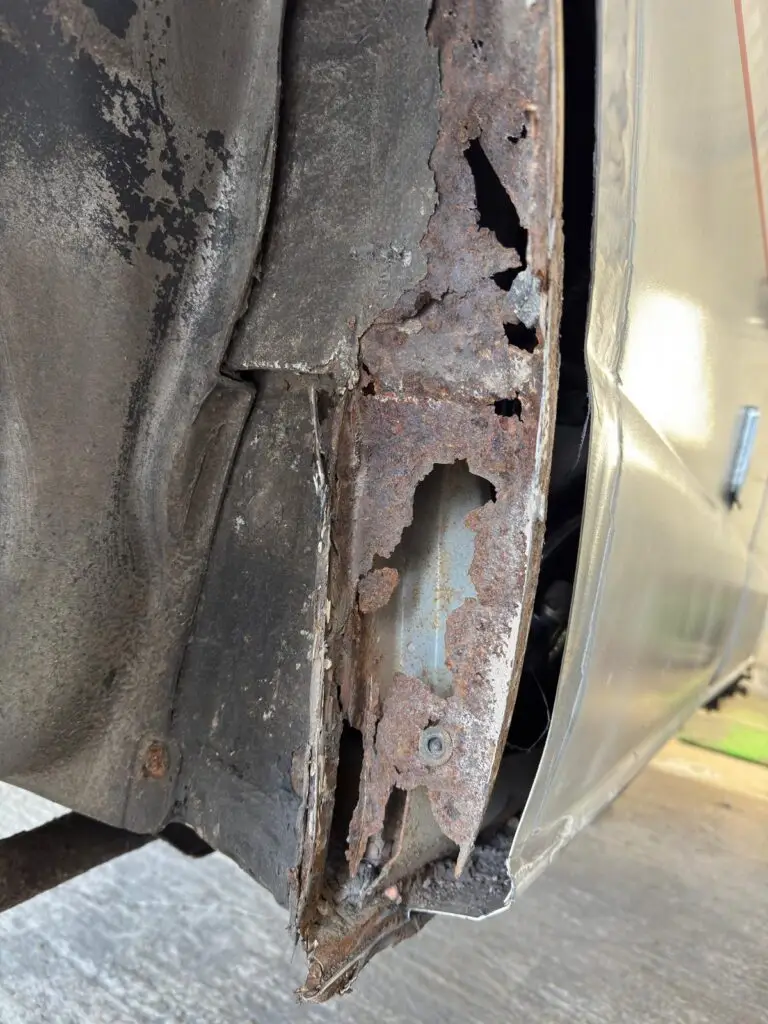

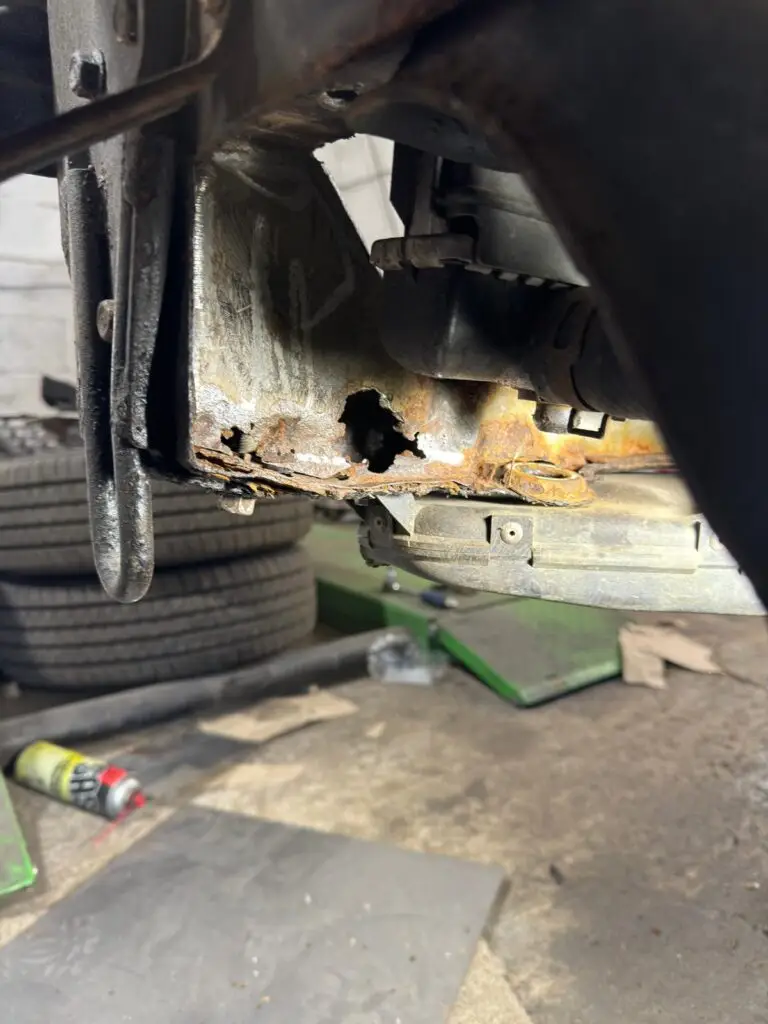

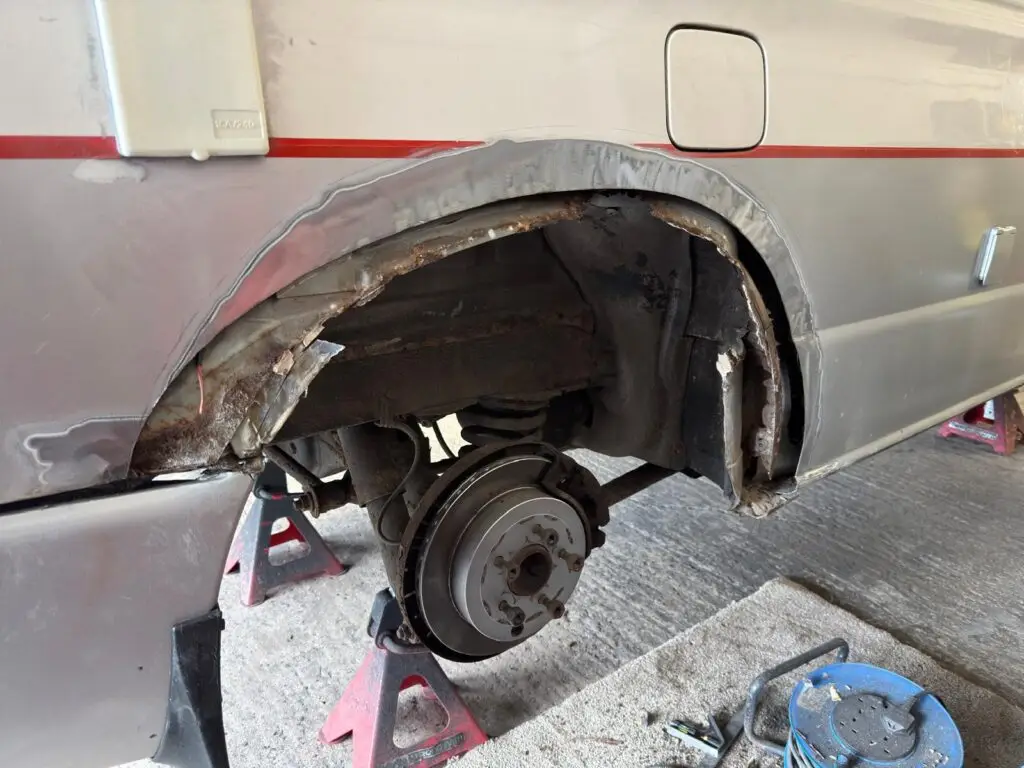

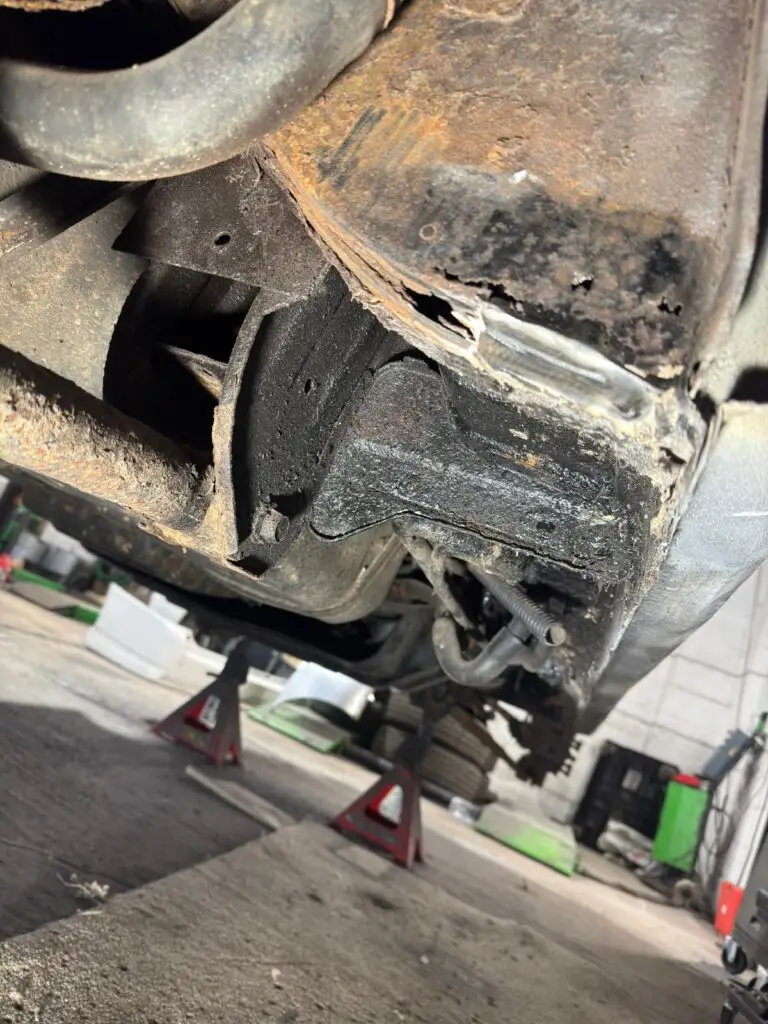

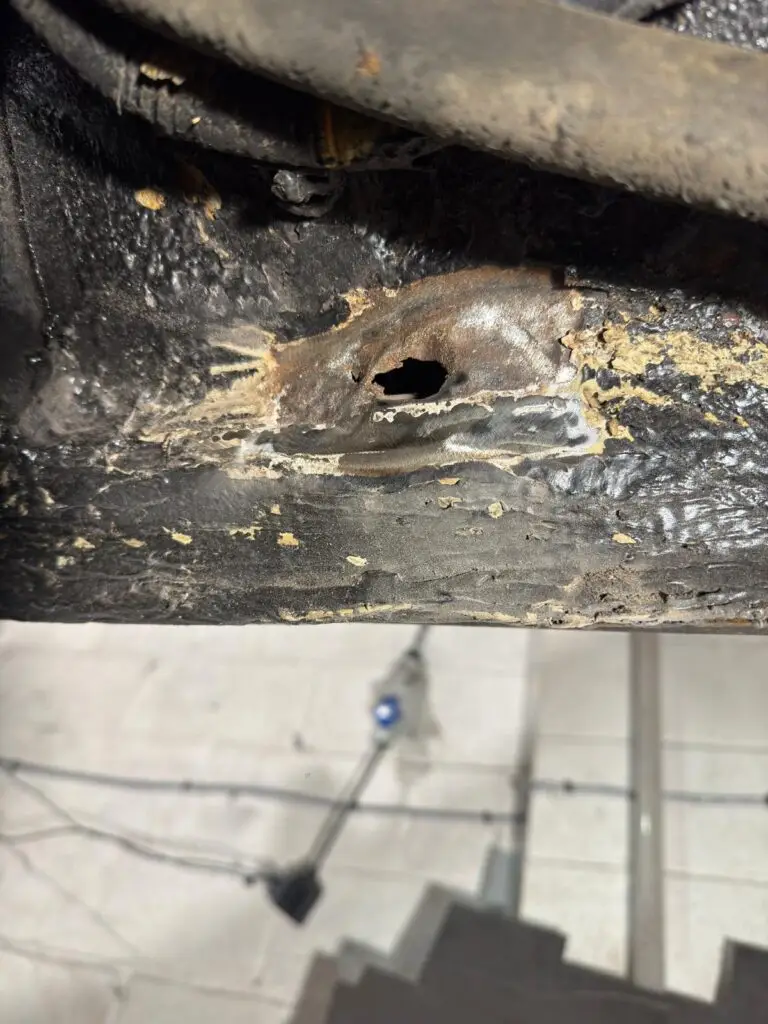

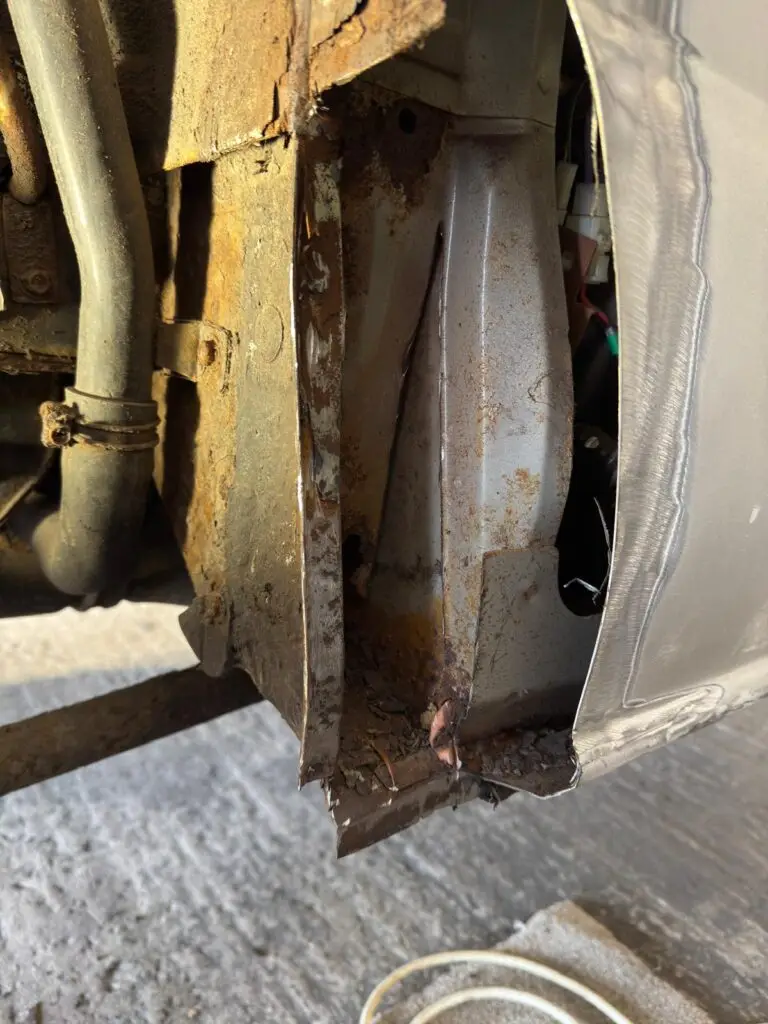

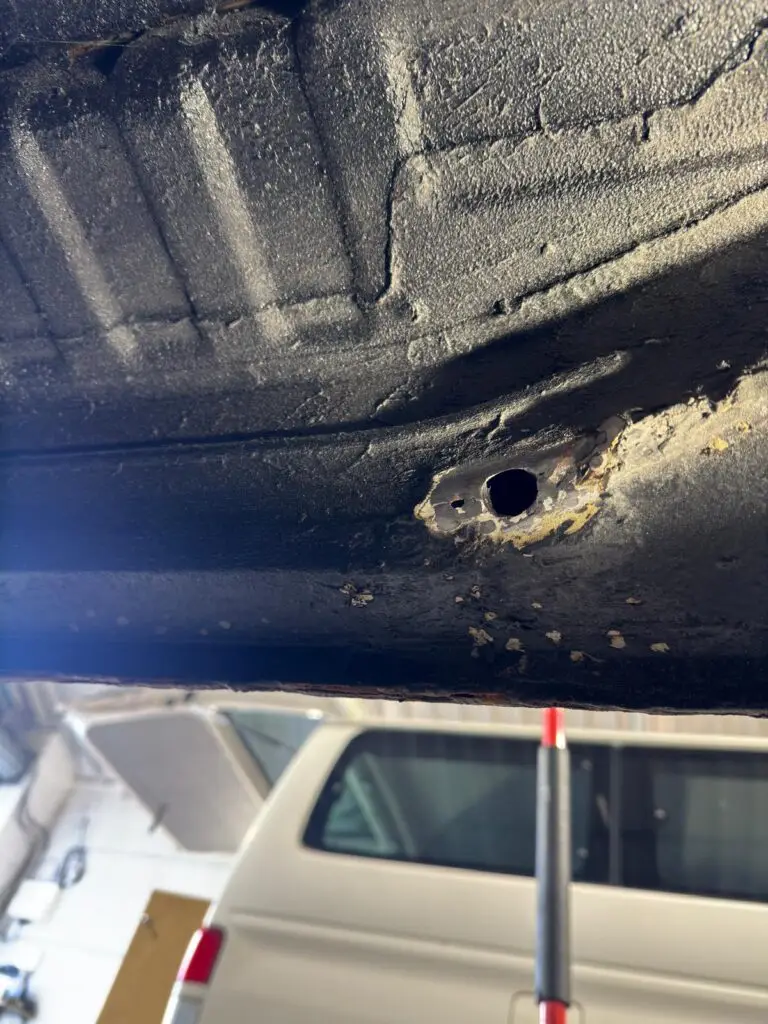

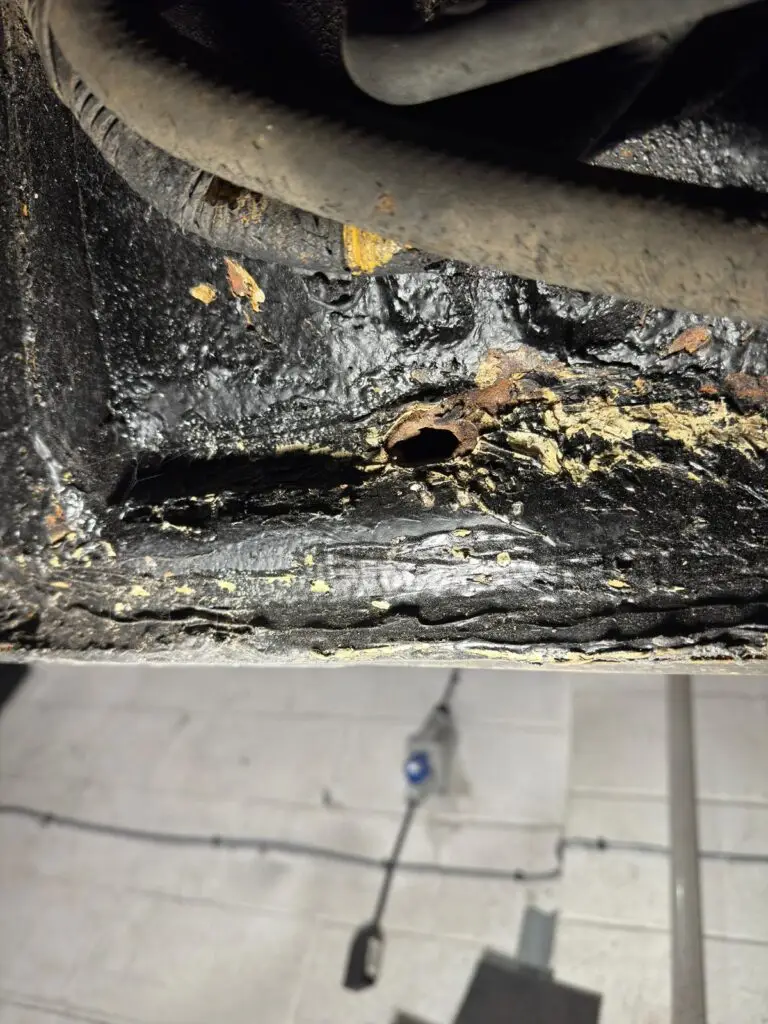

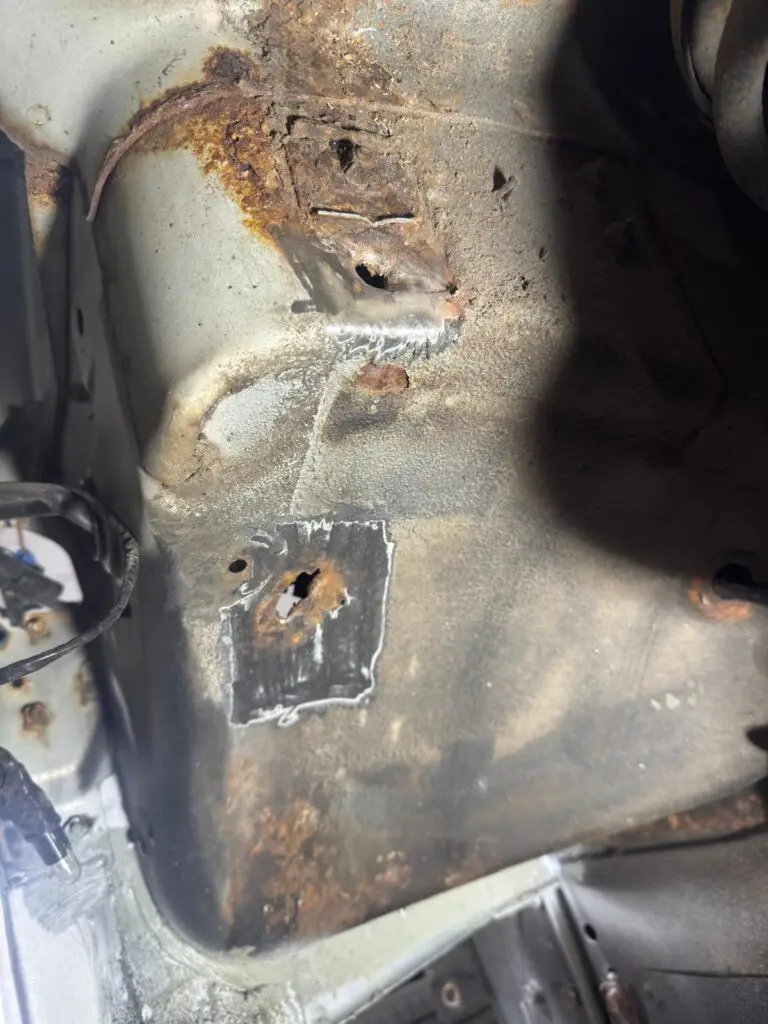

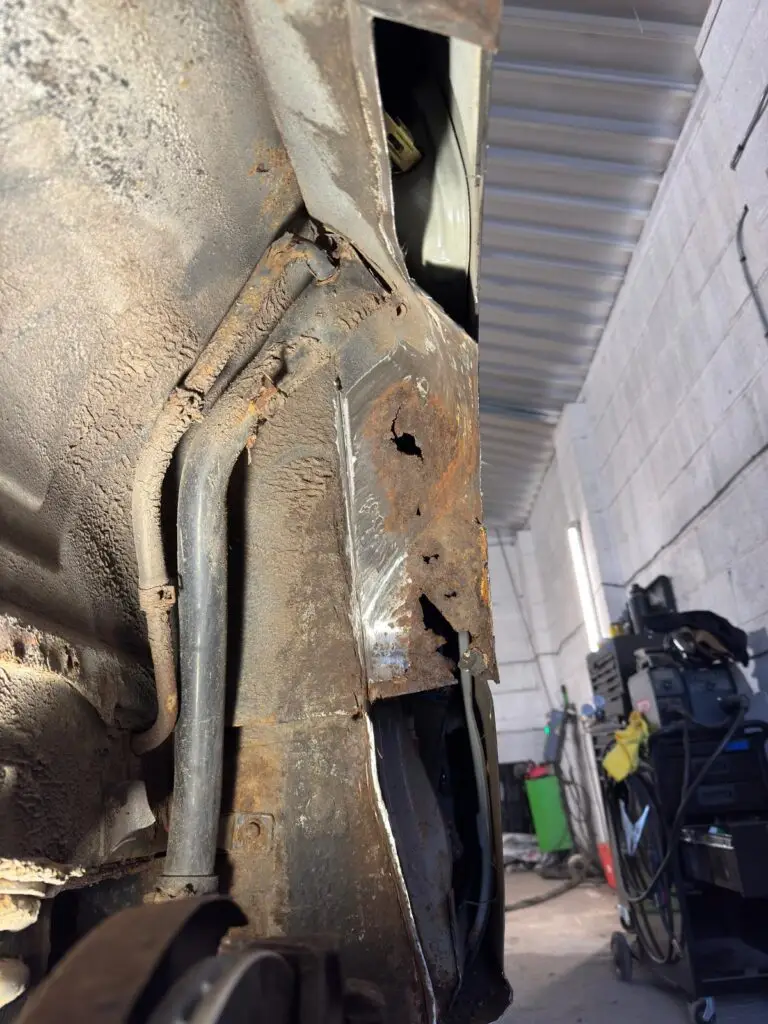

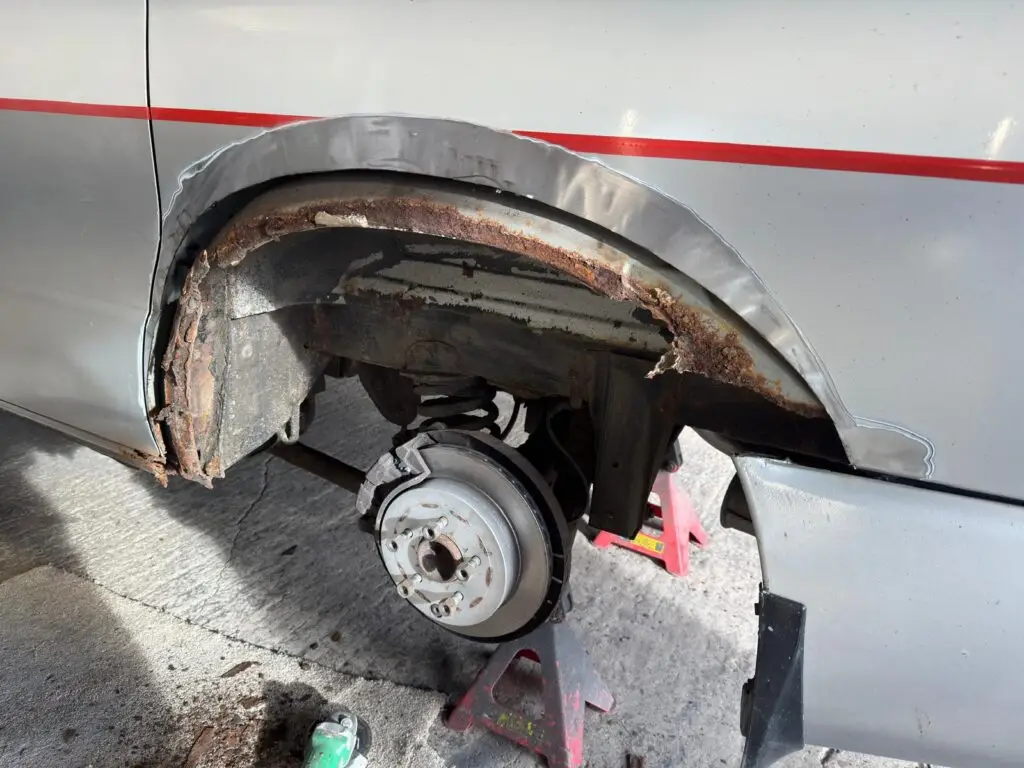

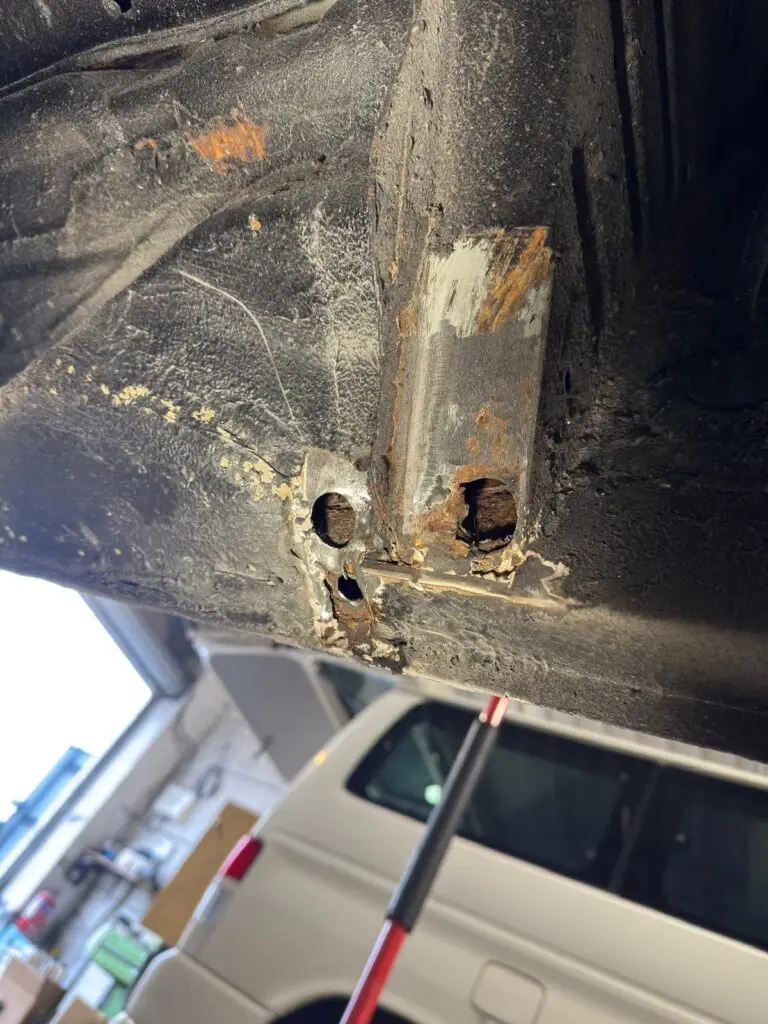

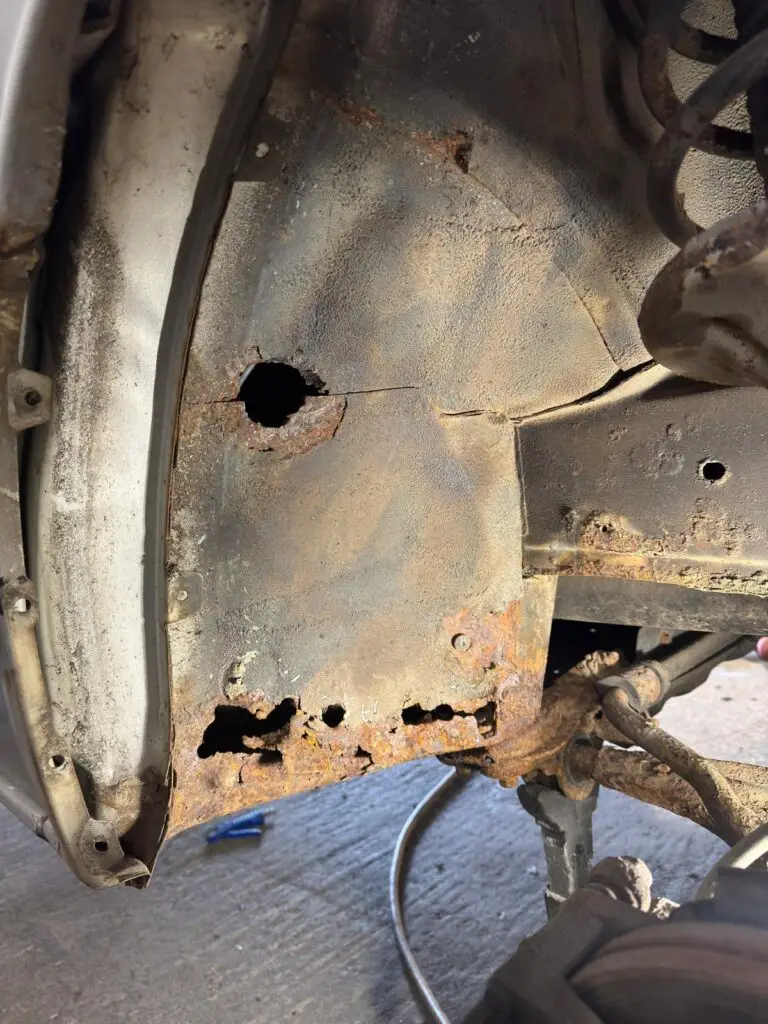

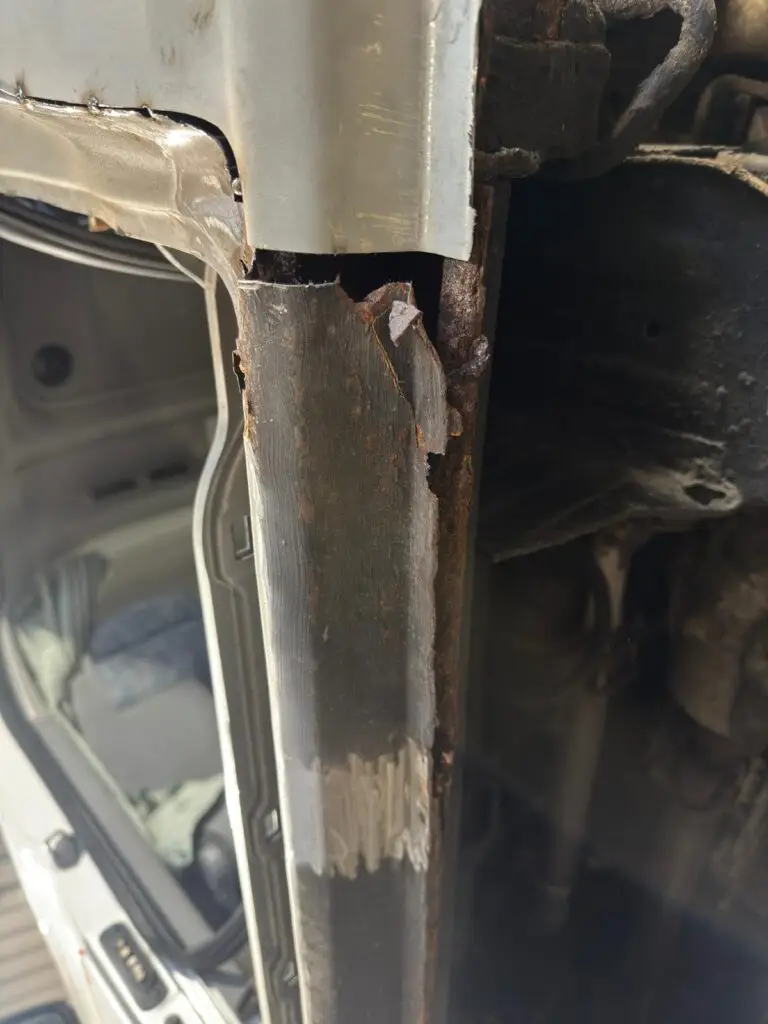

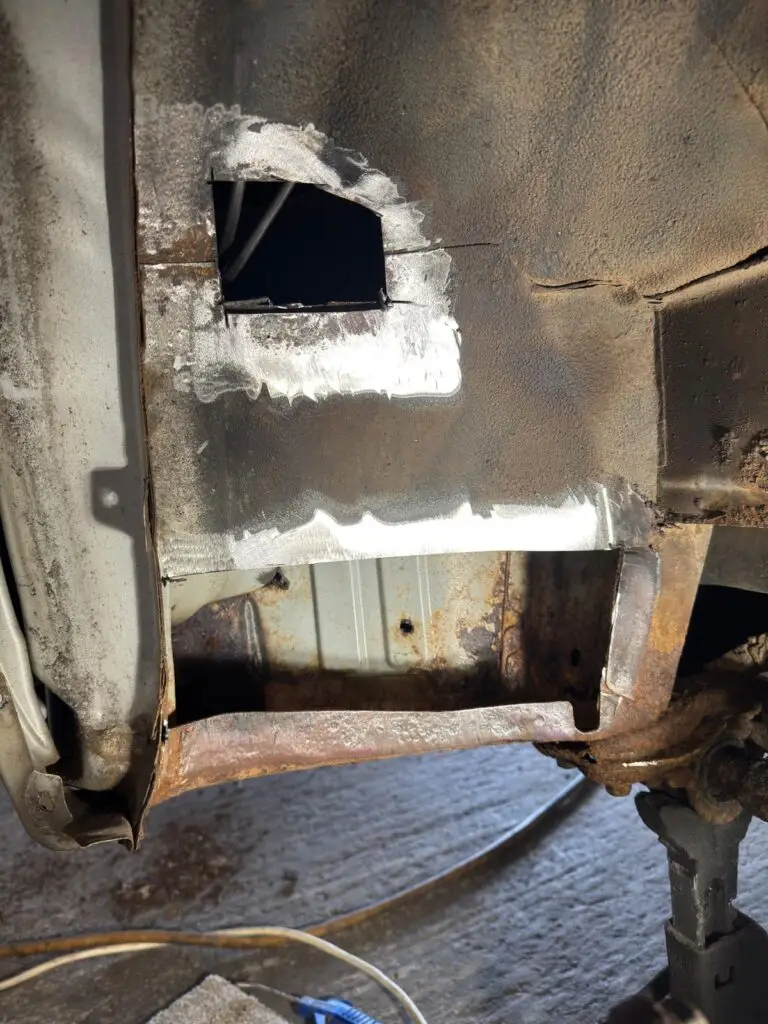

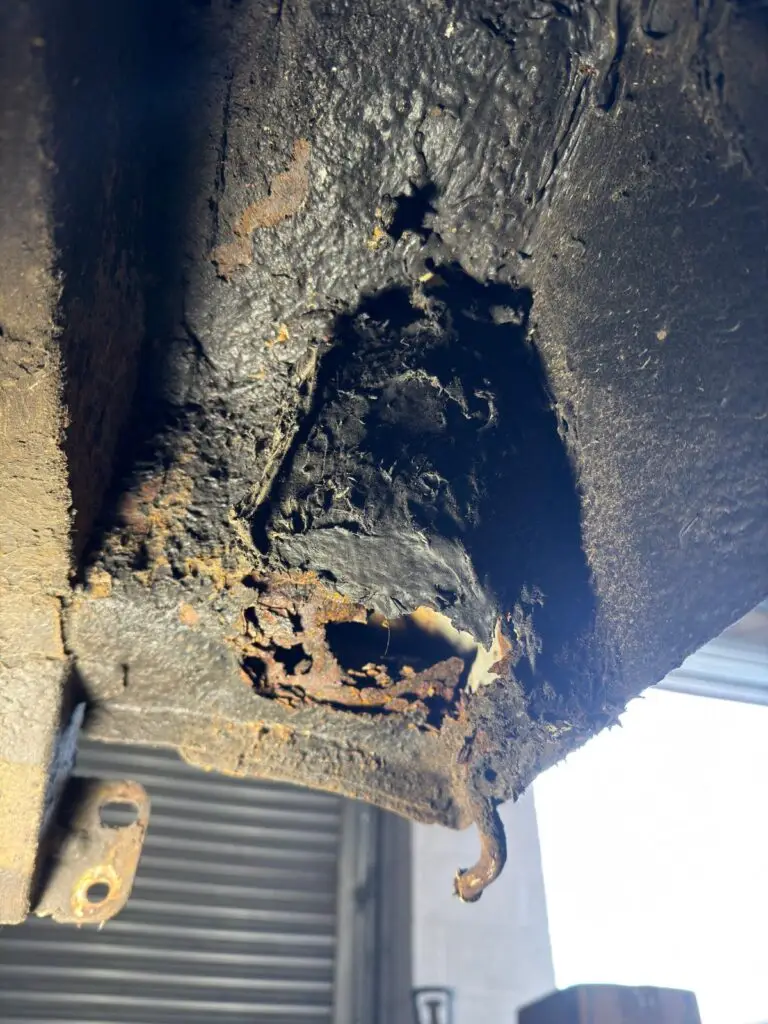

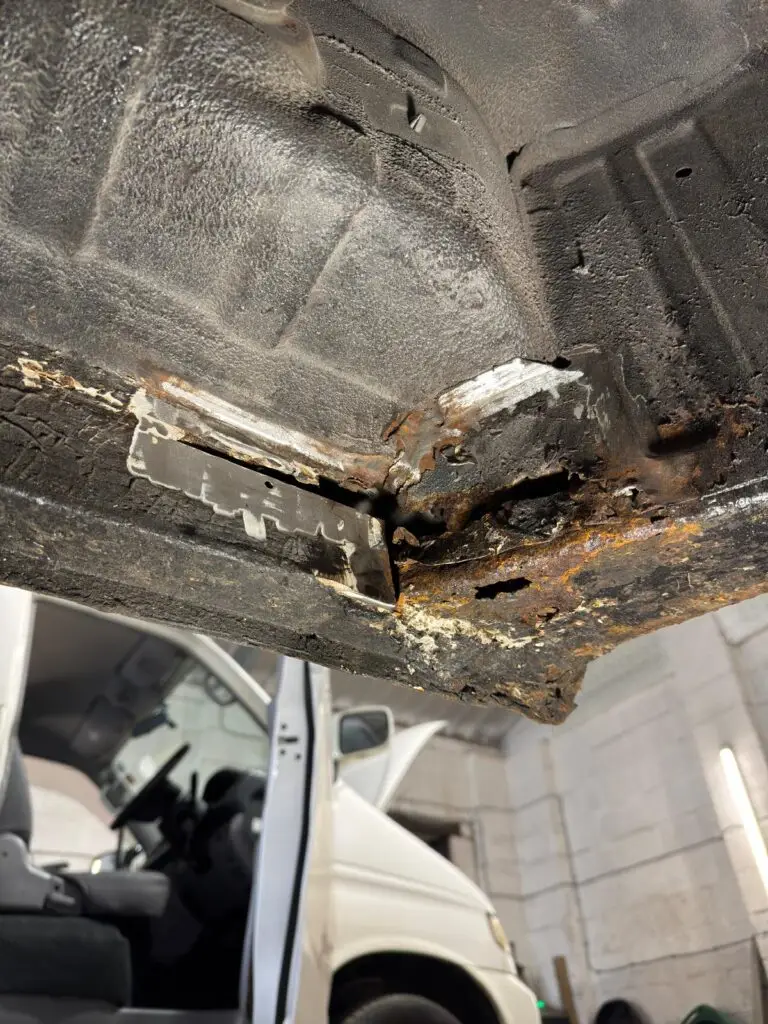

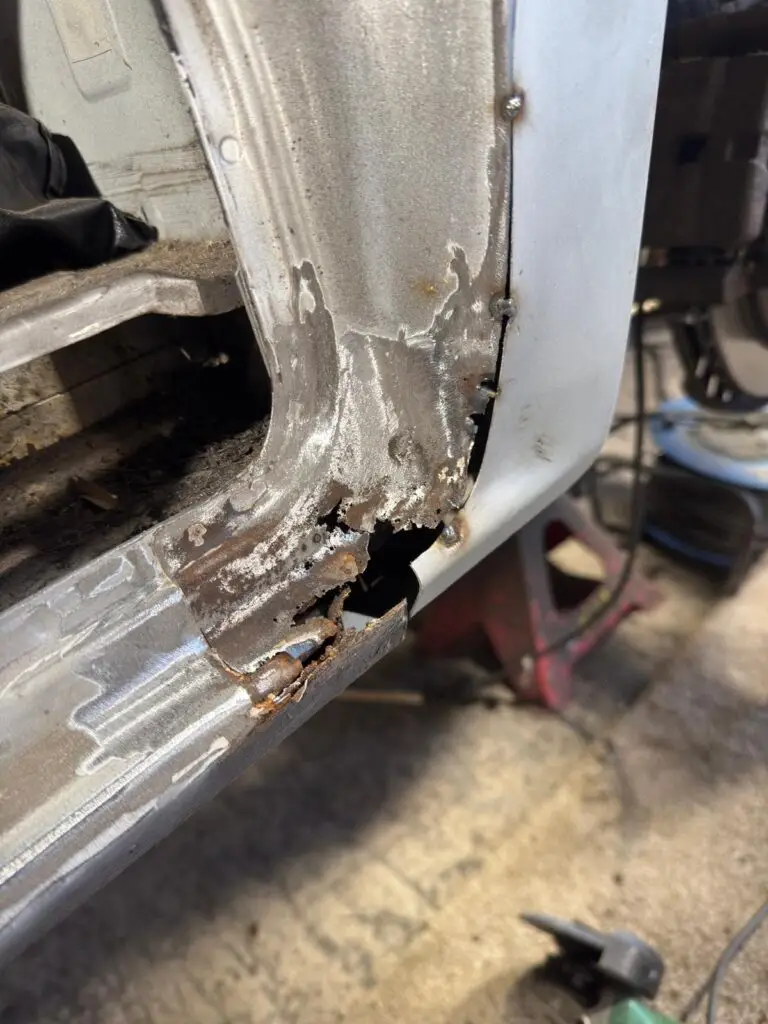

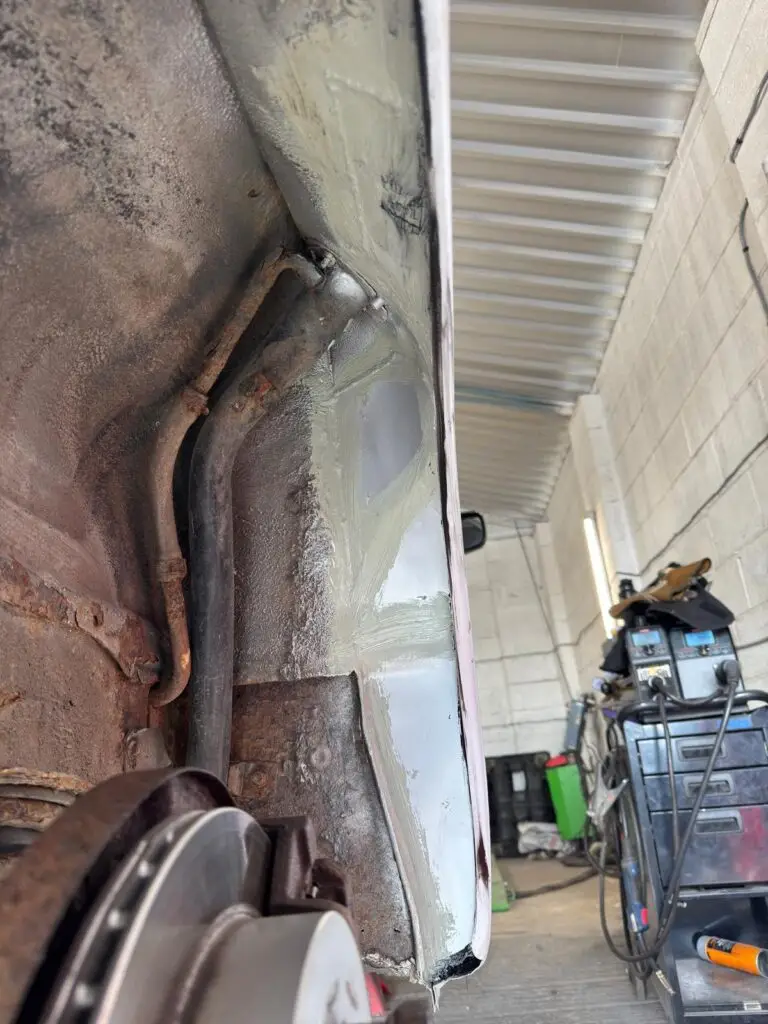

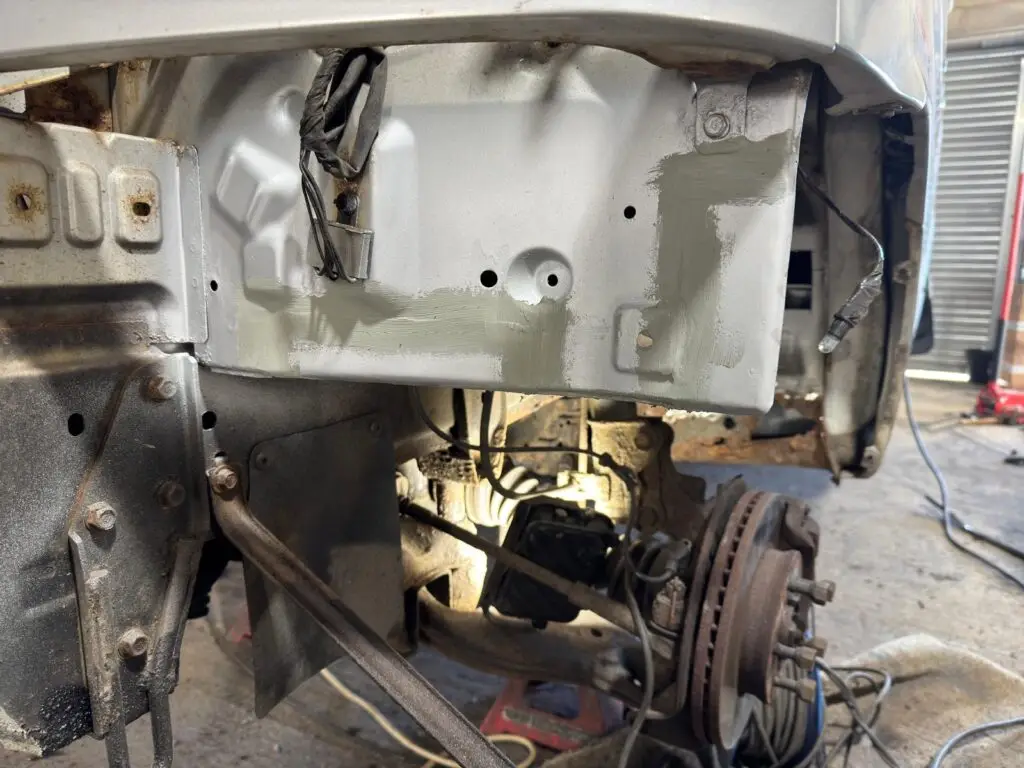

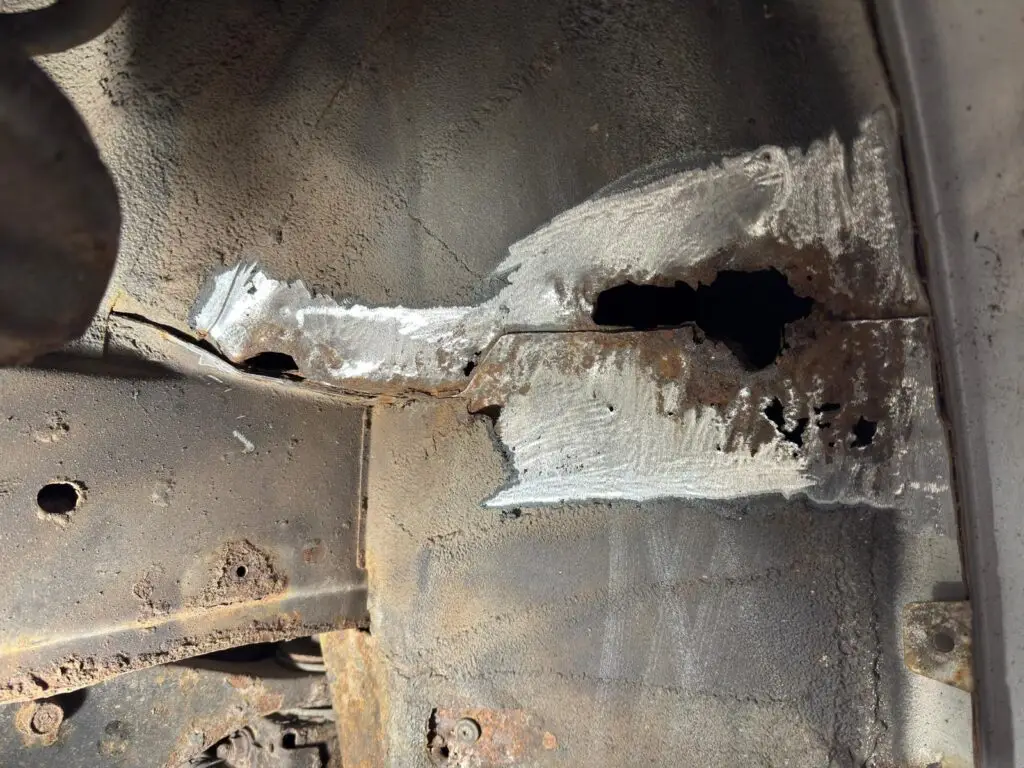

Once the van was stripped back, the true extent of the damage revealed itself. Every area that keeps a Bongo structurally sound needed work. The inner wheel arches had collapsed around the suspension points. Both chassis outriggers were failing. The centre sill and inner sill had rusted from the inside out. The arch tubs were weakened. Even the floor pan’s corners had lost strength.

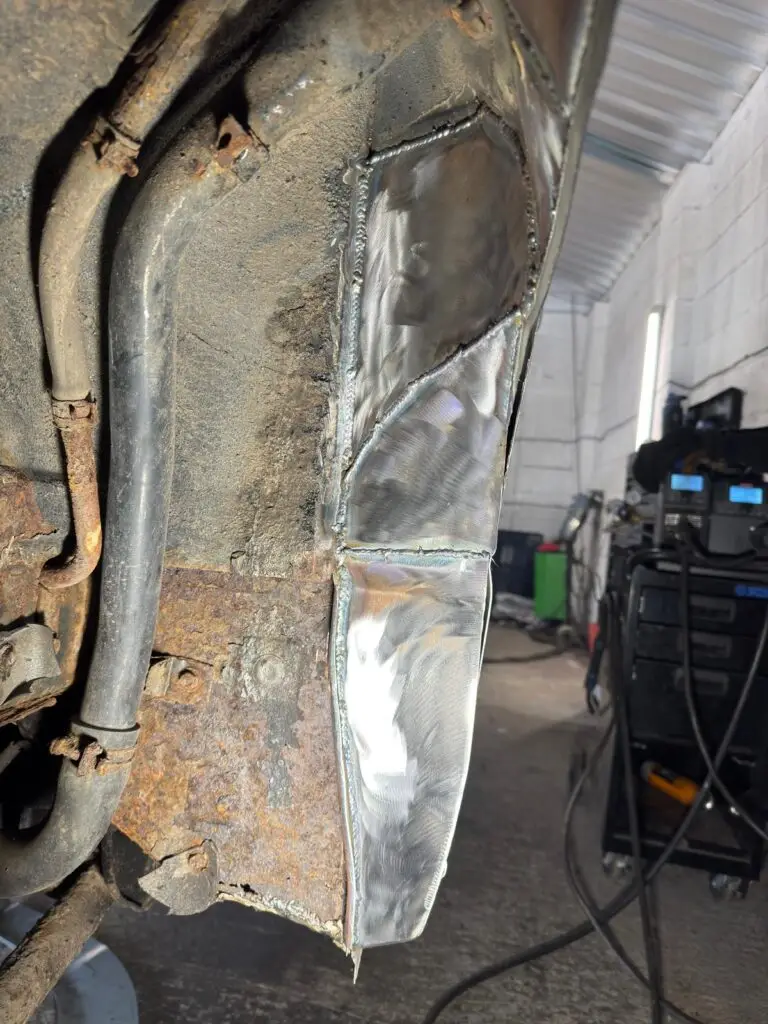

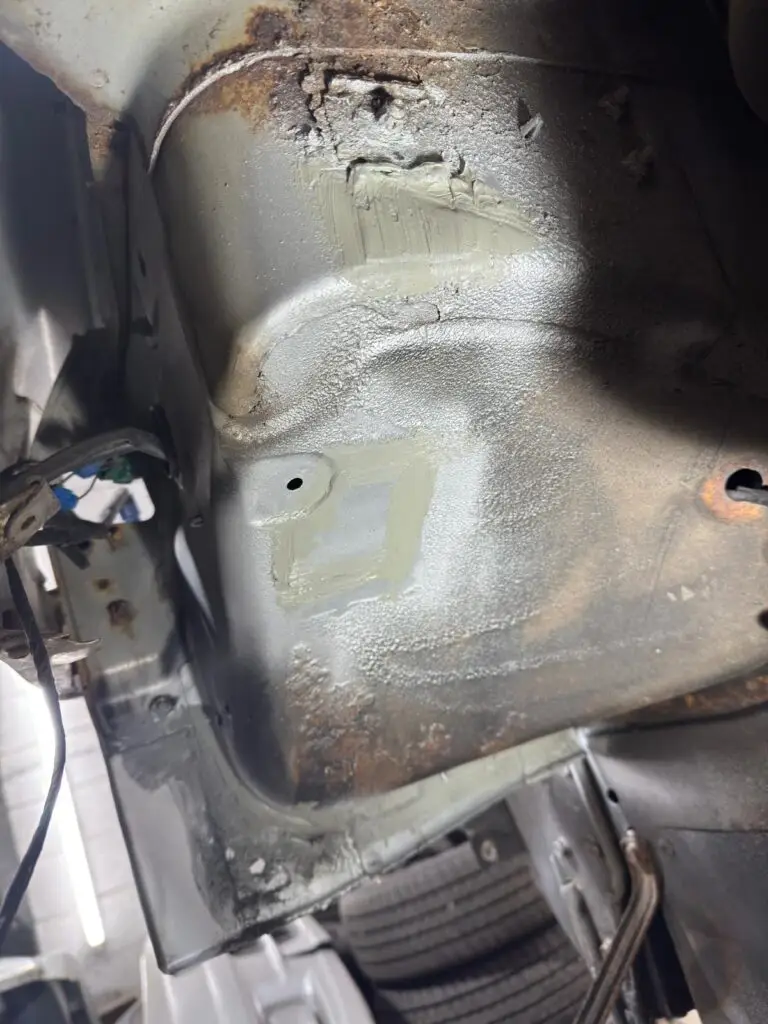

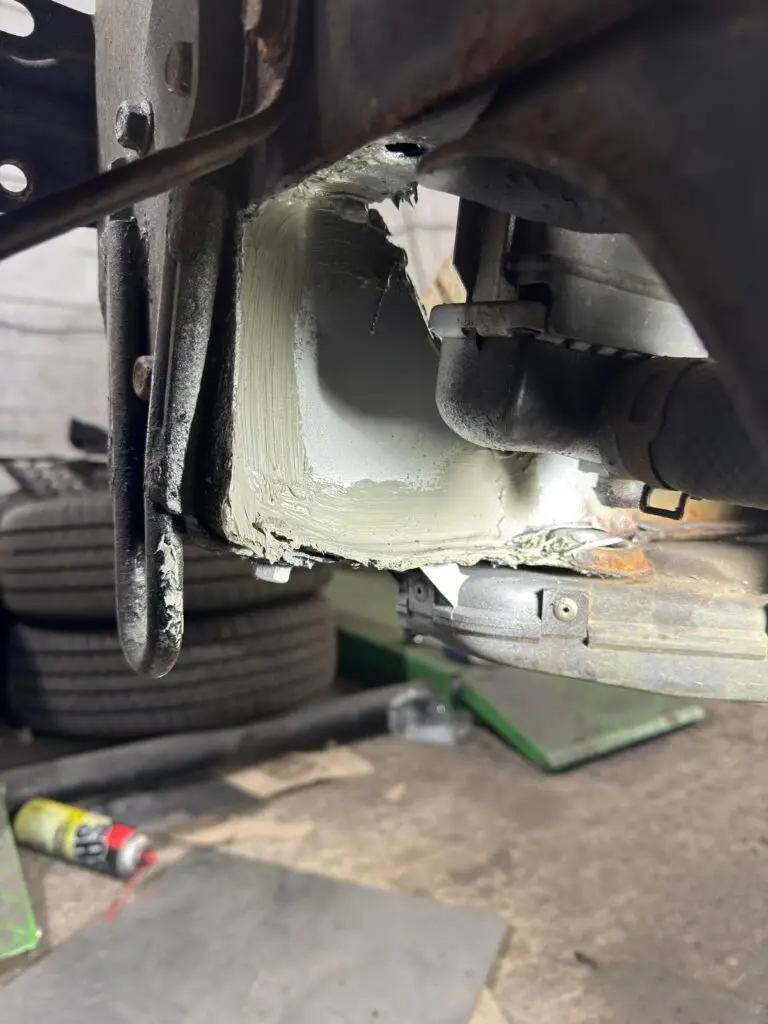

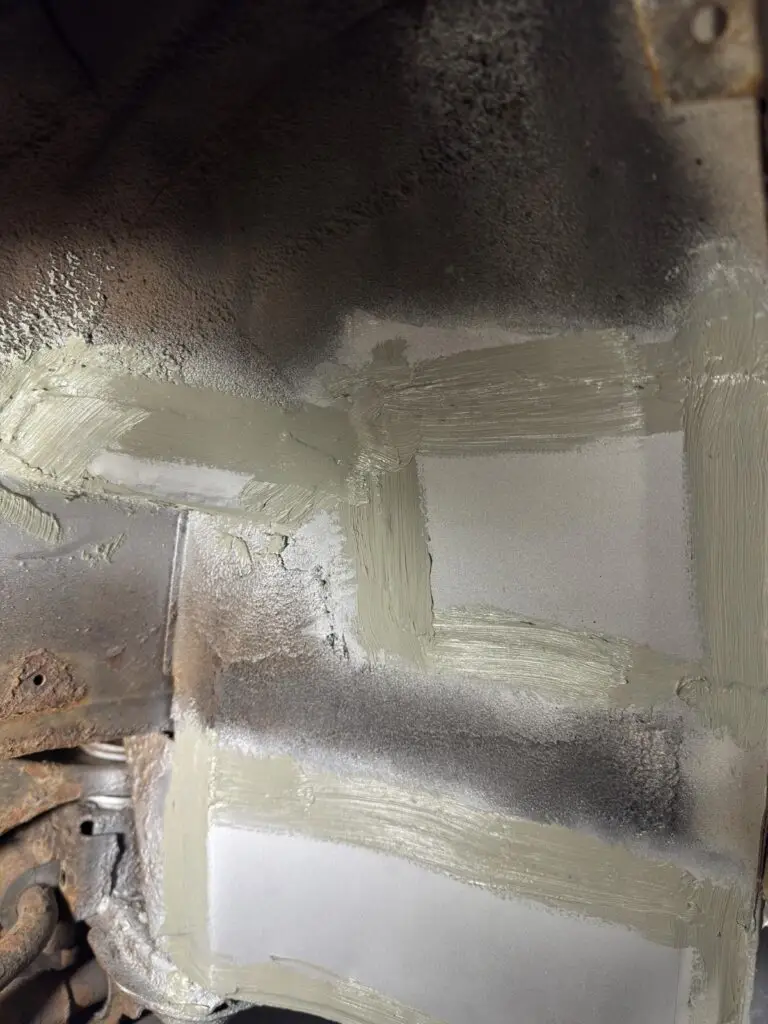

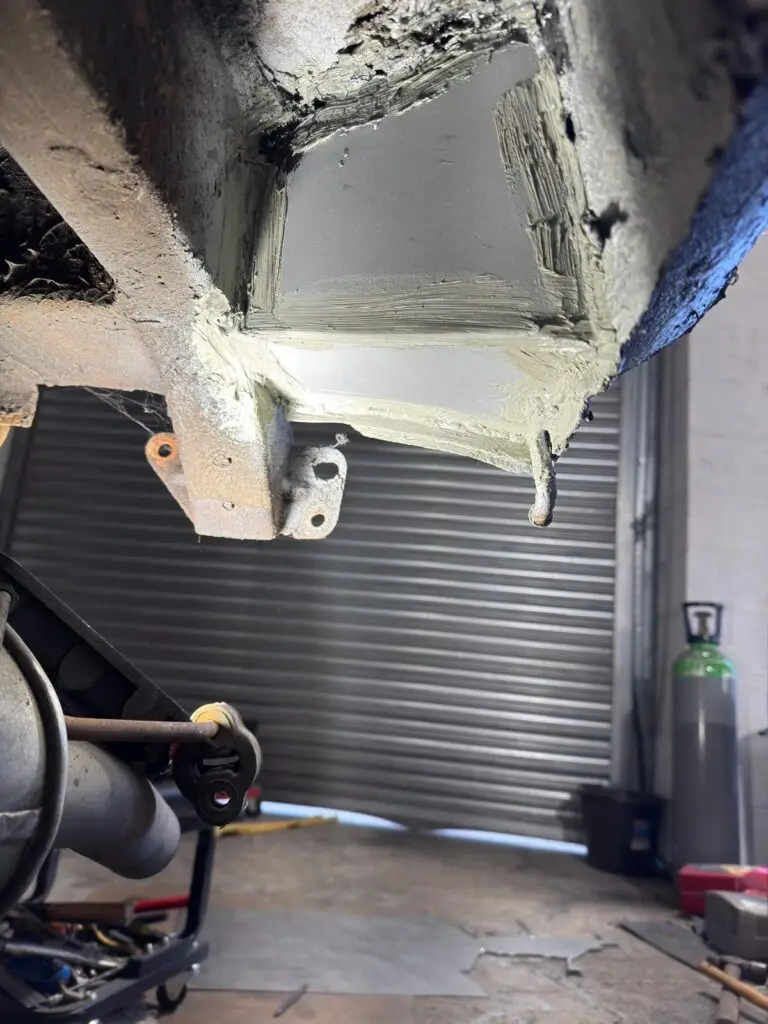

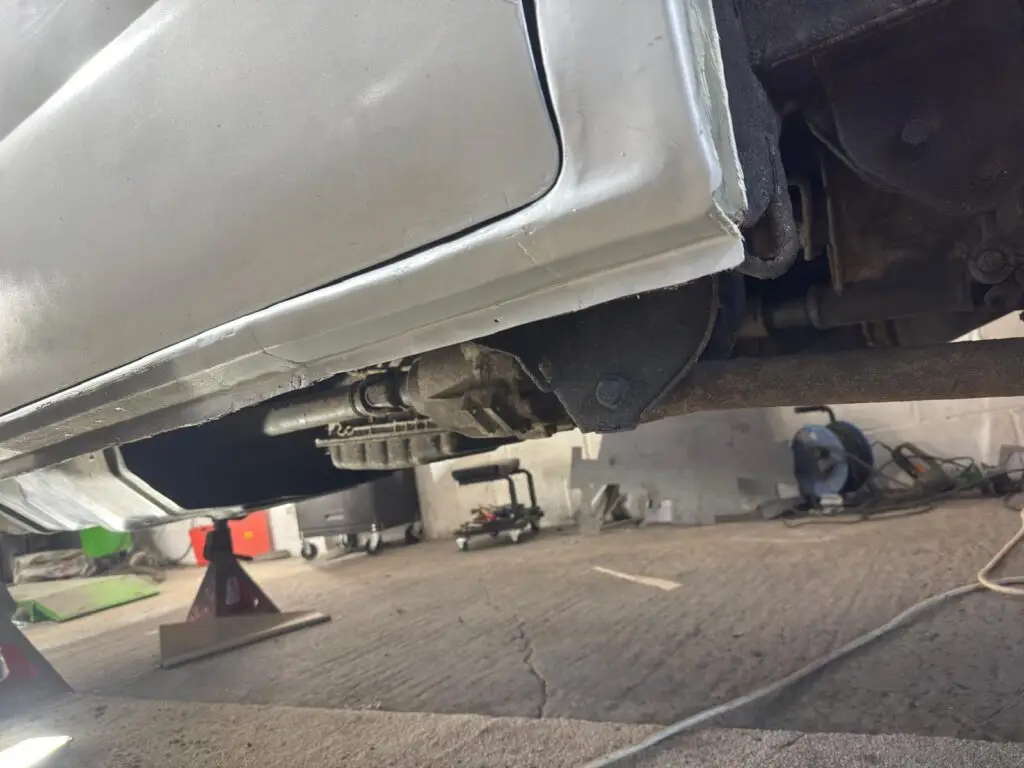

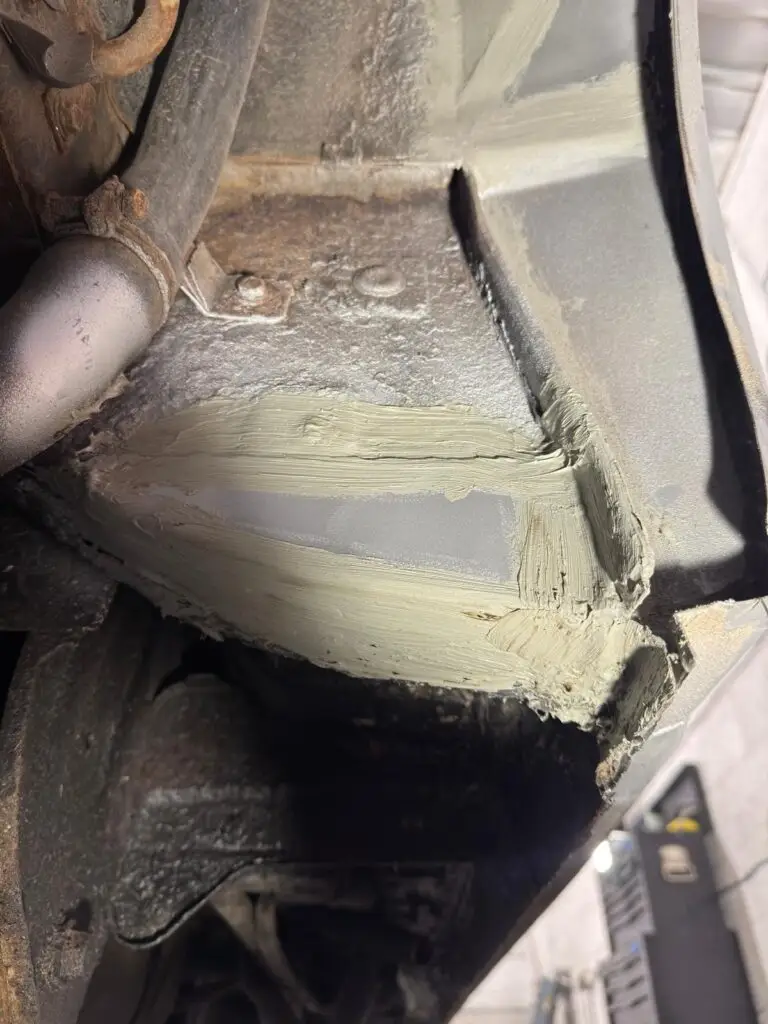

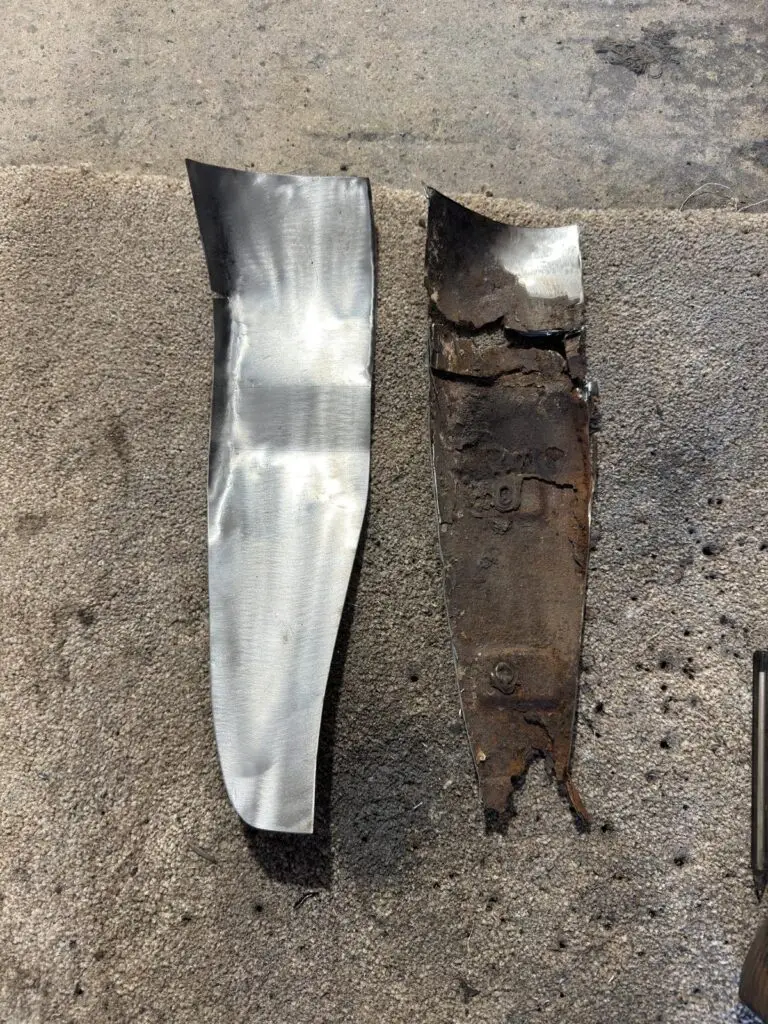

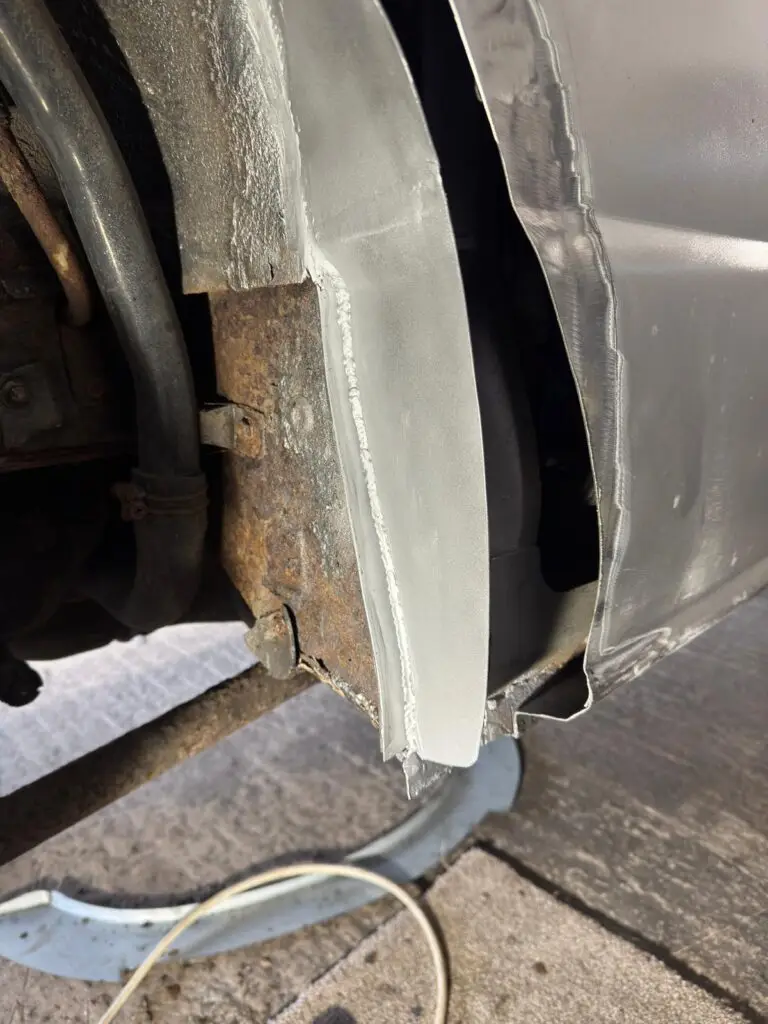

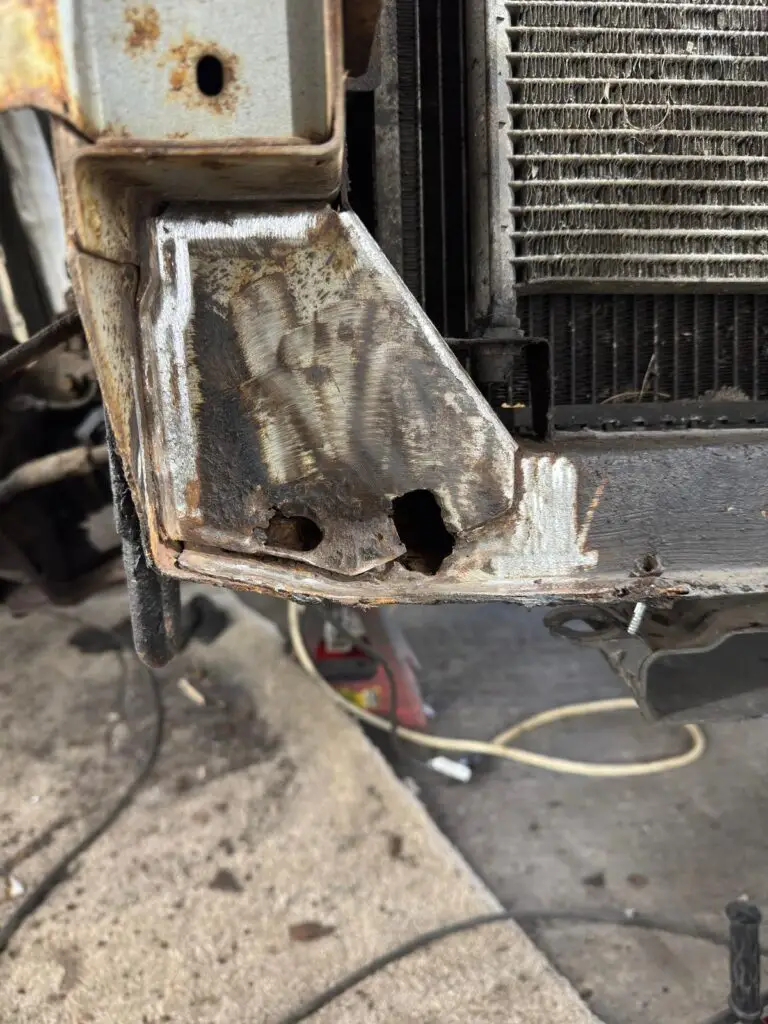

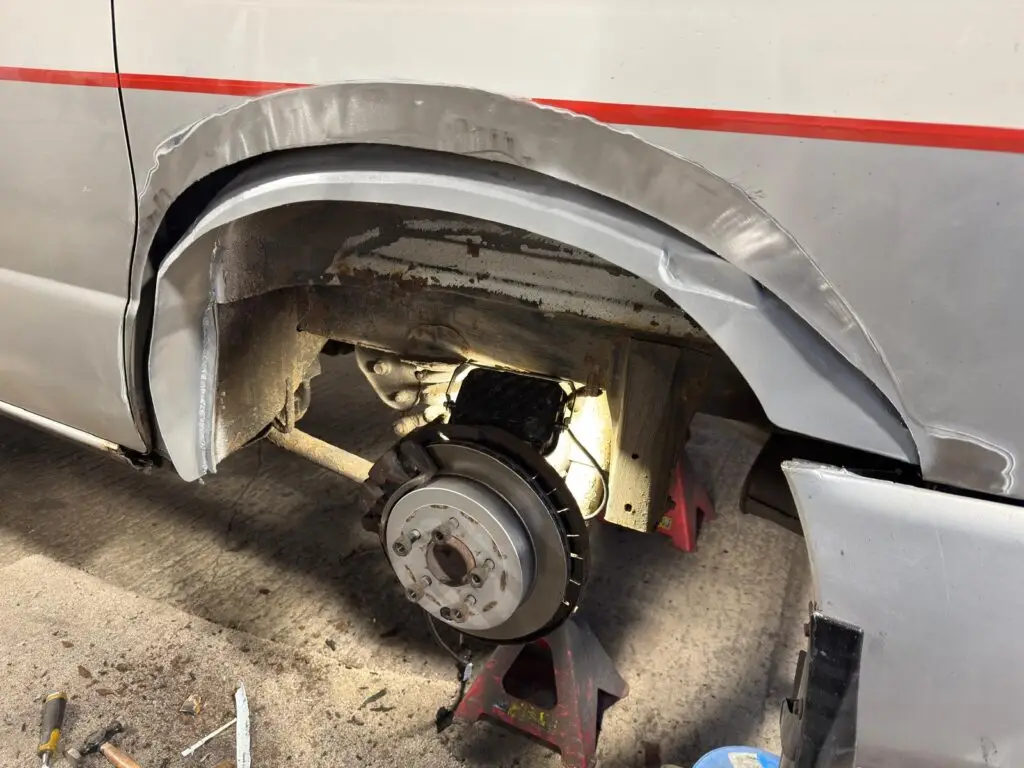

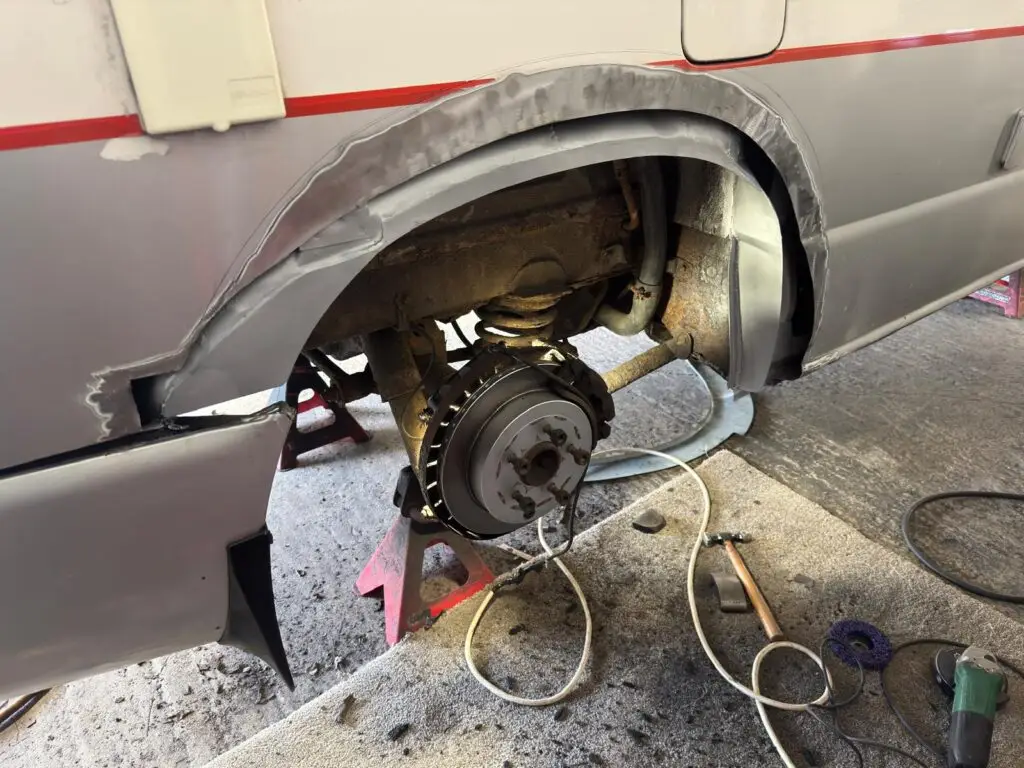

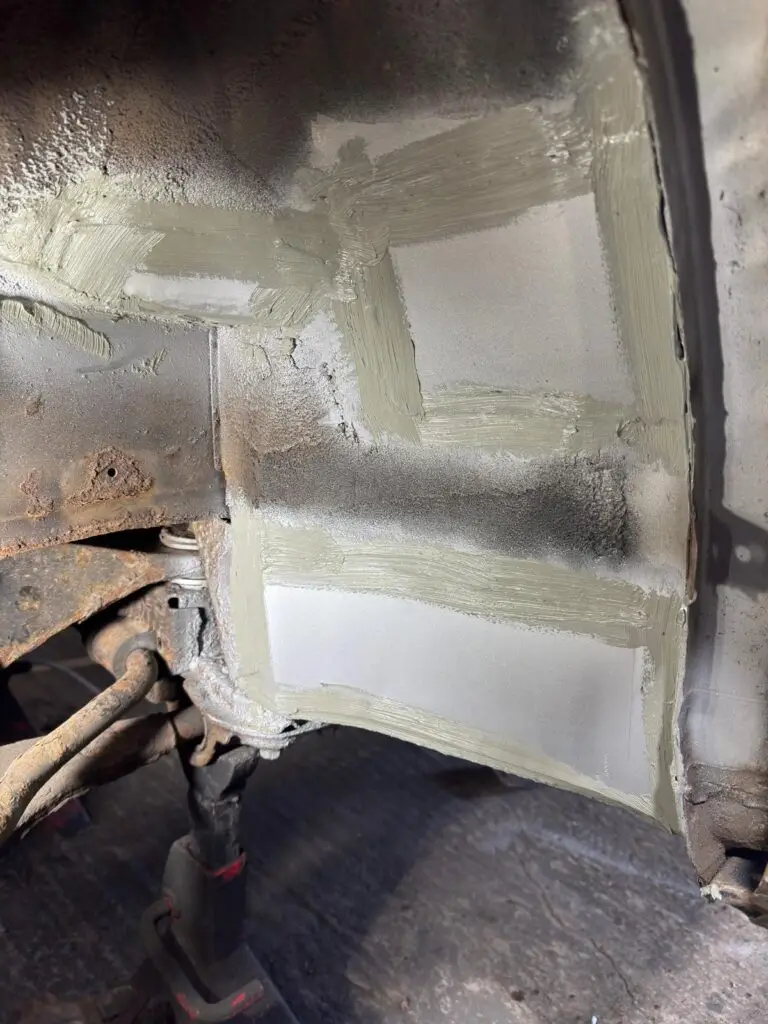

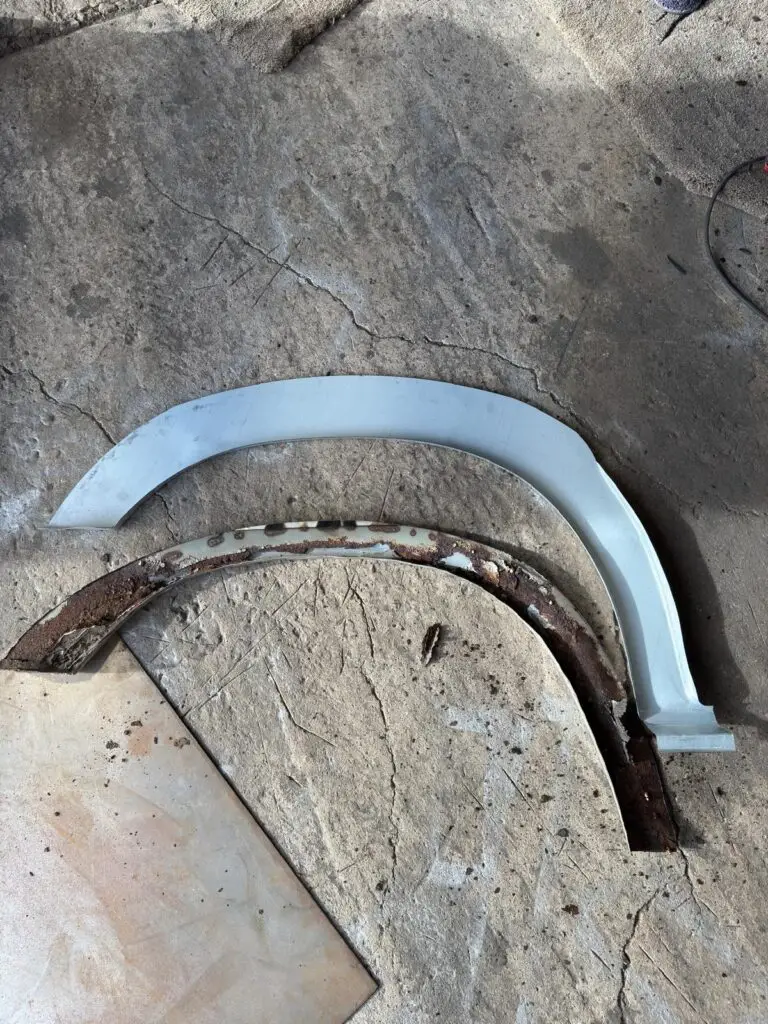

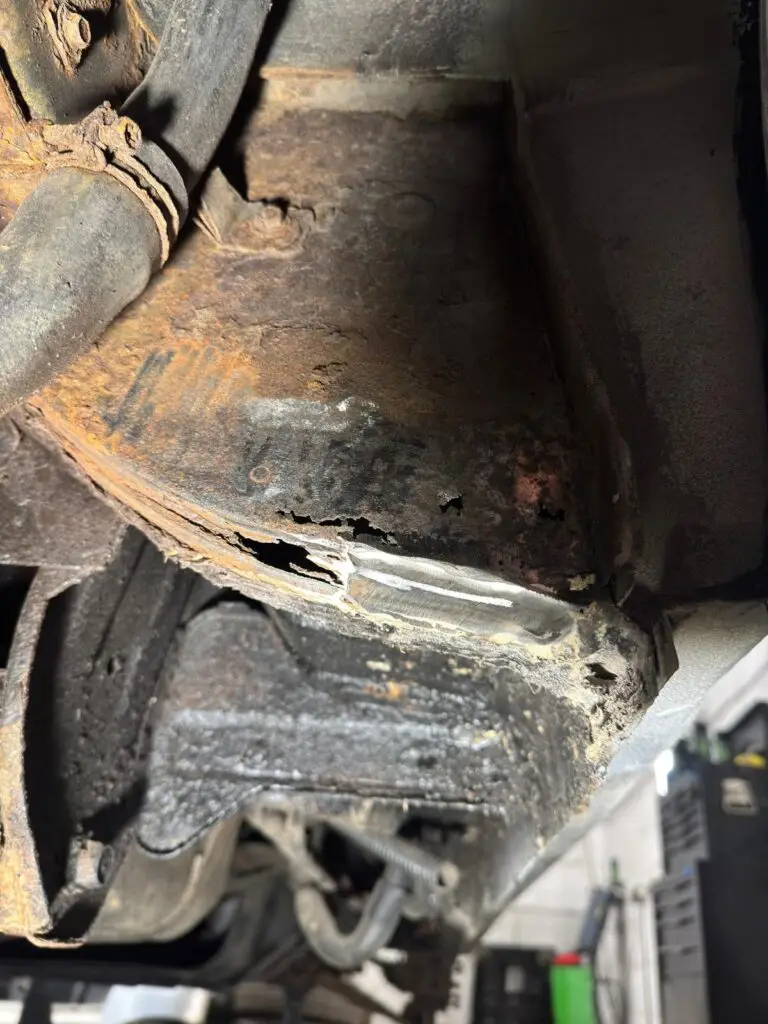

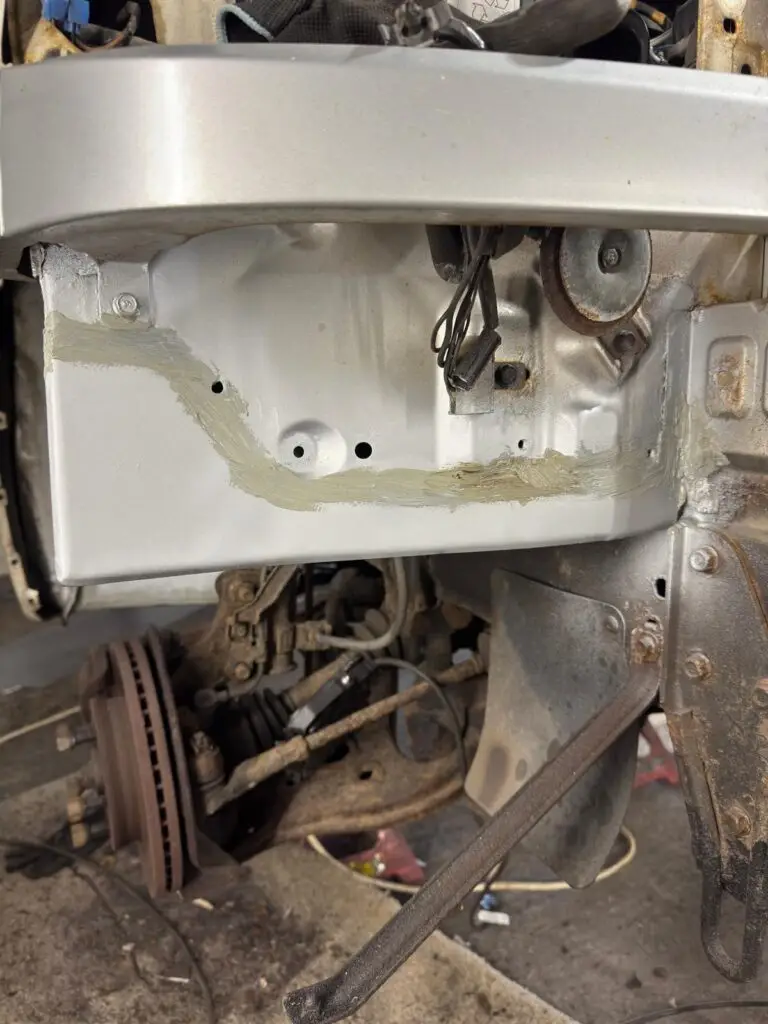

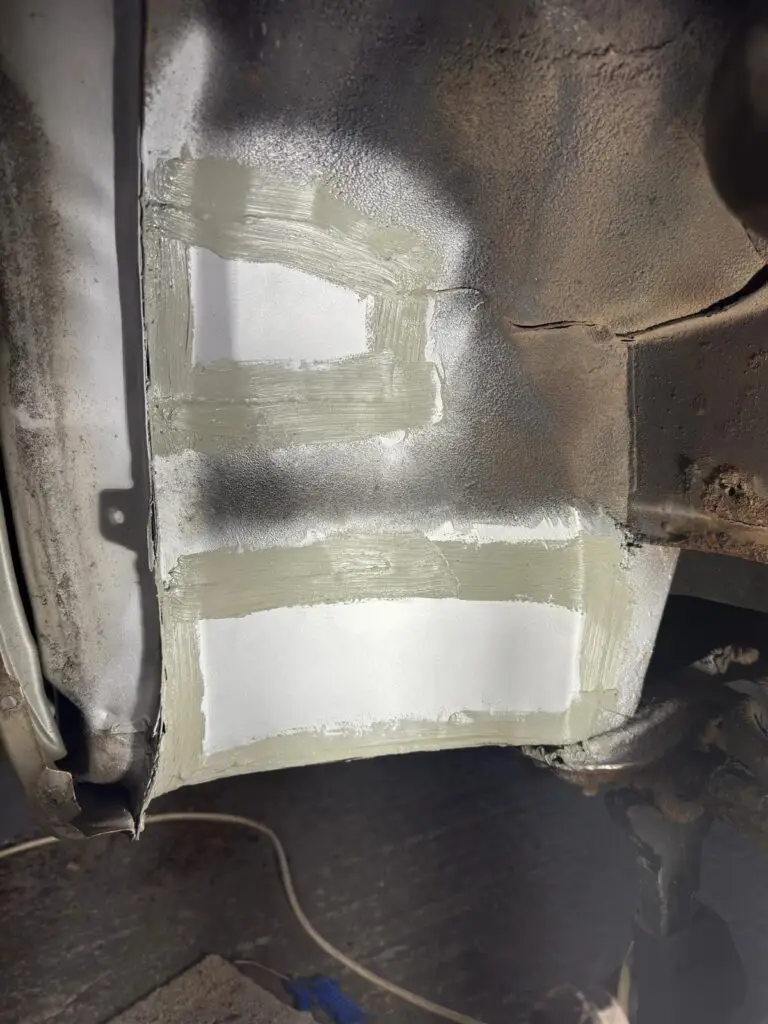

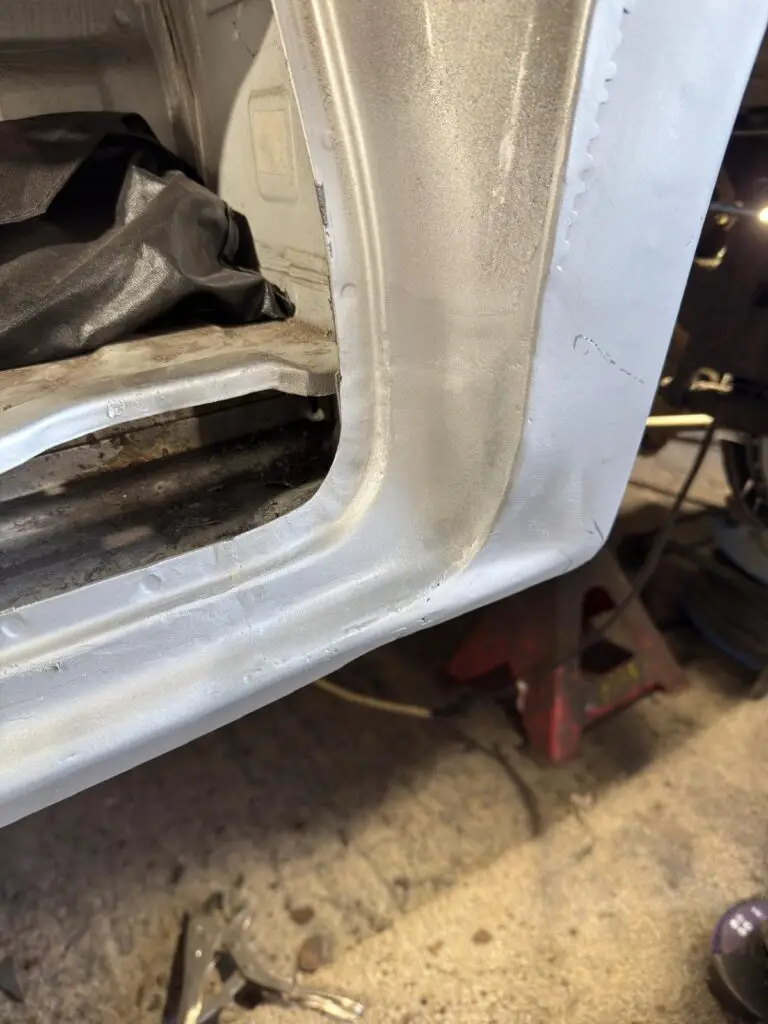

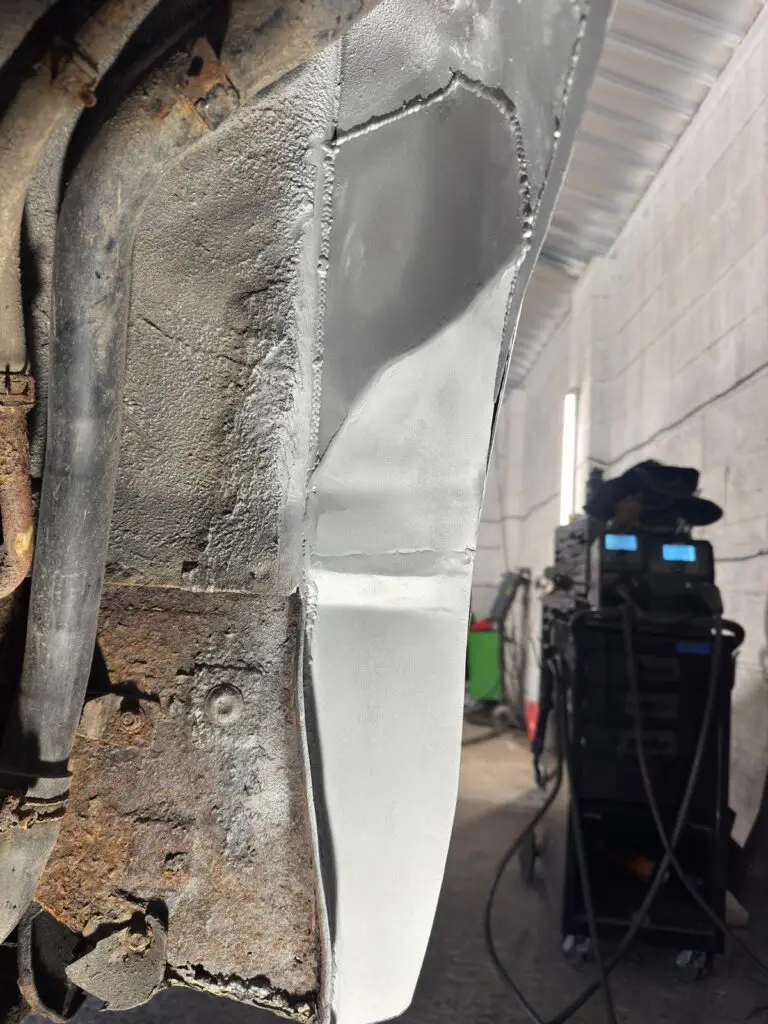

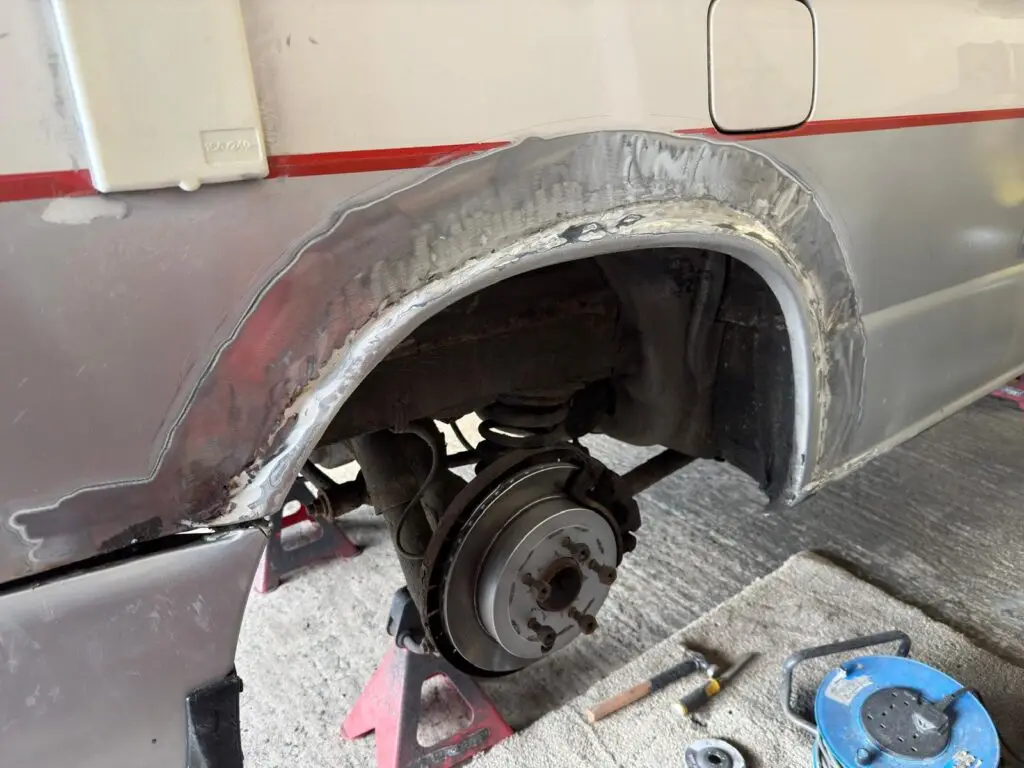

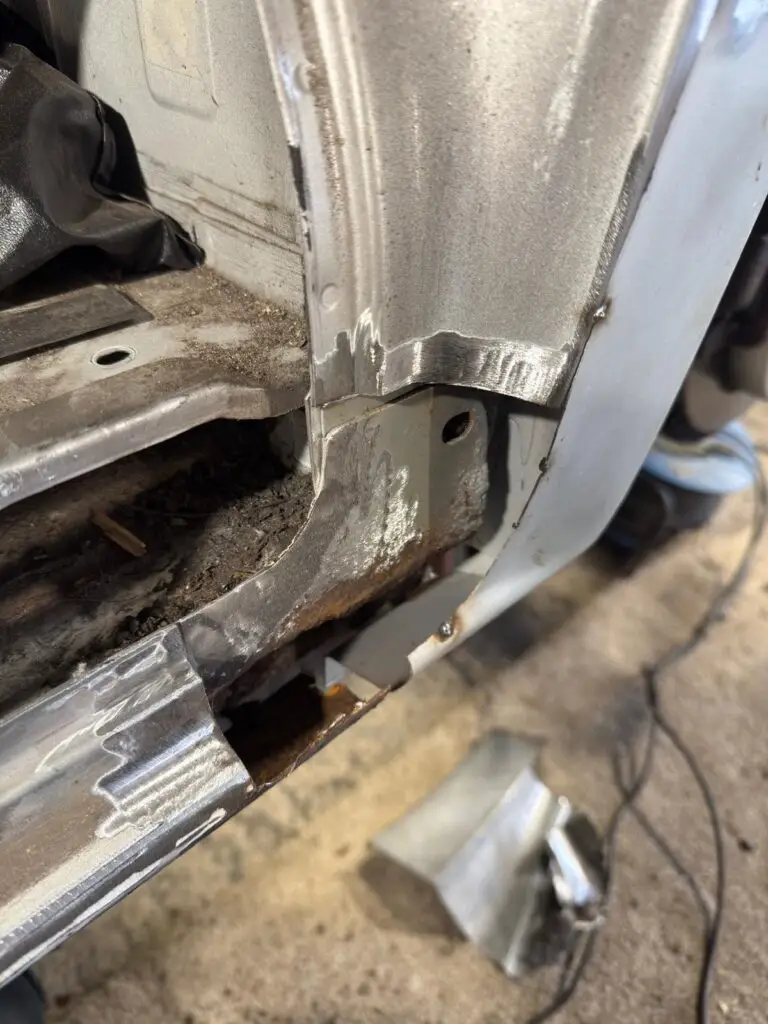

Piece by piece, every rotten section was cut out. Brand new steel was shaped and welded in. Each arch was rebuilt. The outriggers were replaced. The cross members were repaired. The chassis legs were strengthened. The sills were reconstructed from one end to the other.
By the time the welding was complete, the entire underside of this van had been renewed. It was stronger than it had been in years.
Mechanical Repairs And Essential Fixes
Mazda Bongo severe corrosion restoration was not the only issue. As we went through the van, the list of mechanical faults grew.
The coolant T pipe was severely corroded and replaced before it failed.
A gearbox oil leak was repaired.
The auto transmission cooler pipes had rusted and needed replacing before they caused serious damage.
The anti-roll bar D bushes were worn and replaced.
A rocker cover gasket leak was corrected.
Exhaust repairs were carried out after the front pipe began blowing.
The lower suspension arm was so corroded that it had to be replaced for safety.
Fan belts were tightened.
Smaller faults, such as missing clips and loose components, were corrected along the way.
This was the kind of mechanical list that builds over the years. Fixing it meant giving the van not just strength, but reliability.
Protecting It for the Long Road Ahead

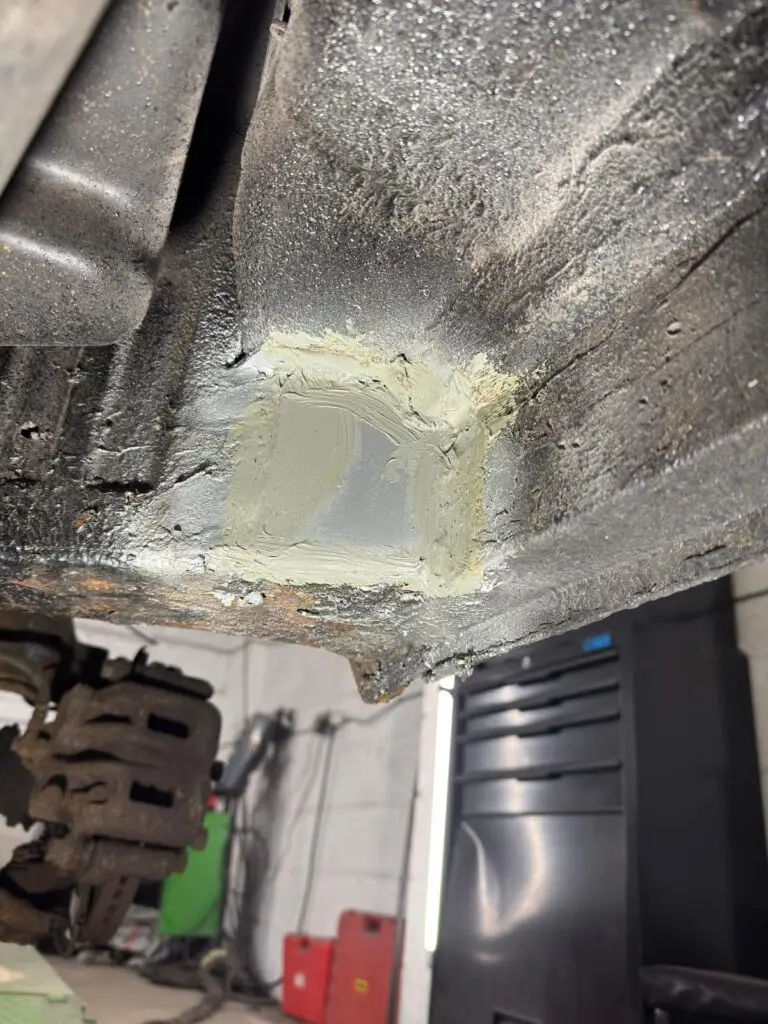

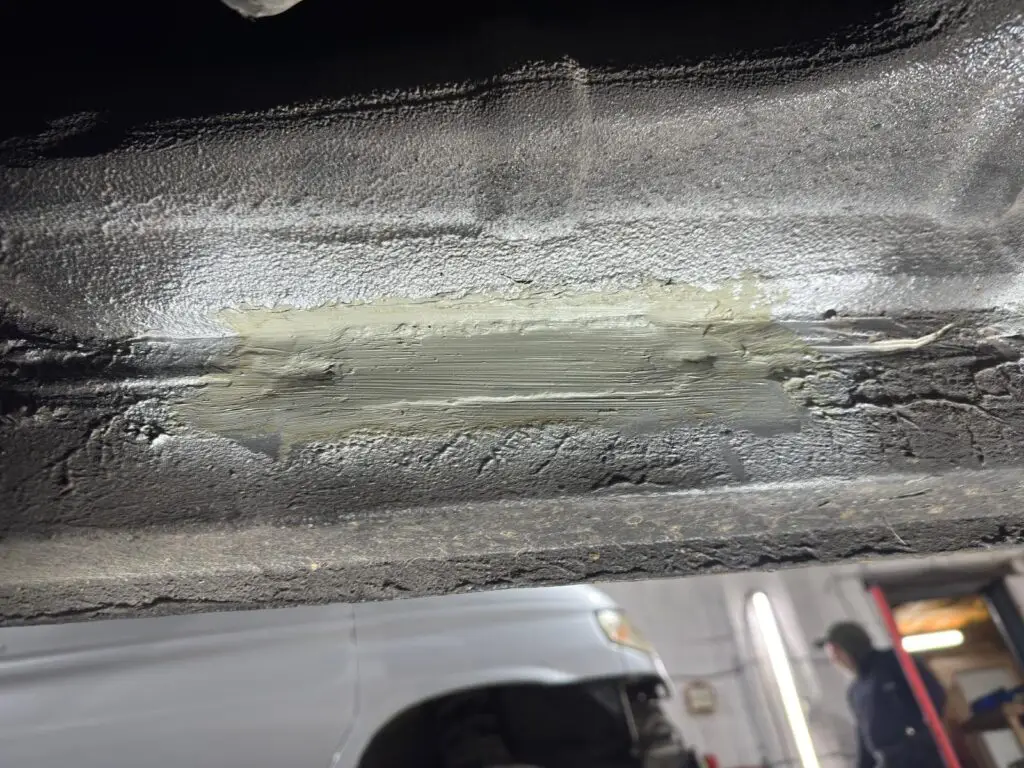

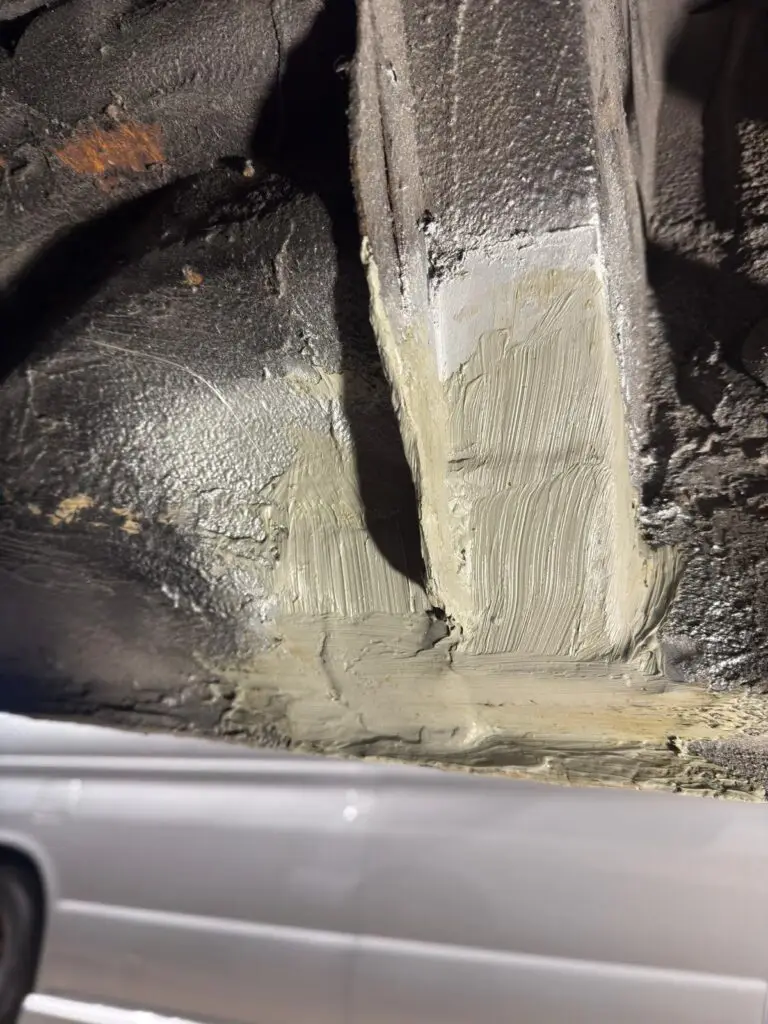

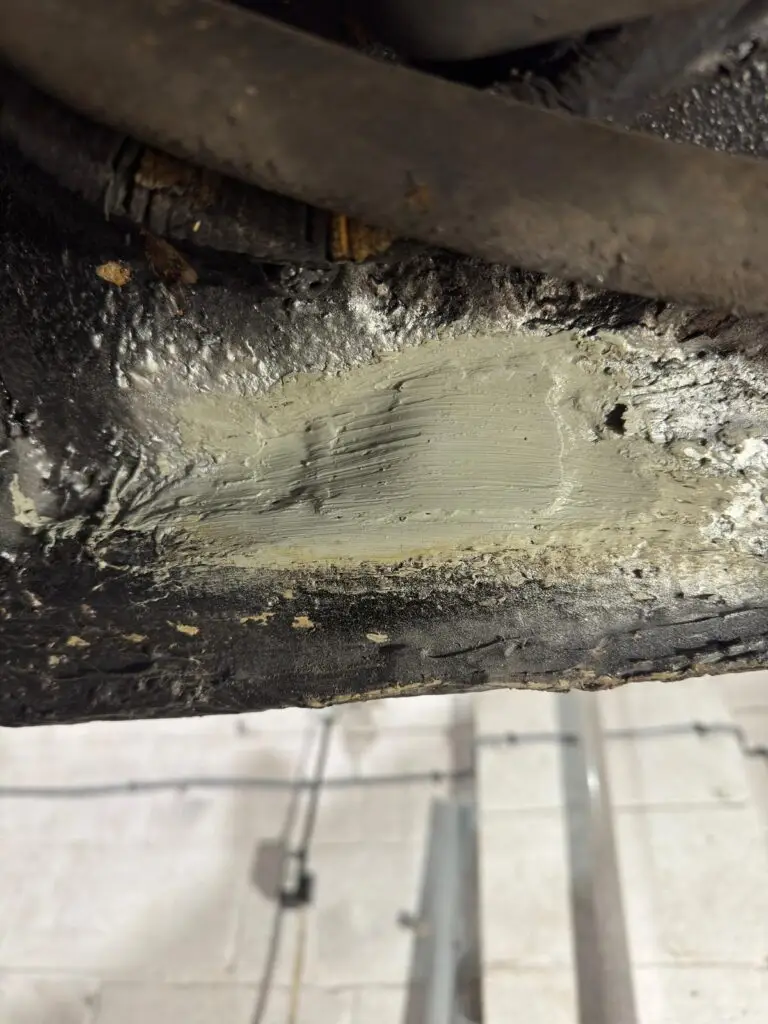

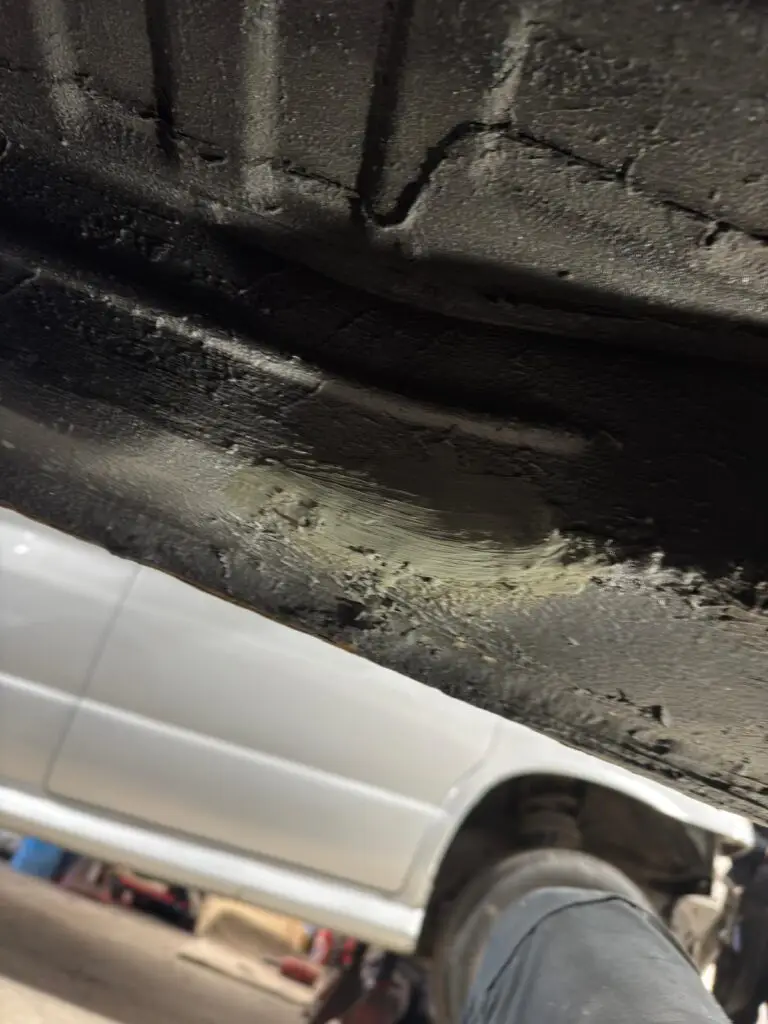

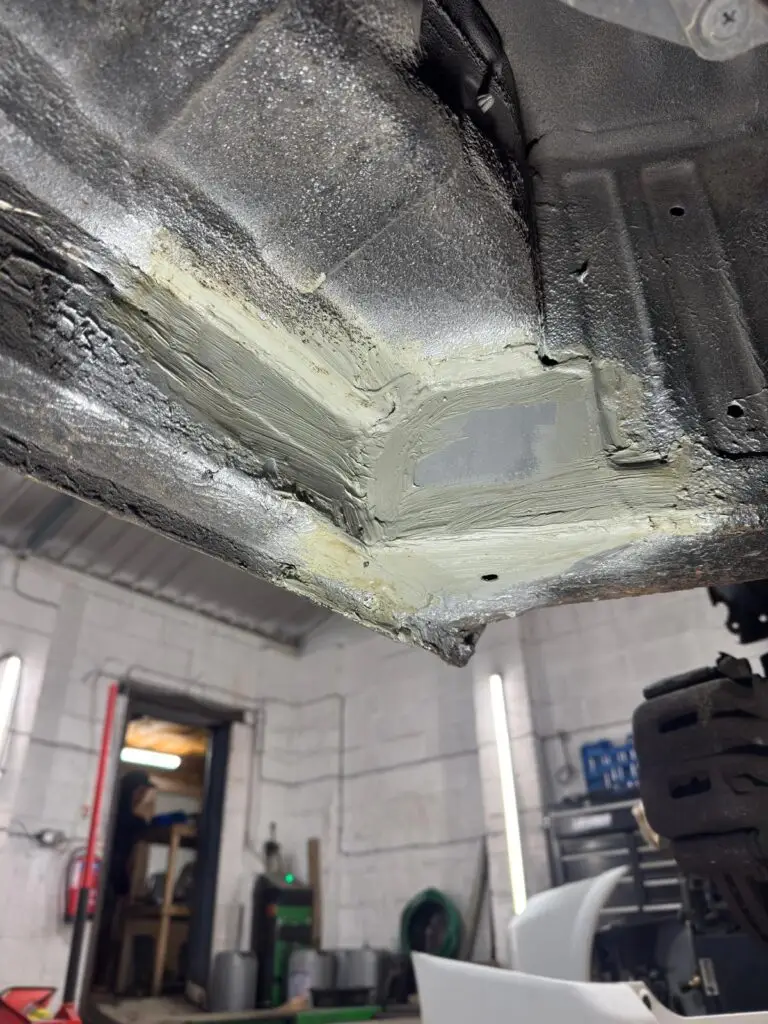

With the welding and mechanical work complete, we moved on to underseal protection. The underside was rubbed down and cleaned thoroughly. Suspension parts were treated and finished. A fresh protective coating was applied to seal all the new work and keep corrosion from returning.
For a van that had suffered this much rust, proper protection was essential. This underseal will help ensure it does not face the same fate again.
A New Look for a New Life

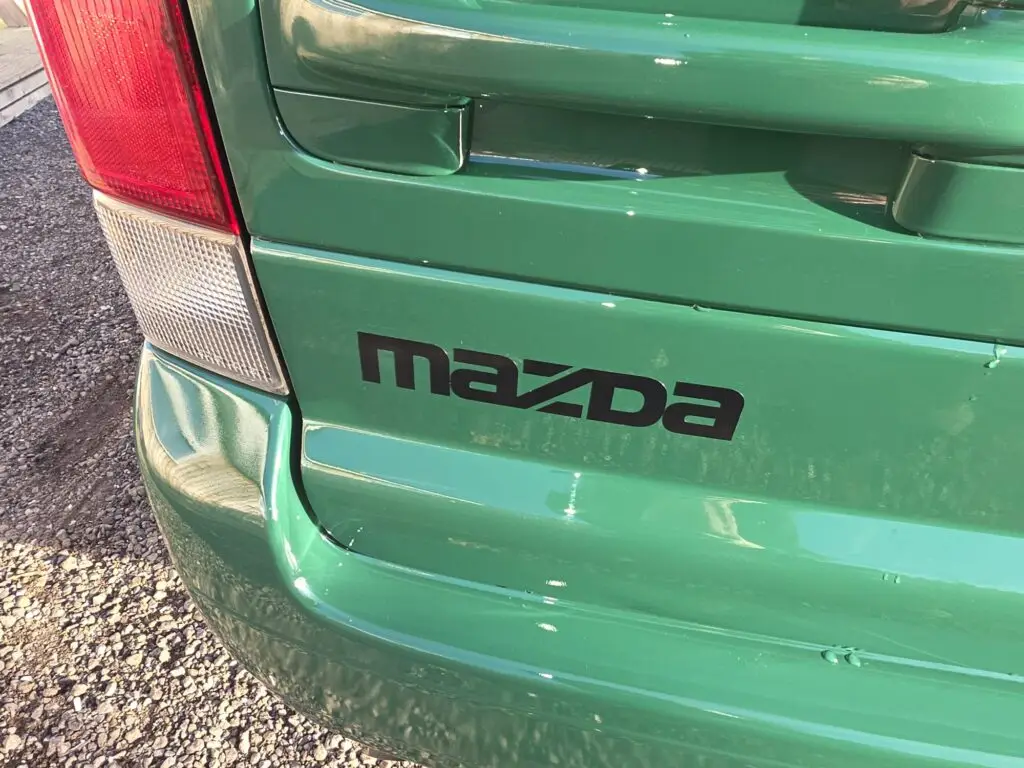

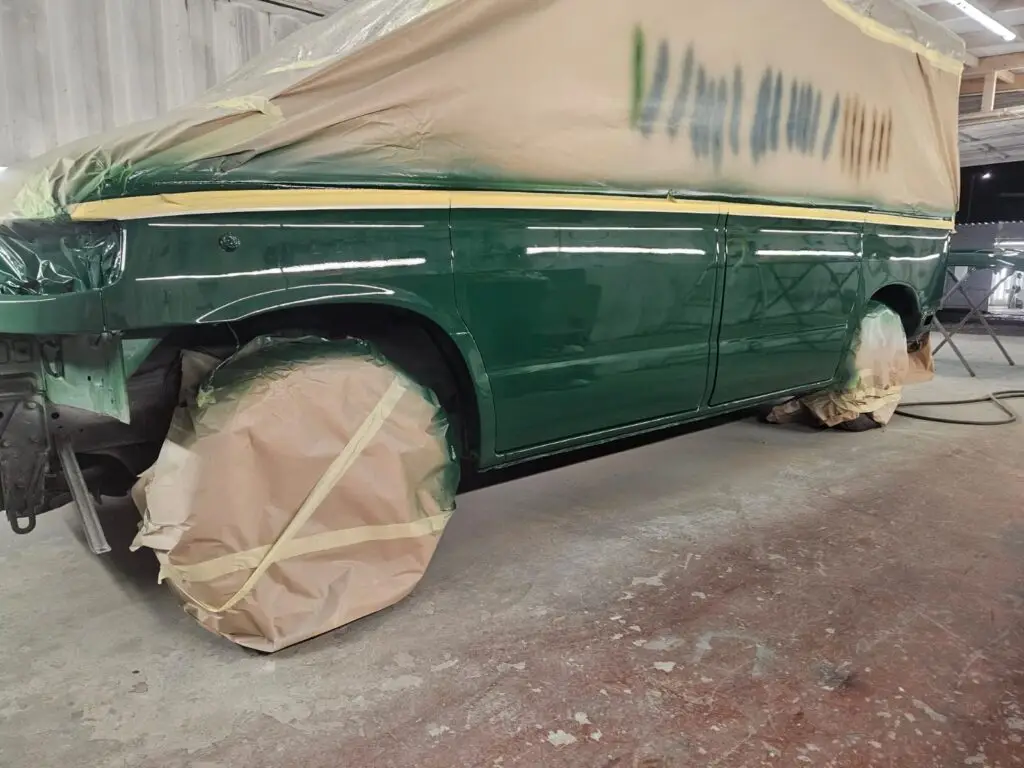

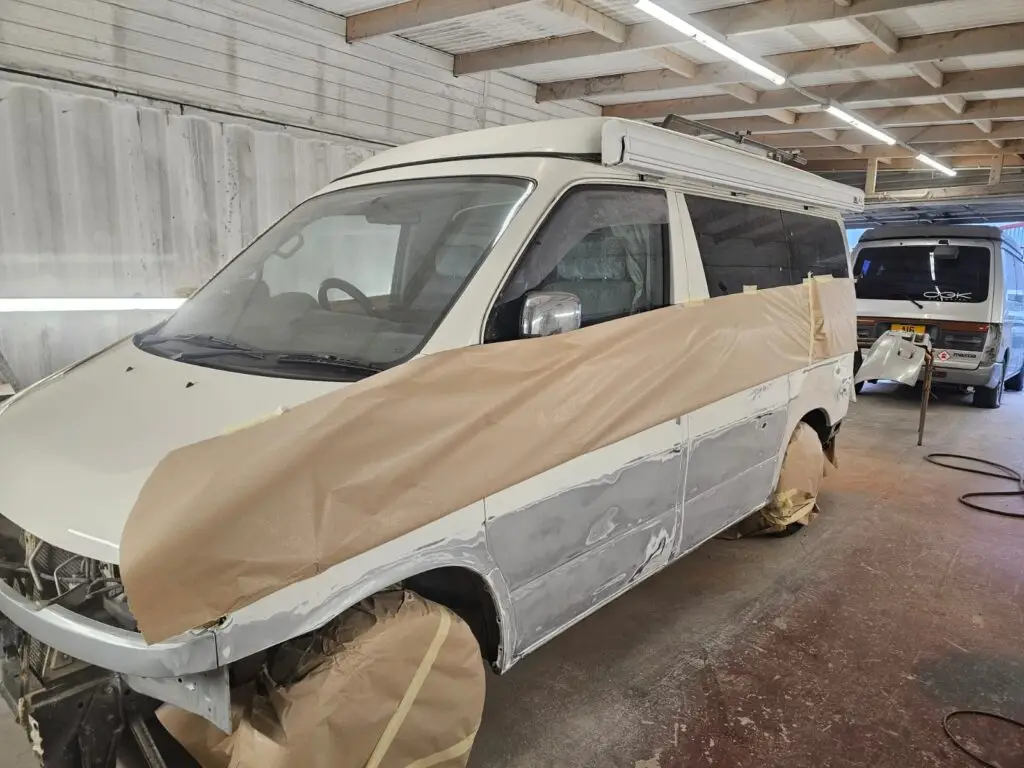

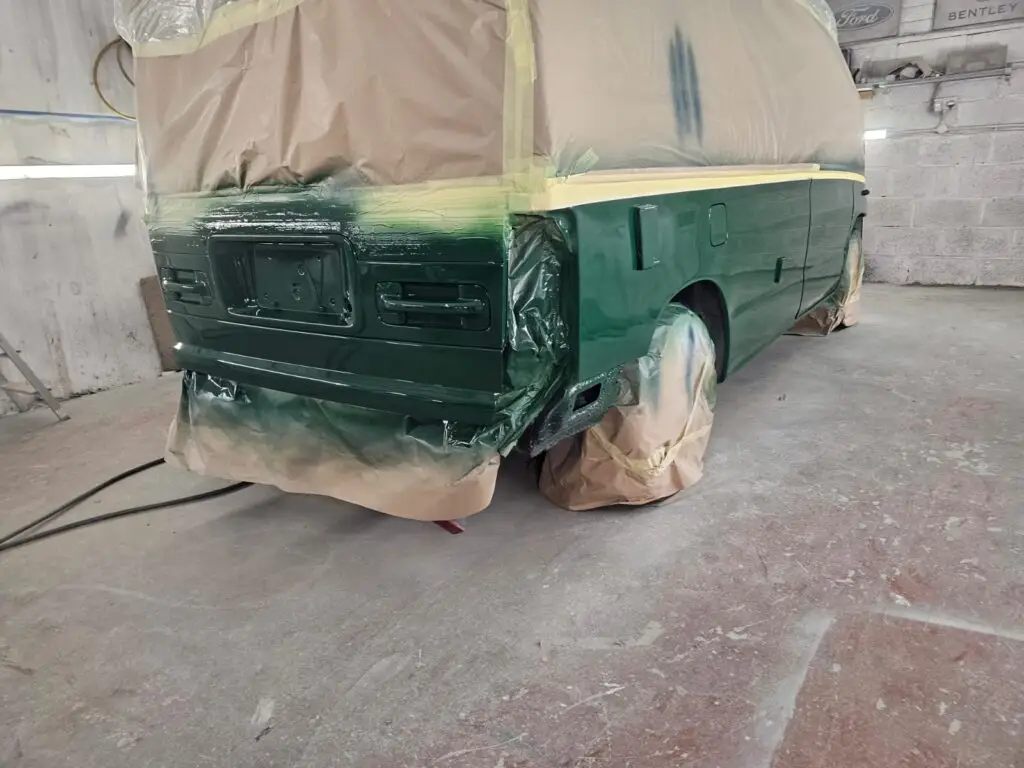

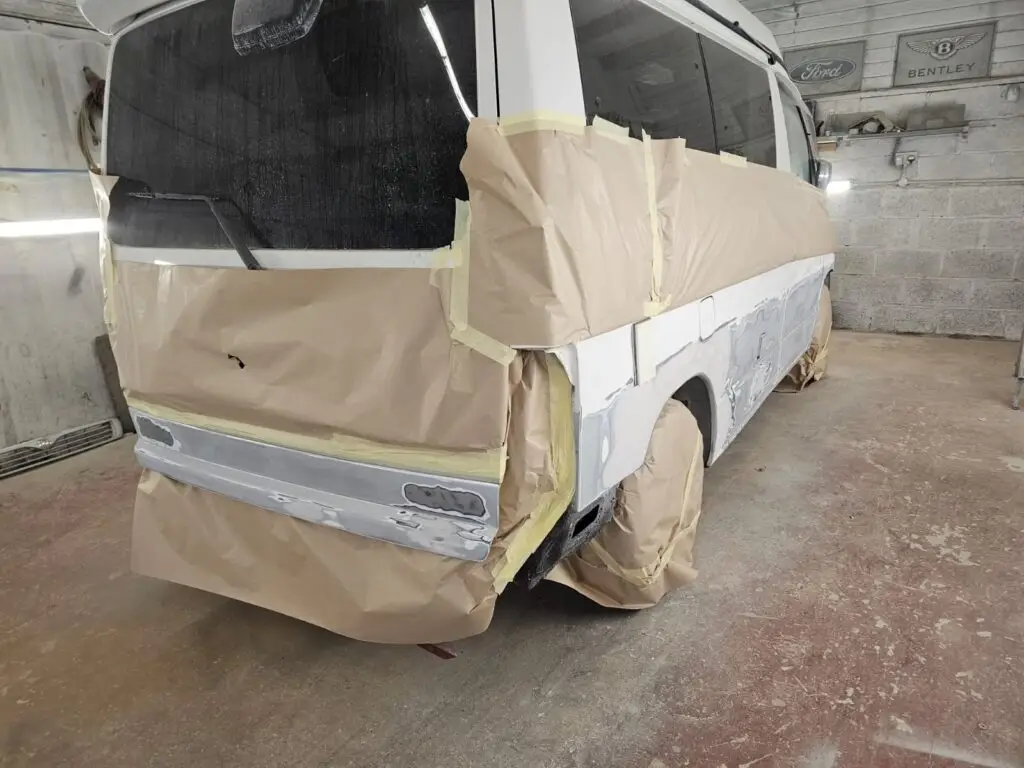

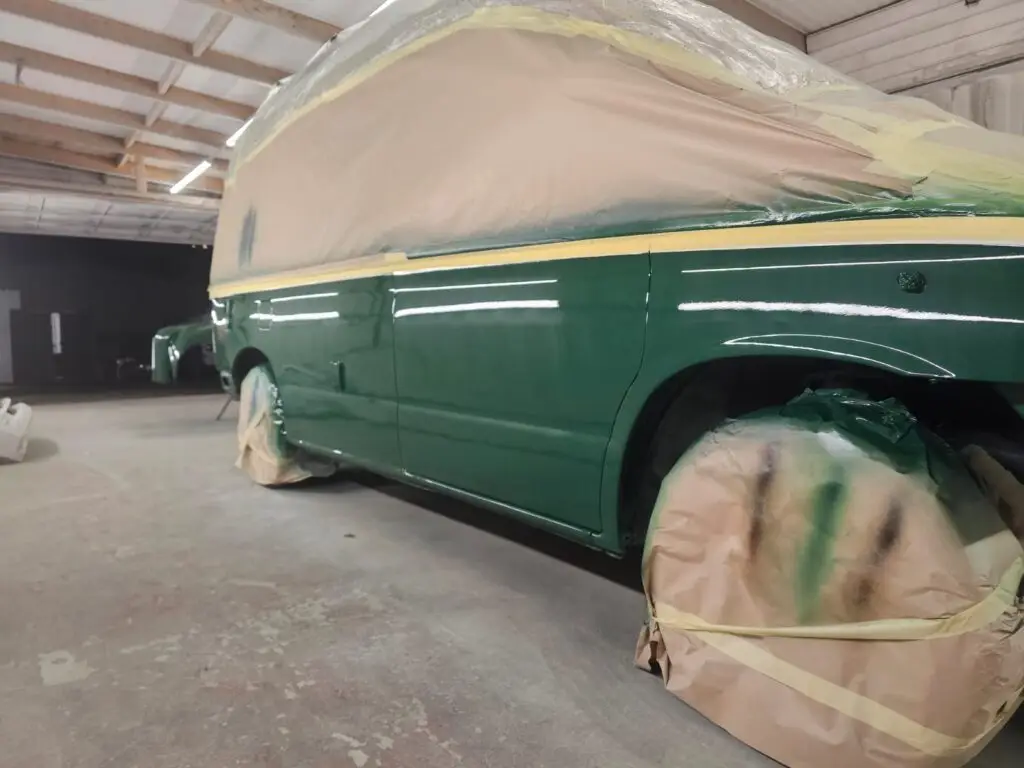

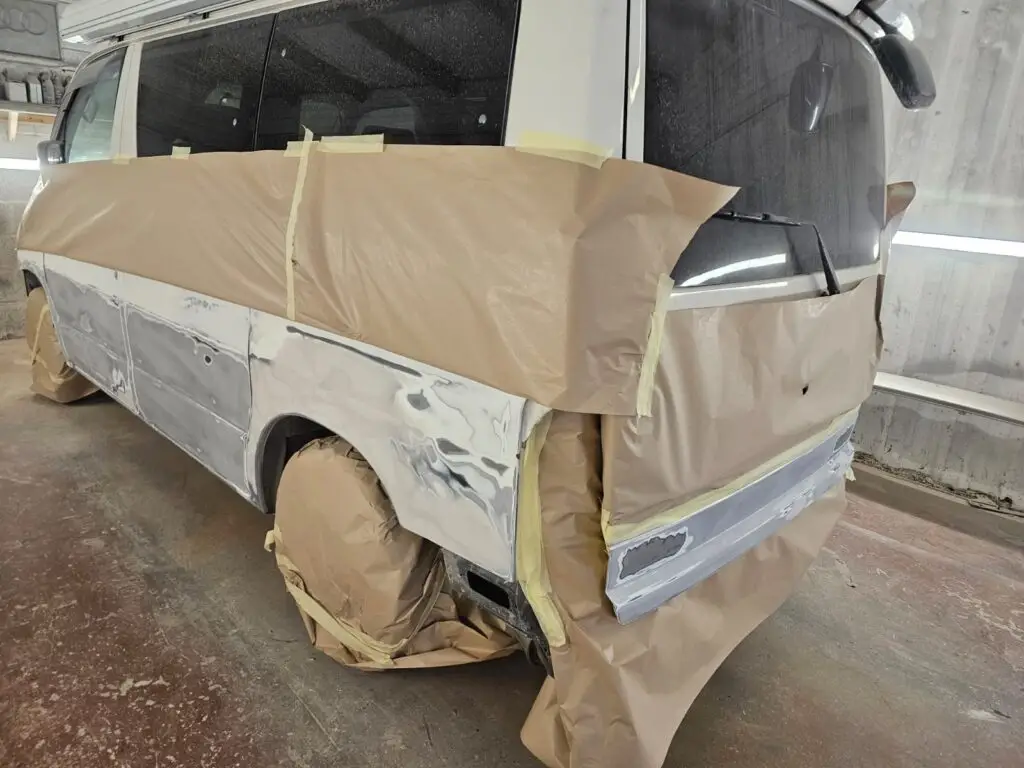

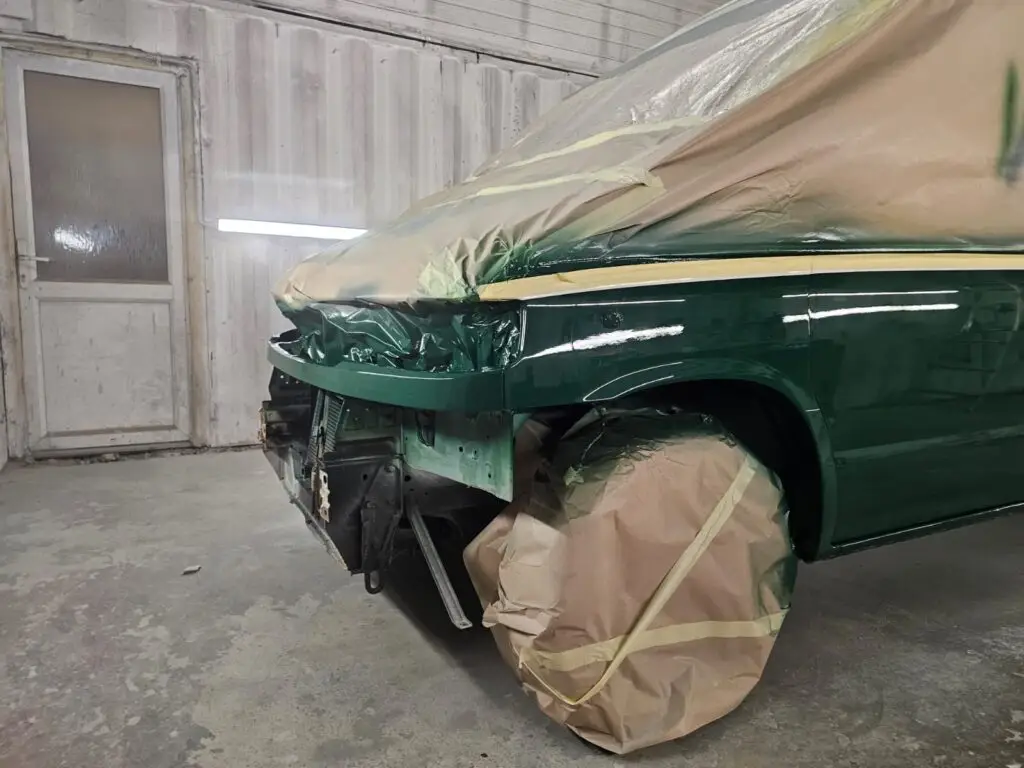

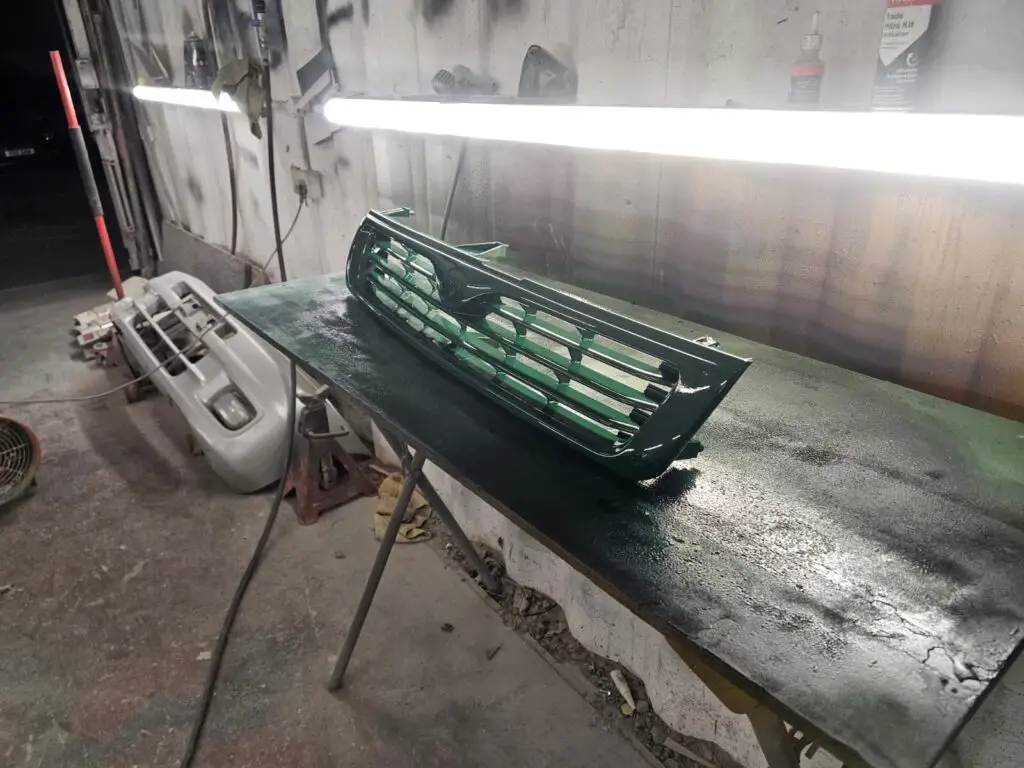

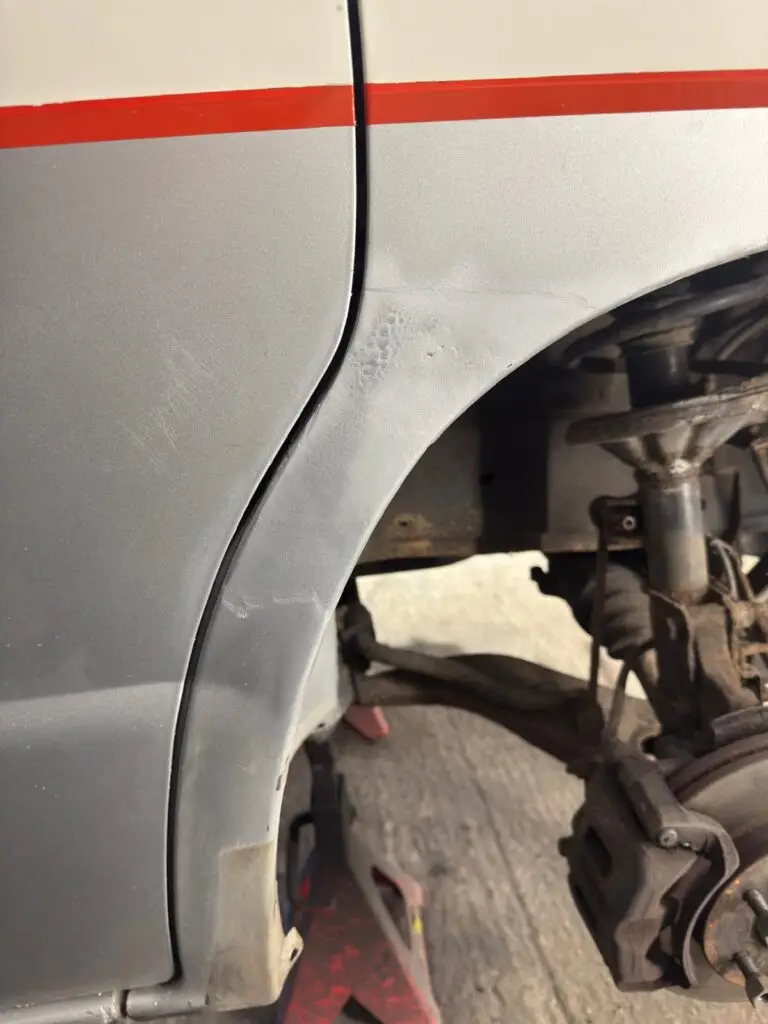

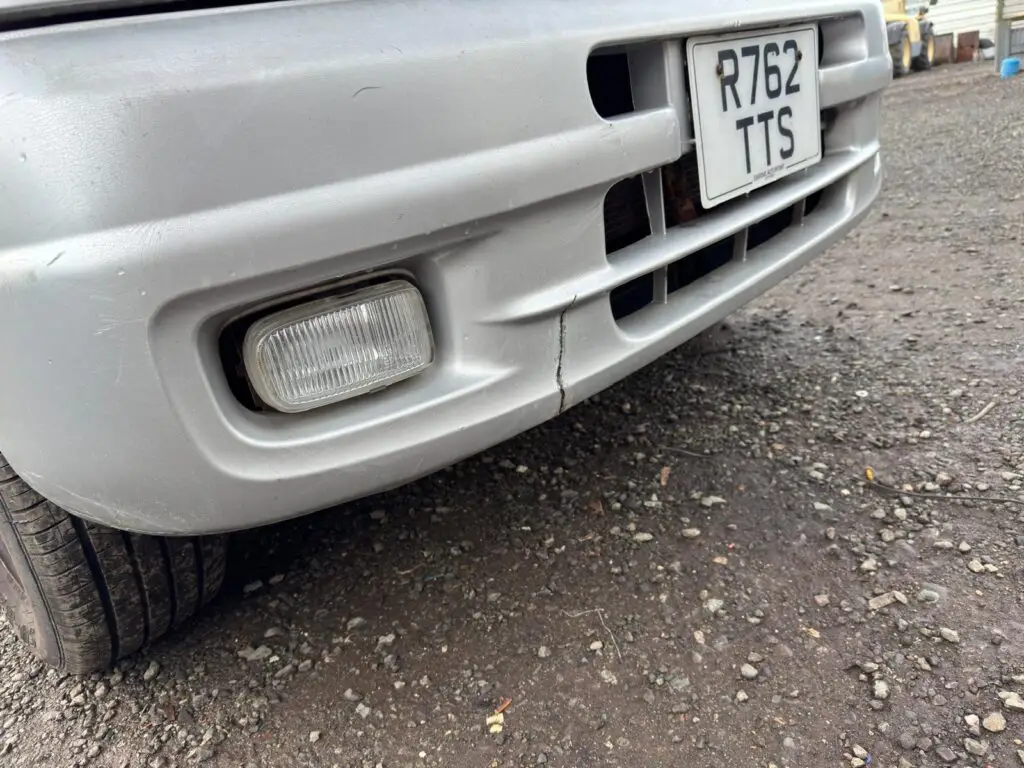

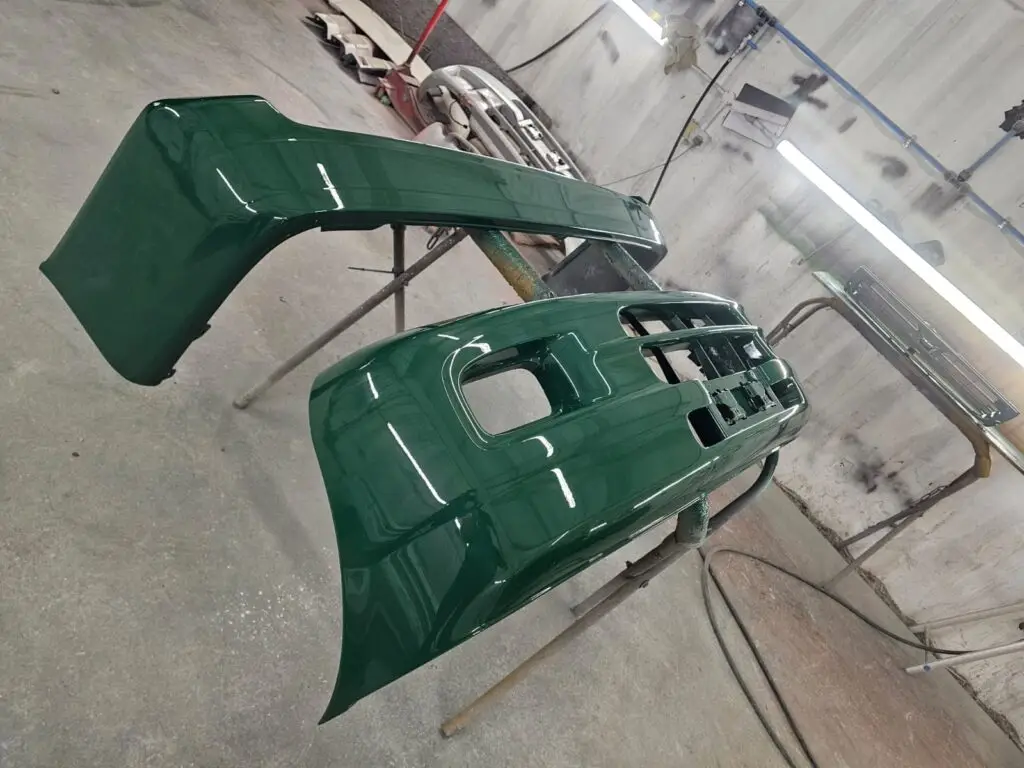

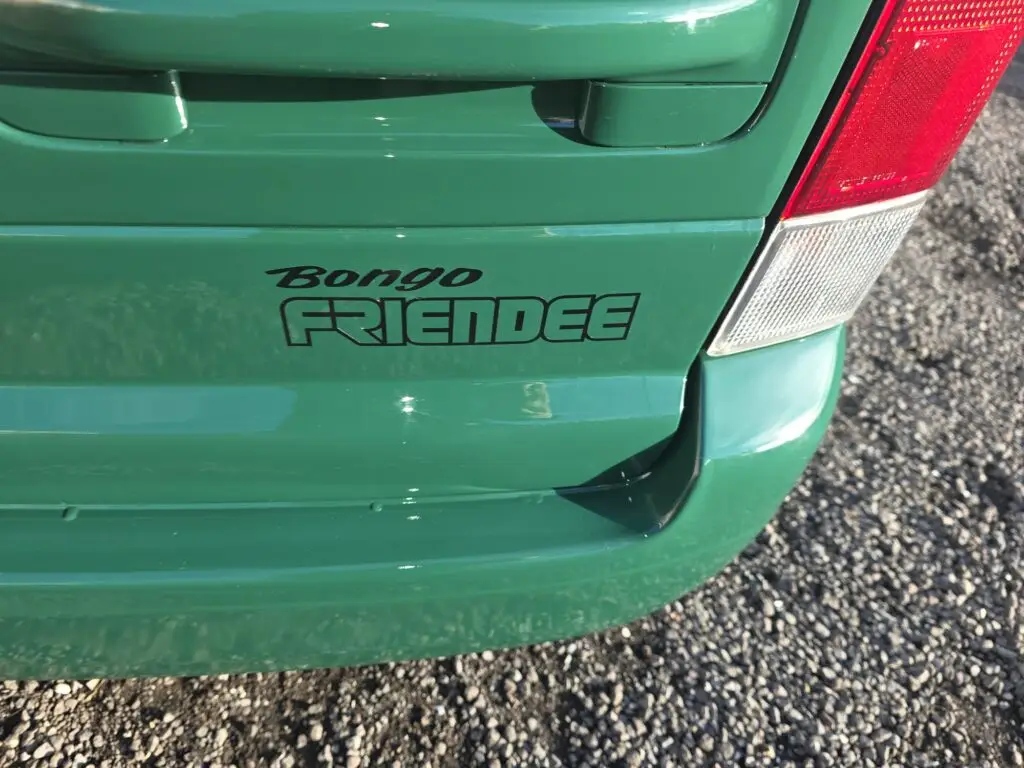

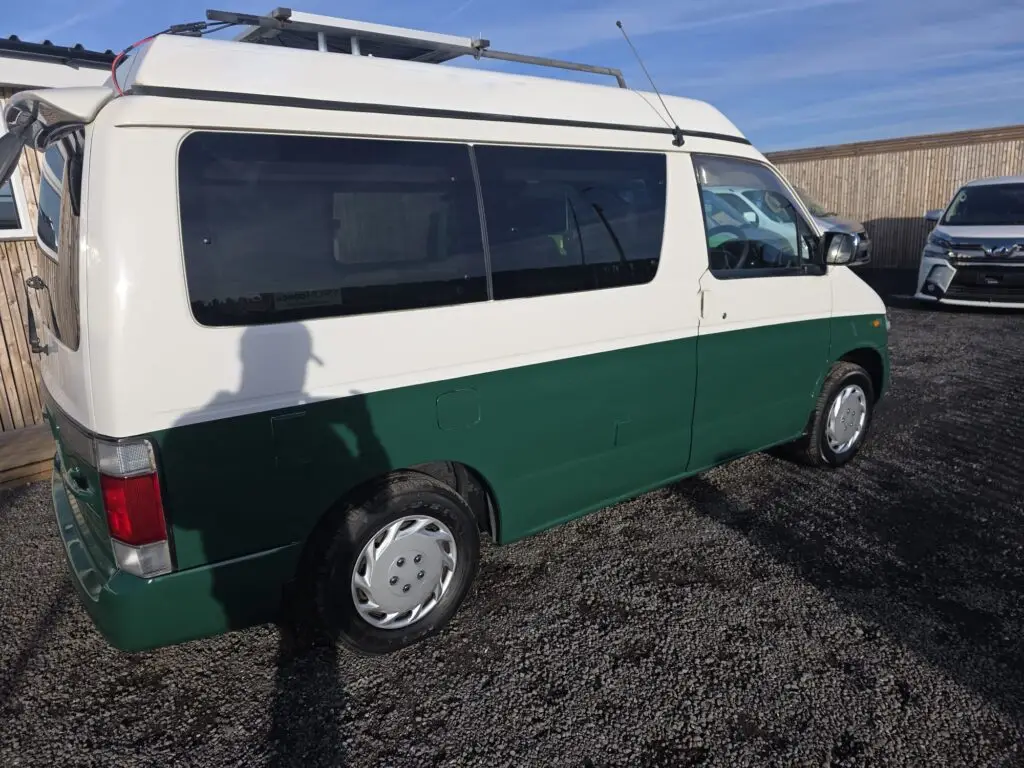

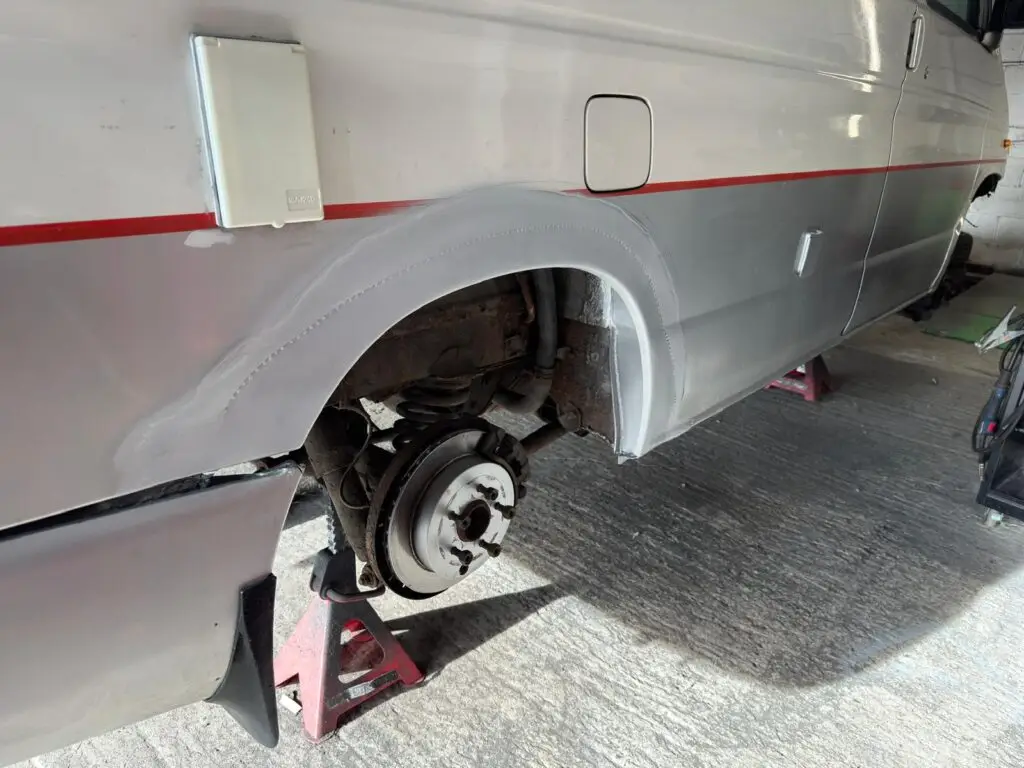

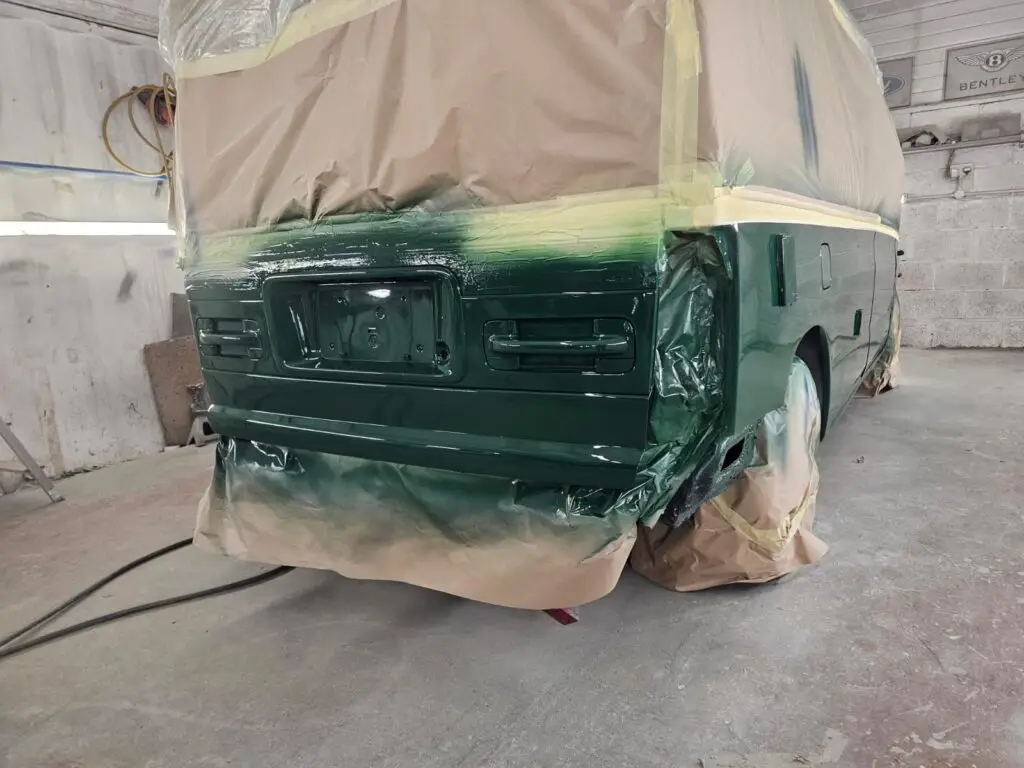

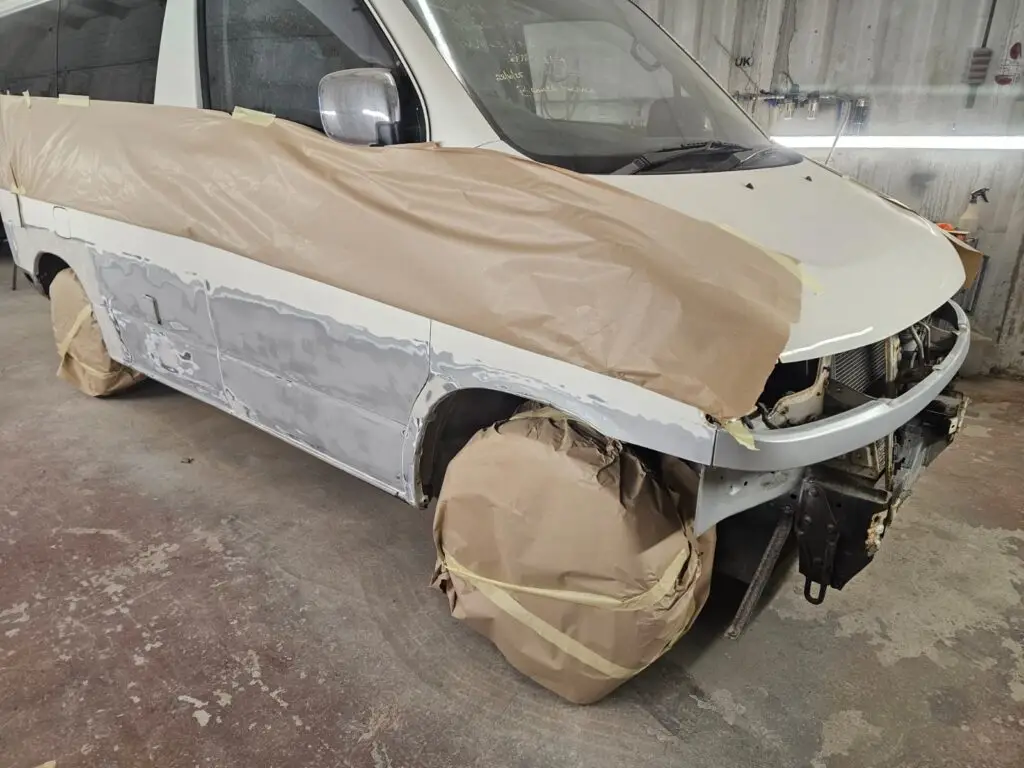

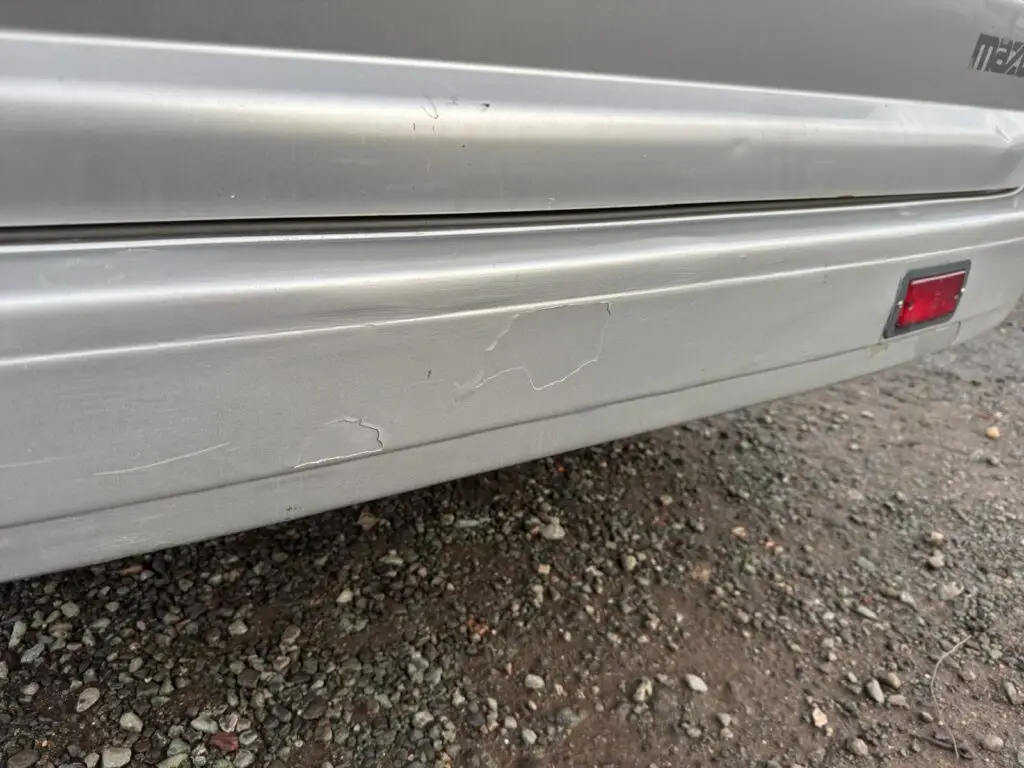

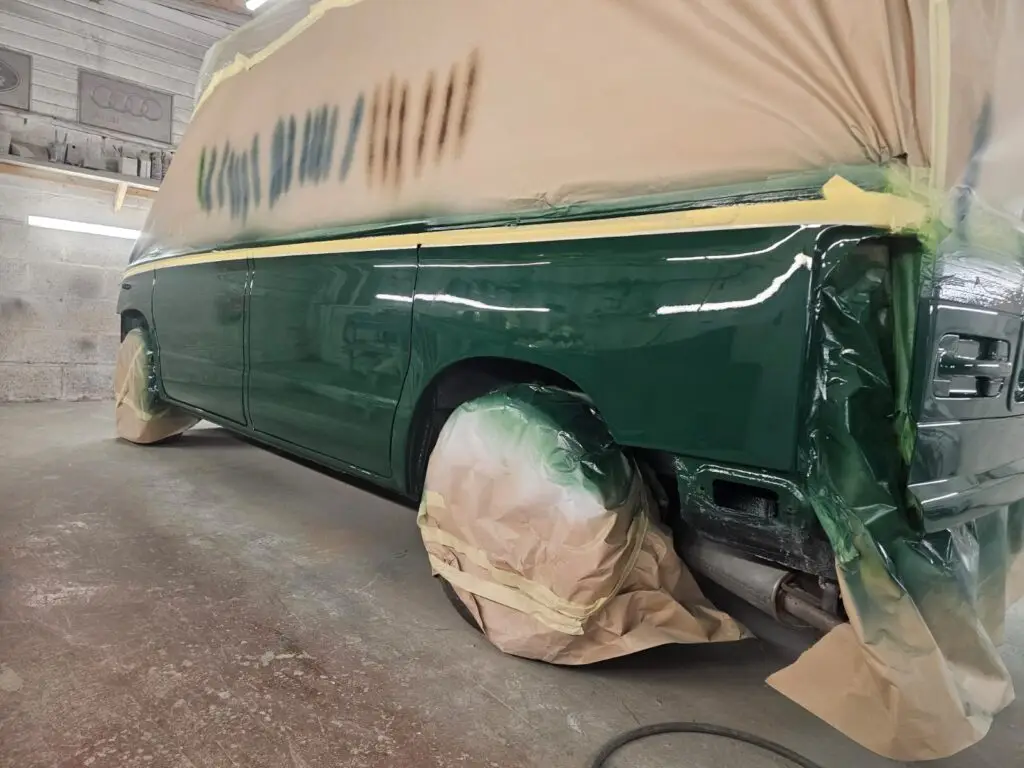

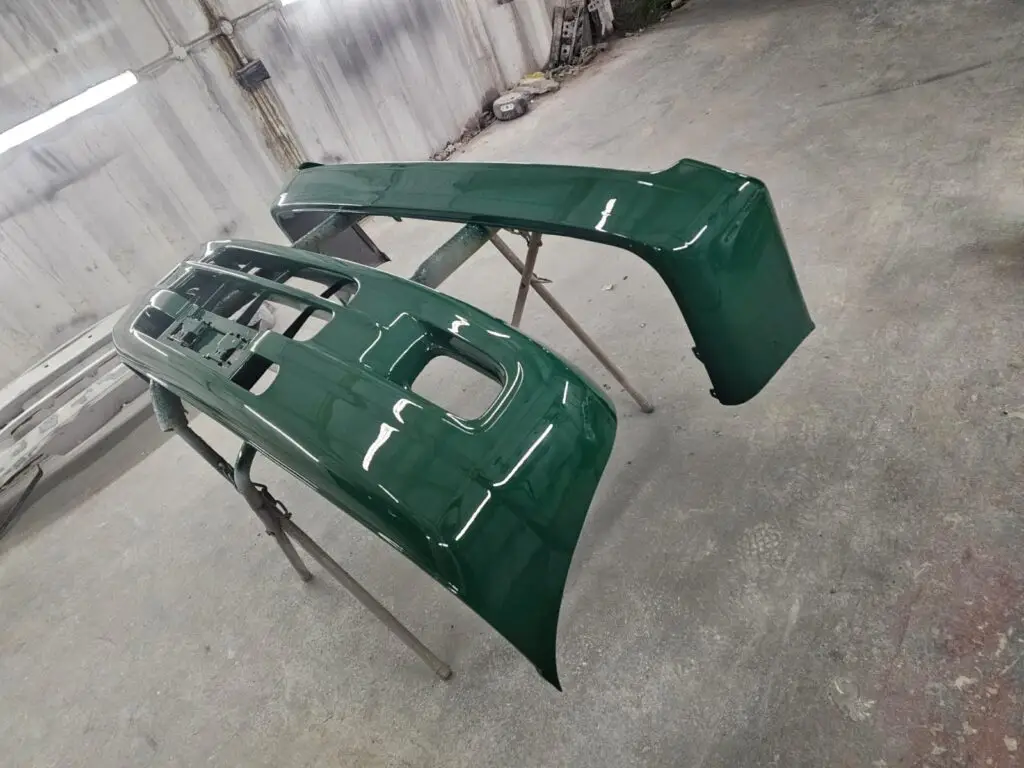

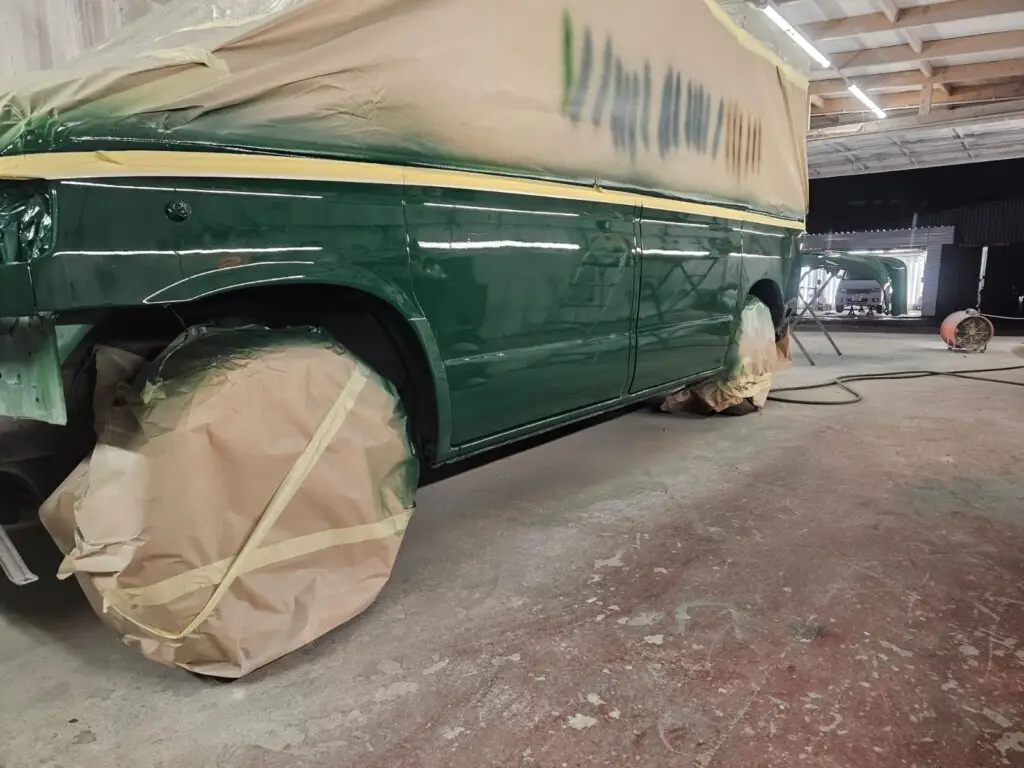

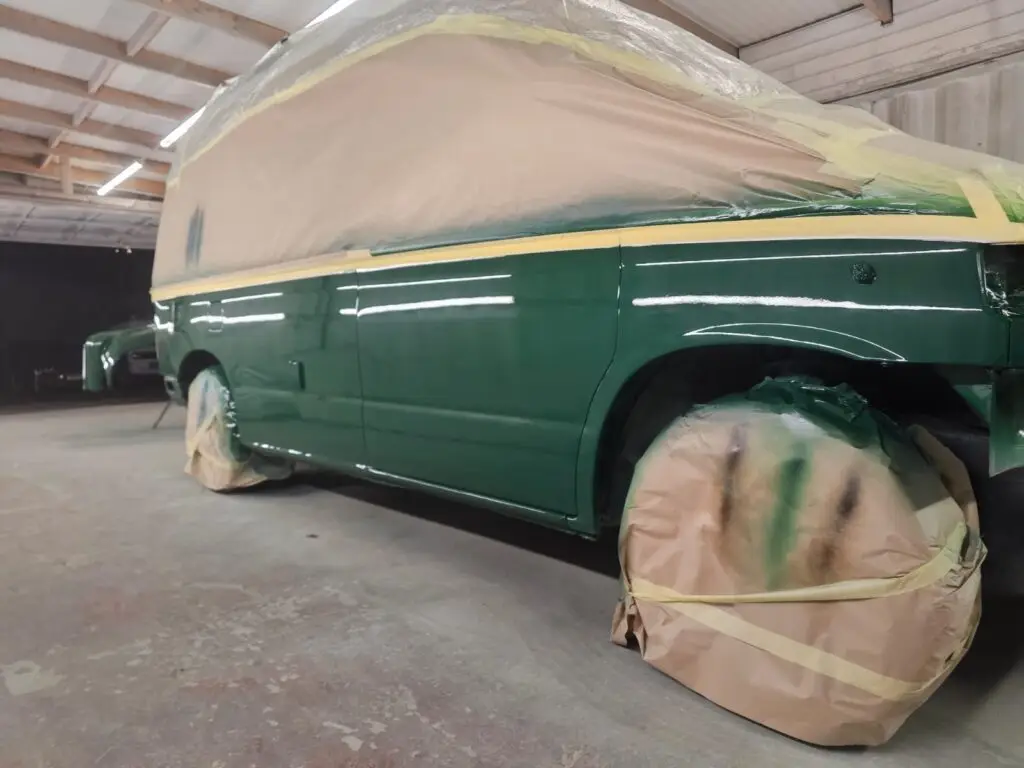

As part of the restoration, the van entered our Bronze Restoration stage. The lower half was prepared for a fresh respray. The front and rear bumpers were refinished. Repaired panels were smoothed and painted, giving the Bongo a clean, renewed look that reflected the extensive work beneath the surface.
Seeing colour return to a van that was once moments from being scrapped is always a turning point. It was no different here. The transformation was striking.

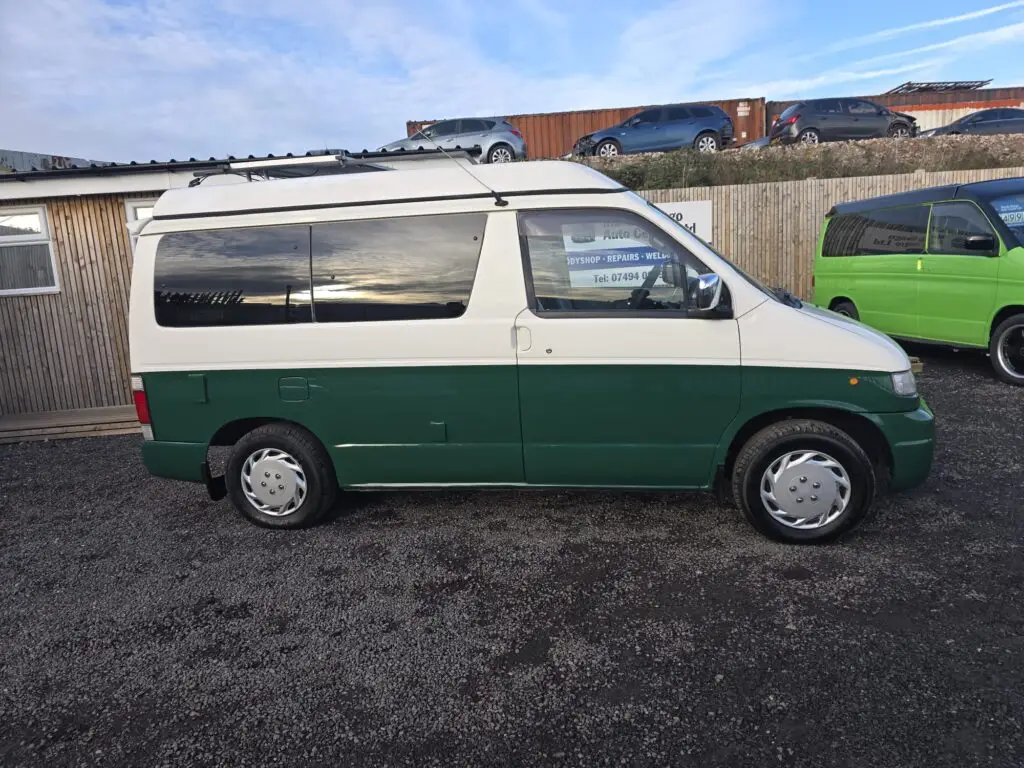

Back on Its Feet Again
Once every job was completed, the van received a full checkover. Lights, locks, switches, wiring, fluid levels and safety systems were checked and corrected. The final detailing brought everything together.

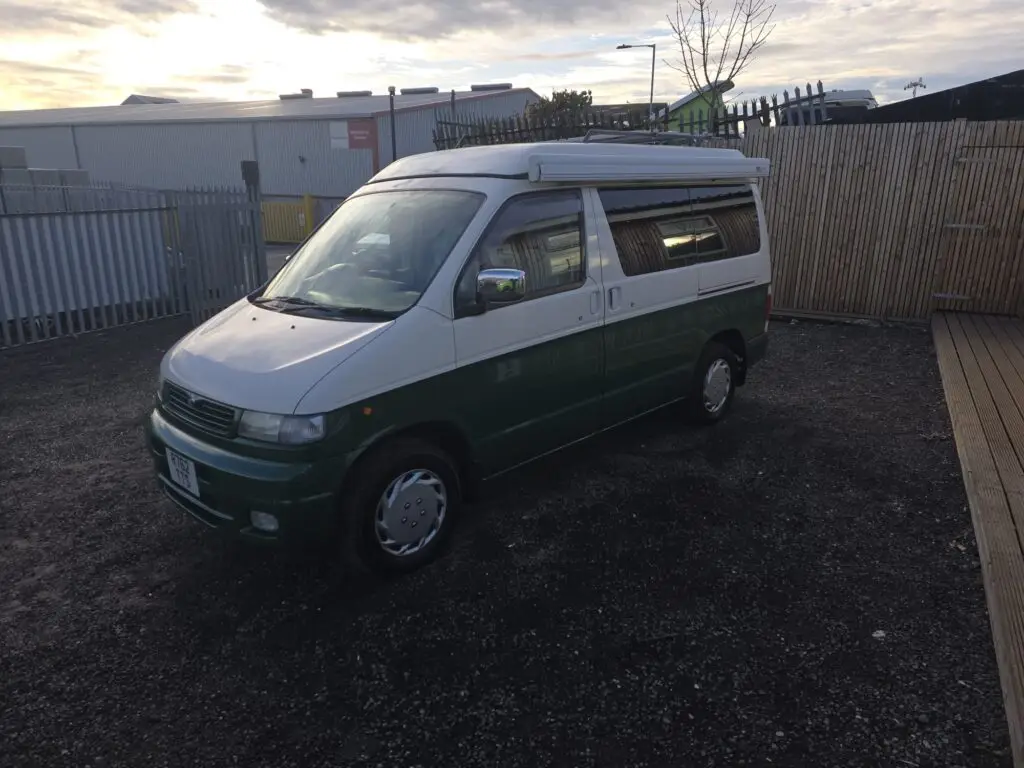

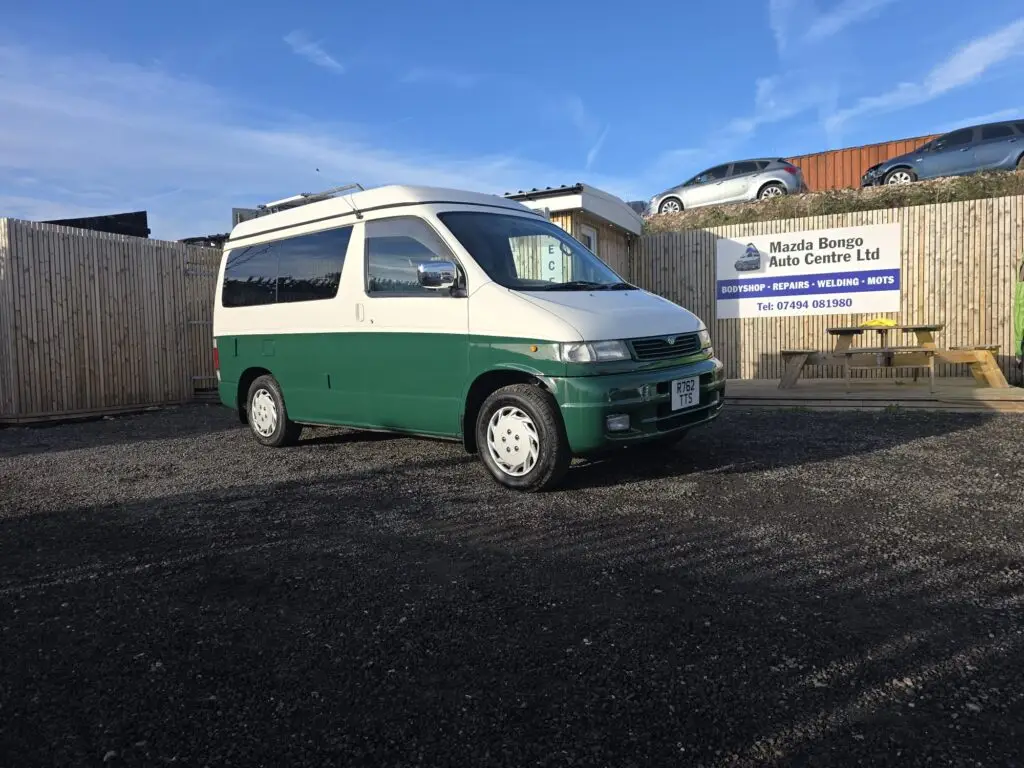

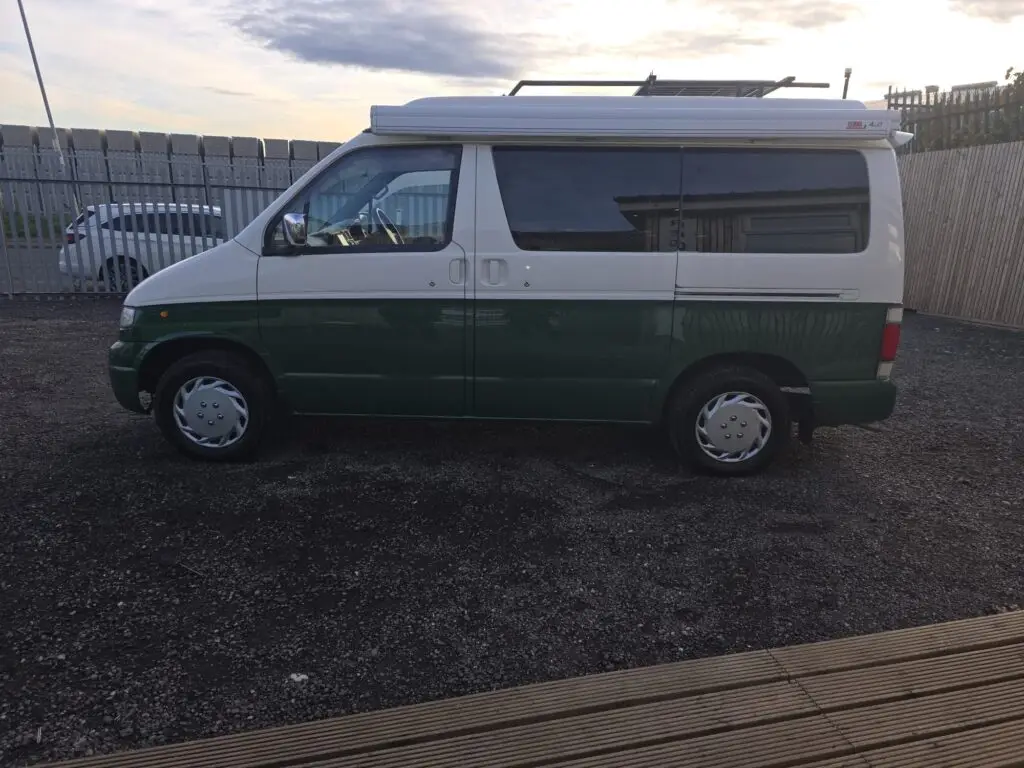

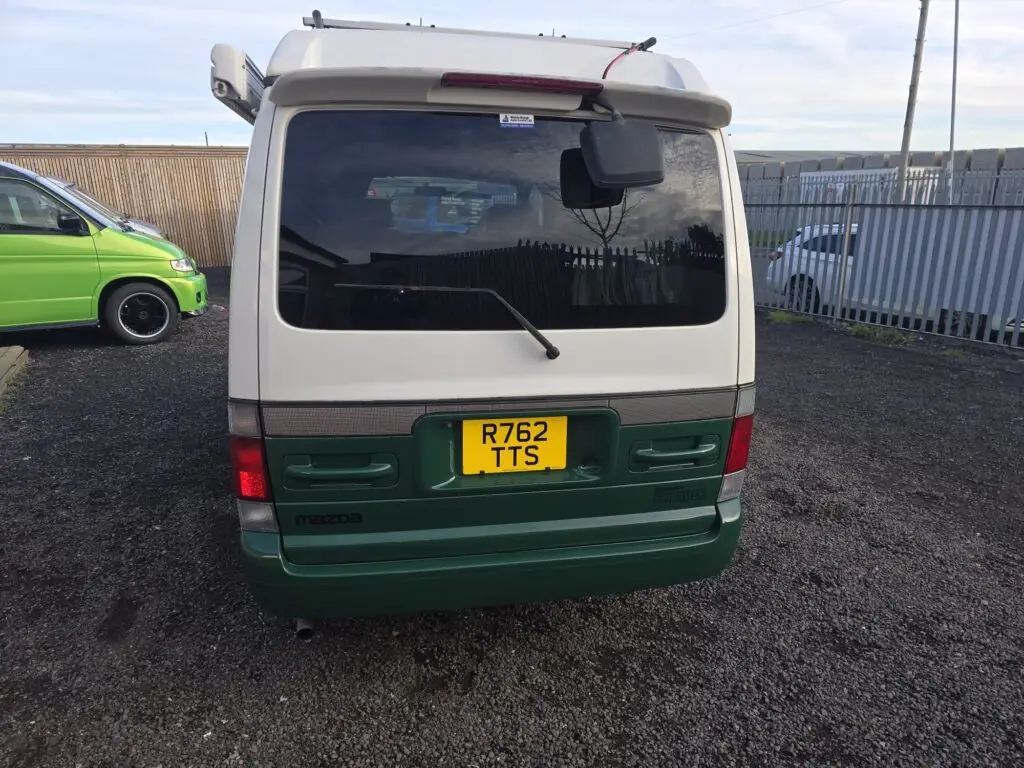

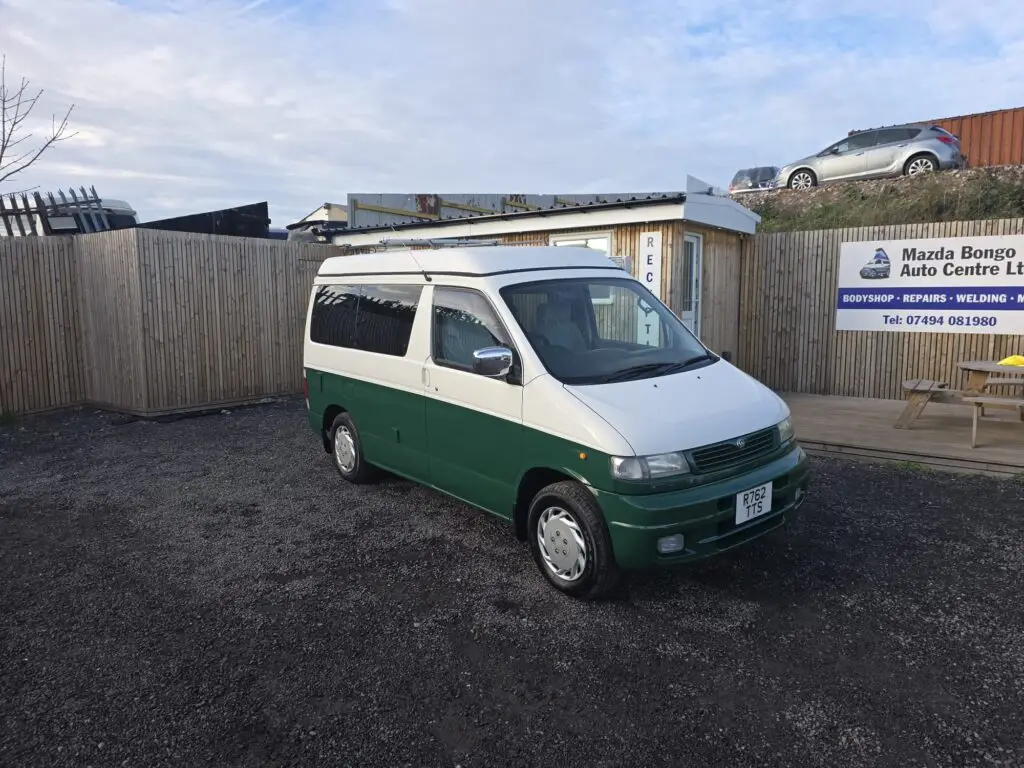

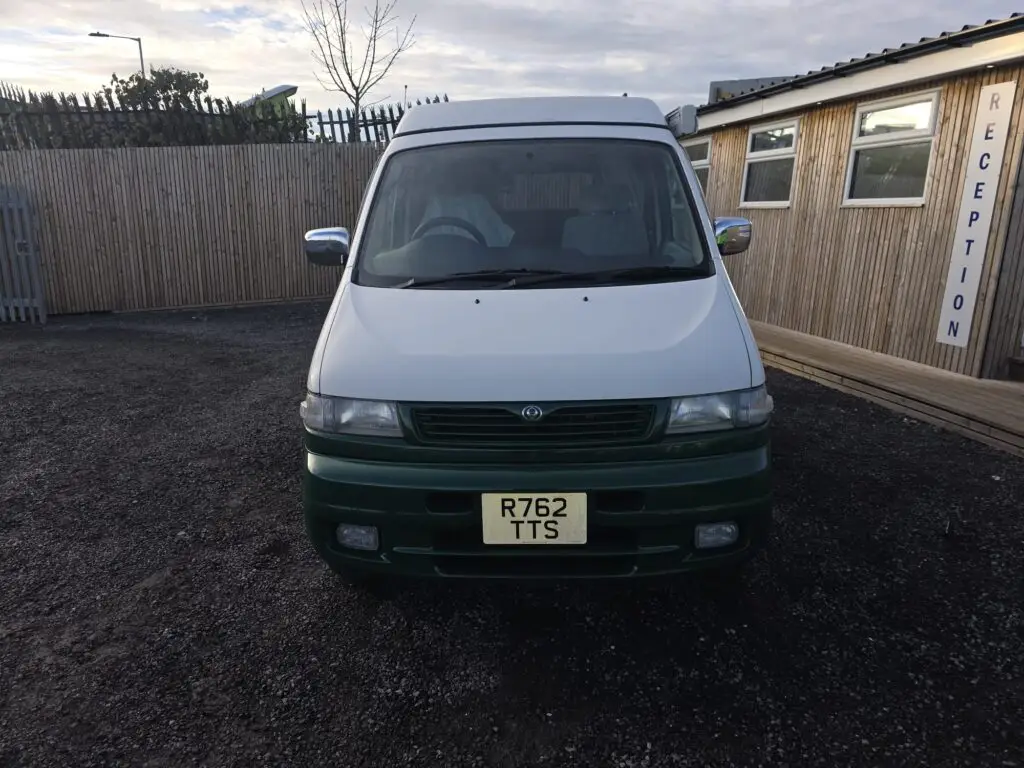

When the owner returned, the reaction said everything. They had brought in a van that was on its last legs. They collected a van that looked safe, strong and ready for many more years on the road.
This restoration was more than a repair. It was the recovery of a van that mattered deeply to its owner. And now, it has a future again.
